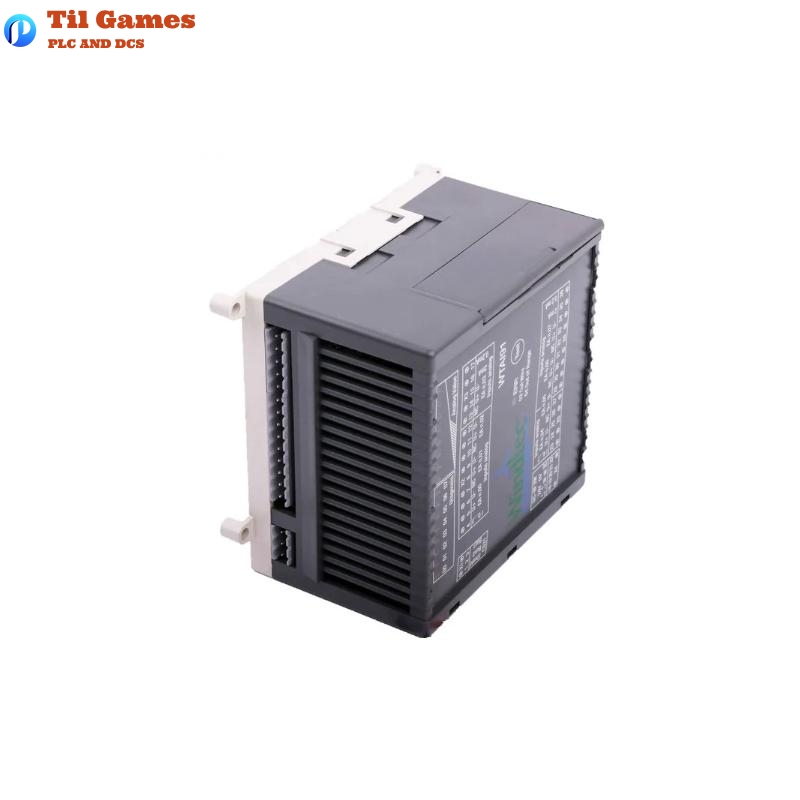

Technical Specifications
| Parameter | Description |
|---|---|
| Product Type | Analog Input Module |
| Model Number | 07AI91 WT91 GJR5251600R4202 |
| Number of Analog Inputs | 8 (configurable in pairs) |
| Signal Types Supported | ±10 V, ±5 V, ±500 mV, ±50 mV, 0…20 mA, 4…20 mA, Pt100, Pt1000, TC (J, K, S) |
| Resolution | 12-bit + sign |
| Supply Voltage | 24 V DC |
| Current Consumption | Max. 0.15 A |
| Power Dissipation | Max. 3 W |
| Permissible Operating Temperature | 0…55 °C |
| Protection Against Reverse Polarity | Yes |
| Measuring Range (Voltage Inputs) | ±10 V, ±5 V, ±500 mV, ±50 mV |
| Input Resistance (Voltage Inputs) | > 1 MΩ |
| Measuring Range (Current Inputs) | 0…20 mA, 4…20 mA (requires external 250 Ω shunt) |
| Evaluation Range (Pt100 / Pt1000) | -50 to +400 °C |
| Evaluation Range (Thermocouples) | J: 0…1200 °C, K: 0…1372 °C, S: 0…1600 °C |
| Error (Pt100 / Pt1000) | ±0.5 % FS (Pt100), ±1.0 % FS (Pt1000) |
| Error (Thermocouples) | ±0.5 % FS |
| Update Time (per channel) | 100 ms (50/60 Hz suppression), 30 ms (no suppression), 150 ms (TC input) |
| Line Frequency Suppression | Configurable: 50 Hz, 60 Hz, or None |
| Electrical Isolation | Between CS31 system bus and analog section |
| Mounting Method | DIN rail (EN 50022-35), or 4 x M4 screws |
| Wiring Method | Removable terminal blocks with screw terminals |
| Conductor Cross-section | Max. 2.5 mm² |
| System Bus Interface | CS31, EIA RS-485 |
| Diagnostic Indicators | 17 LEDs total (Channel status and error display) |
| Module Address Configuration | DIL Switch under housing cover |
| Cooling Method | Natural convection (ensure free airflow) |
| Installation Position | Vertical (terminals facing up/down) |
| Dimensions (W x H x D) | 120 × 140 × 85 mm |
| Weight | 0.45 kg (450 g) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What types of signals can the ABB 07AI91 WT91 module handle?
A1: The module supports a variety of input types including voltage signals (±10 V, ±5 V, ±500 mV, ±50 mV), current signals (0…20 mA, 4…20 mA with a 250 Ω shunt), Pt100/Pt1000 RTDs, and thermocouples of types J, K, and S.
Q2: Can I connect Pt100 and Pt1000 sensors simultaneously?
A2: Yes, Pt100 and Pt1000 sensors can be operated simultaneously by assigning one type to the upper terminal bank and the other type to the lower terminal bank.
Q3: What is the resolution of the analog input values?
A3: The input resolution is 12-bit plus sign, which ensures high accuracy for analog signal acquisition.
Q4: How is error detection performed in this module?
A4: The module includes built-in diagnostics for open circuit detection, out-of-range signals, internal errors, and transmission errors. Errors are indicated via the red LED and communicated to the central unit.
Q5: What is required to measure current signals such as 4…20 mA?
A5: An external 250 Ω shunt resistor is required between input terminals to measure 4…20 mA or 0…20 mA signals using voltage input ranges.
Q6: What kind of electrical isolation is implemented?
A6: The CS31 system bus is electrically isolated from the analog input section, ensuring signal integrity and protection.
Q7: What happens if a thermocouple wire breaks?
A7: A wire break results in the numerical value -32767 being displayed and an error message is generated and transmitted over the CS31 system bus.
Q8: What should be done with unused input channels?
A8: Unused channels must be short-circuited. For Pt100 and Pt1000 channels, it is recommended to bridge them with 120 Ω and 1200 Ω resistors respectively to avoid underflow error messages.
