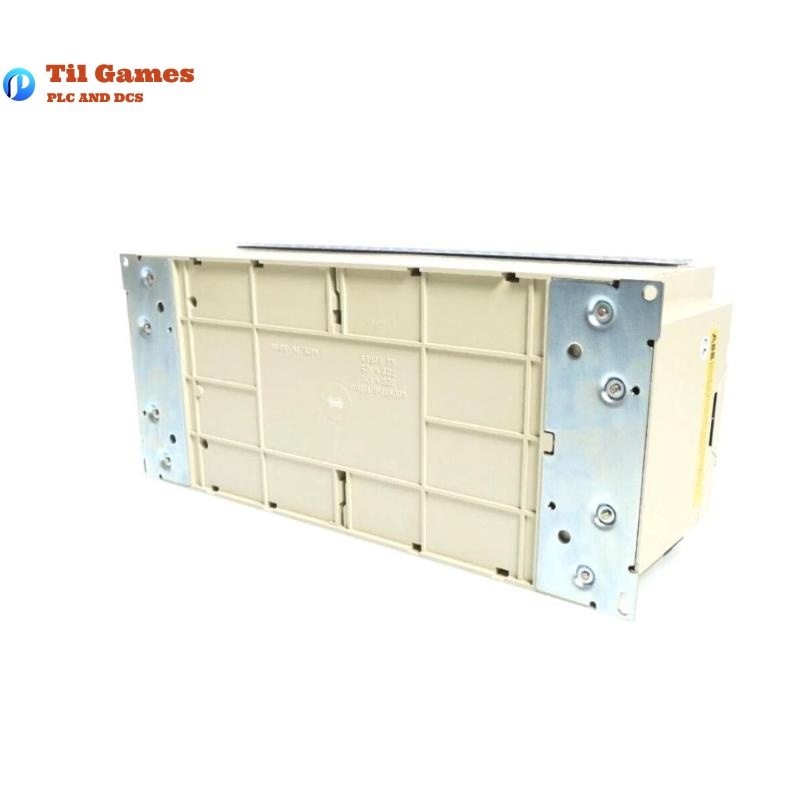

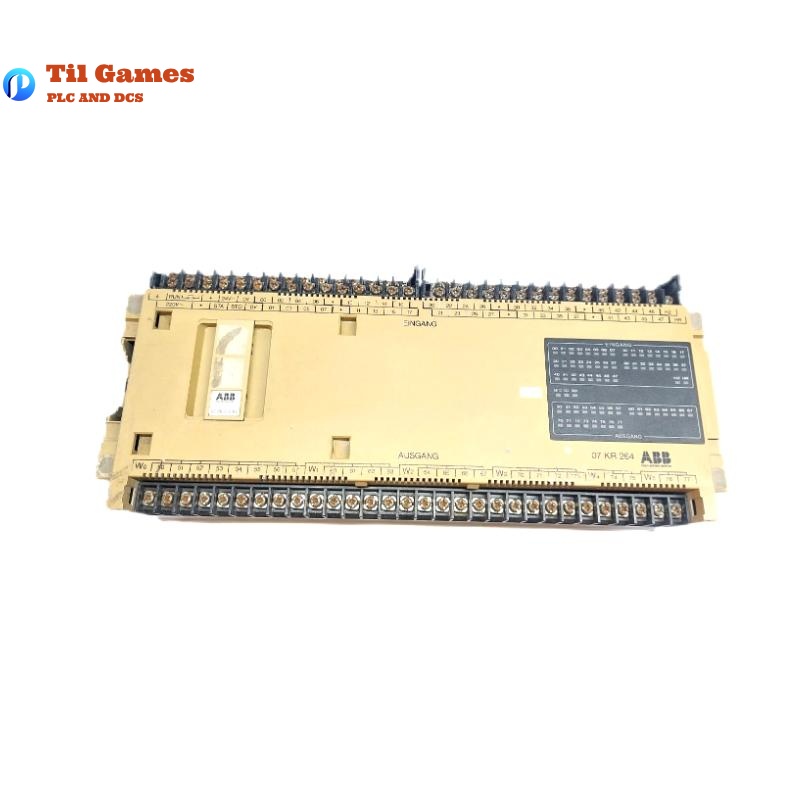

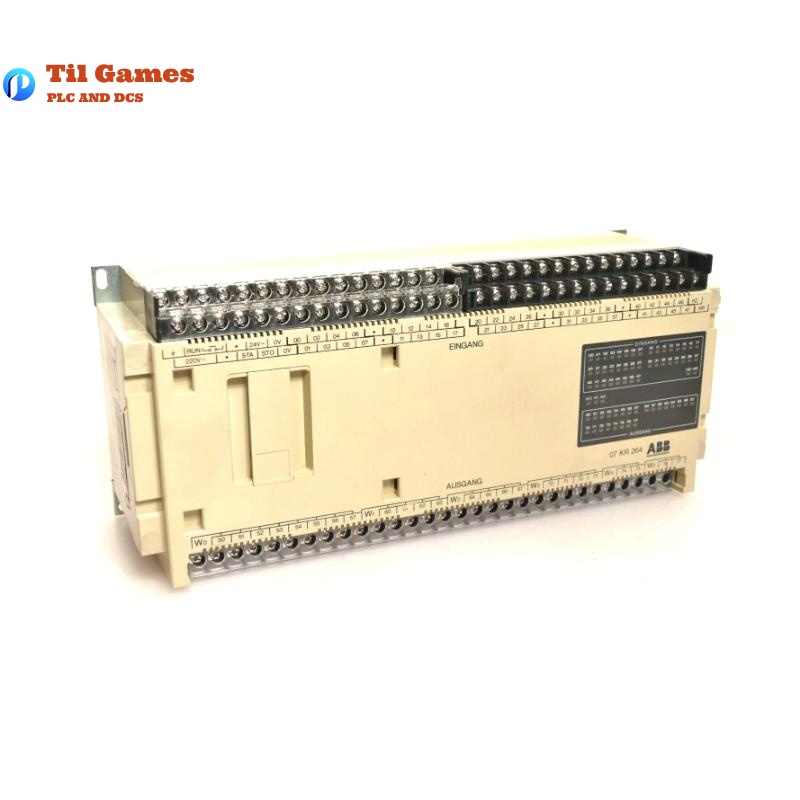

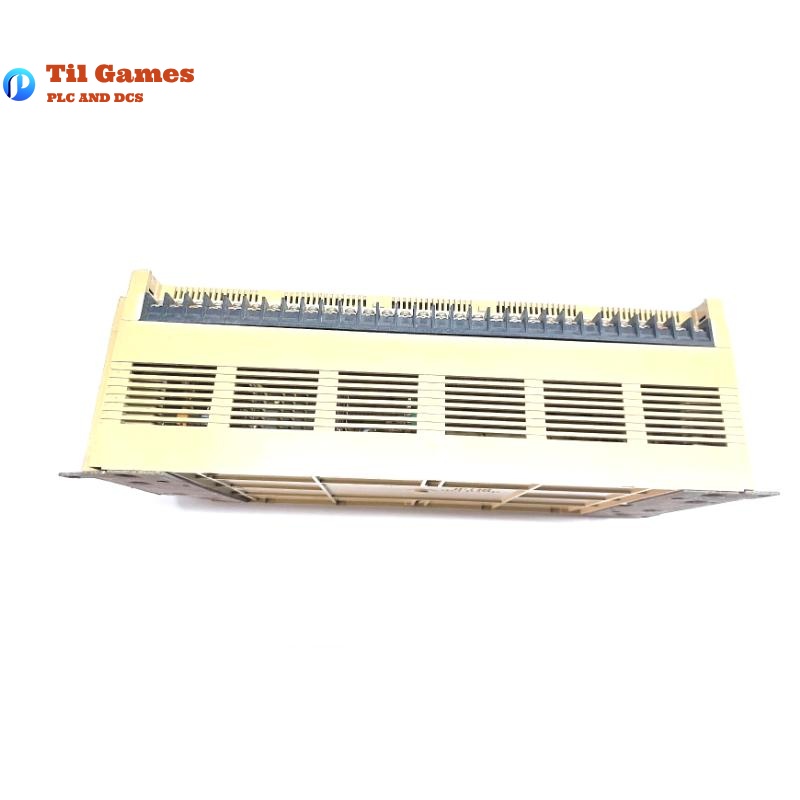

Technical Specifications
| Parameter | Description |
|---|---|
| Number of Inputs | 40 |
| Number of Outputs | 24 |
| Max Expandable I/O | 64 points |
| Internal Program Memory | 1K EEPROM (950 words) |
| Plug-in Memory Module | 2K EEPROM or 2K EPROM (1970 words) |
| Cycle Time | Typically 5 ms per 1K instructions |
| Power Supply Voltage | 230V AC (±15%, 50/60 Hz) |
| Power Consumption | 39 VA (without programmer) |
| Input Supply | 24V DC, integrated (max. 0.4 A) |
| Input Isolation | Optocoupler isolated |
| Input Delay | Typically 4 ms |
| Input Current | Typically 10 mA |
| Output Type | Relay |
| Output Rating | 230V AC cosφ=1: max. 2 A 230V AC cosφ=0.4: max. 1 A 230V DC / 24V DC: max. 1 A |
| Output Protection | Varistor for inductive load protection |
| Output Delay | Typically 10 ms |
| Contact Life | No load: >2 million cycles Full load: >200,000 cycles (230V AC/2A) |
| Connection Type | Screw terminals |
| Timers | 40 |
| Timer Range | 0.01 – 999 s |
| Counters | 24 down, 8 up/down |
| High-speed Counter | 1 BCD counter (4 digits, 10 kHz) |
| LED Indicators | Inputs, outputs, power, run, HZ, HR |
| Internal Flags | 376 (incl. 248 buffered flags) |
| Programming | Via 07 PG 200 / PG 201 or IBM-compatible PC |
| Operating Temperature | 0℃ to 55℃ |
| Storage Temperature | -10℃ to 65℃ |
| Humidity | 90% non-condensing |
| Dimensions | 330 x 140 x 102 mm |
| Weight | 1 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the maximum I/O capacity supported by this unit?
A1: It supports up to 64 I/O points (40 inputs and 24 outputs).
Q2: What is the output current rating for the relay contacts?
A2: Maximum 2 A at 230V AC (cosφ=1), or 1 A for DC/inductive loads.
Q3: Does this unit support high-speed counting?
A3: Yes, it features a 10 kHz BCD high-speed counter with 4-digit resolution.
Q4: What programming tools are compatible?
A4: Compatible with ABB’s 07 PG 200/201 units or IBM-compatible PCs.
Q5: Are the inputs optically isolated?
A5: Yes, inputs are optocoupler-isolated for enhanced electrical safety.
Q6: What power supplies are required?
A6: 230V AC main supply and internal 24V DC input supply (0.4 A max).
Q7: What type of output does it use?
A7: It uses relay-type outputs suitable for both AC and DC loads.
Q8: Is there a shock-resistant version available?
A8: The standard version is not specified for shock resistance; for enhanced vibration environments, use the R2/R21 versions.
