Technical Specifications
| Parameter | Description |
|---|---|

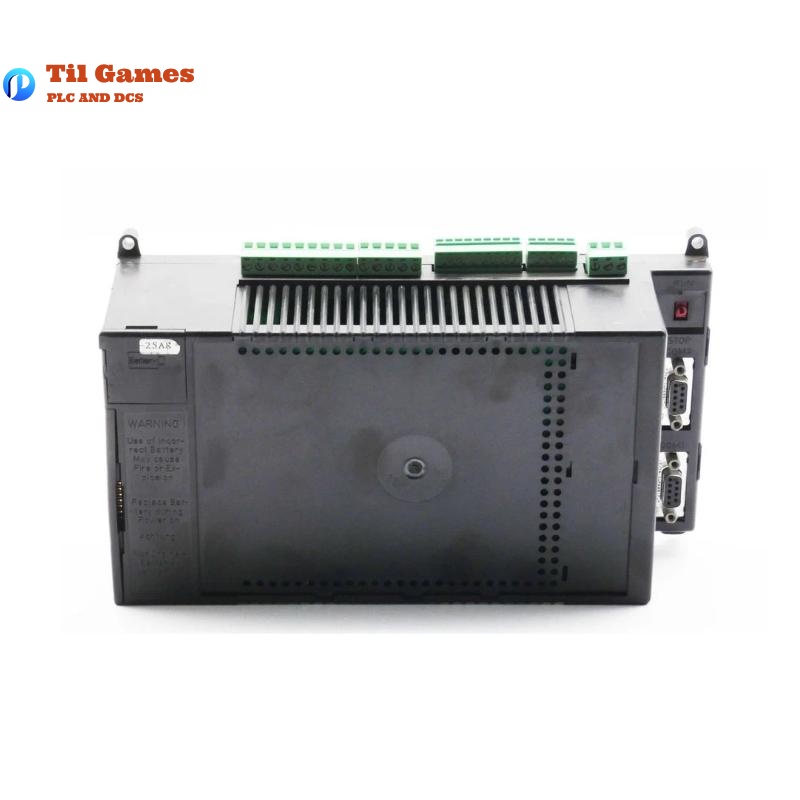

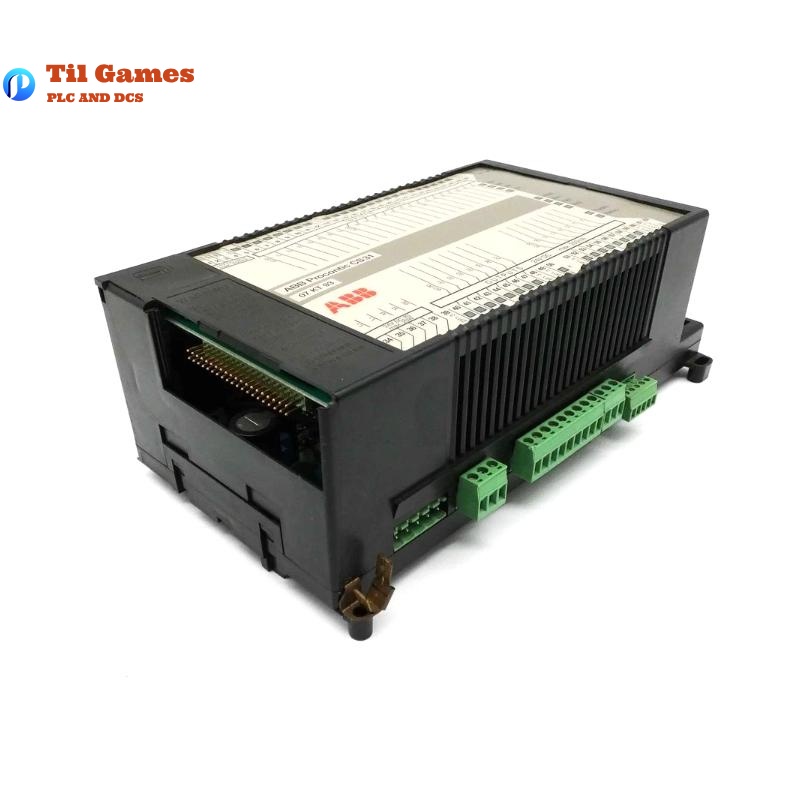

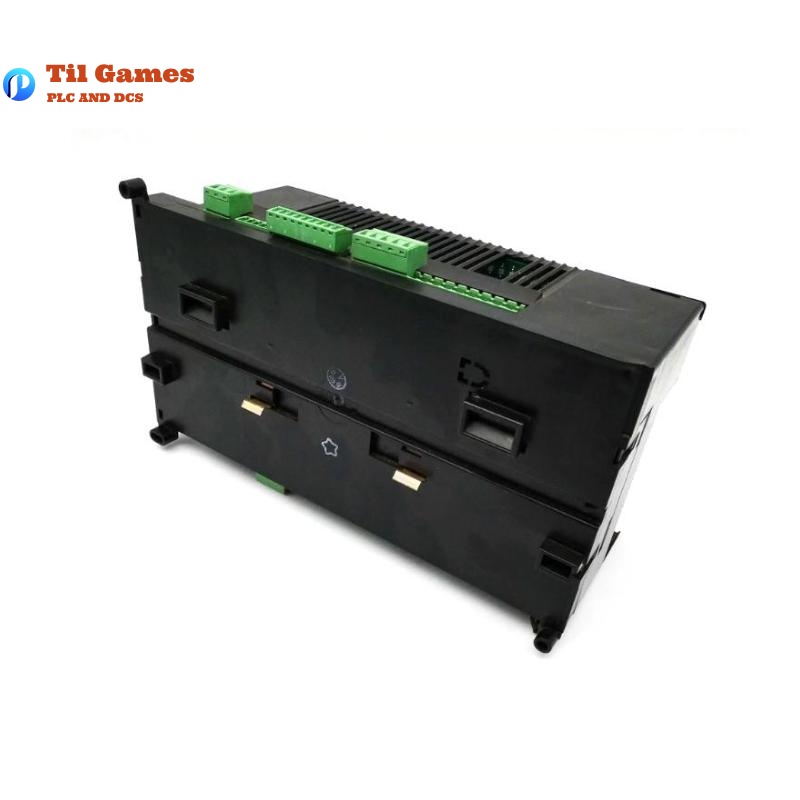

| Model | 07KT92 / 07KT92C GJR5250500R0202 |
| Memory | 14 KBytes FLASH EPROM |
| Digital Inputs | 12 x 24 VDC |
| Digital Outputs | 8 x 24 VDC / 0.5 A transistor outputs |
| Analog Inputs | 4 x analog inputs, 12-bit resolution |
| Analog Outputs | 2 x analog outputs, 12-bit resolution |
| Communication Ports | 2 x programmable RS232, RS485 system bus |
| High-Speed Counter | 50 kHz |
| Clock | Real-time clock integrated |
| Advanced Functions | Supports PID regulation, data manipulation |
| Communication Protocol | MODBUS Master/Slave built-in, ARCNET integrated (only 07KT92C) |
| Power Supply | 24 VDC (19.2 – 30 VDC) |
| Mounting | DIN rail or screw mounting |
| Degree of Protection | IP20 |
| Operating Temperature | 0 to +55 °C |
| Storage Temperature | -40 to +75 °C |
| Bus System | RS485, up to 31 remote units, max 500 m |
| Dimensions | 240 x 140 x 85 mm |
| Weight | 1.6 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What type of applications is the 07KT92 suitable for?
A1: It is suitable for complex control tasks requiring analog and digital I/O, data processing, and communication, particularly in decentralized automation systems.
Q2: Can the 07KT92 be used as a master in the CS31 system?
A2: Yes, it can operate as a master CPU in an RS485 network supporting up to 31 slave units.
Q3: What communication options does it support?
A3: It supports two RS232 ports and one RS485 port, and the 07KT92C version includes ARCNET communication.
Q4: How are the analog signals processed?
A4: The module features 4 analog inputs and 2 analog outputs, each with 12-bit resolution.
Q5: Is programming possible while the system is running?
A5: Yes, additional modules can be recognized dynamically without halting operation.
Q6: What are the mounting options?
A6: It can be mounted on a DIN rail or fixed with screws using M4 bolts.
Q7: How is fault diagnosis handled?
A7: The unit includes extensive diagnostics, including local LEDs and system-integrated feedback.
Q8: Is this module compatible with MODBUS?
A8: Yes, MODBUS Master/Slave functionality is built-in.
