Technical Specifications
| Parameter | Specification |
|---|---|

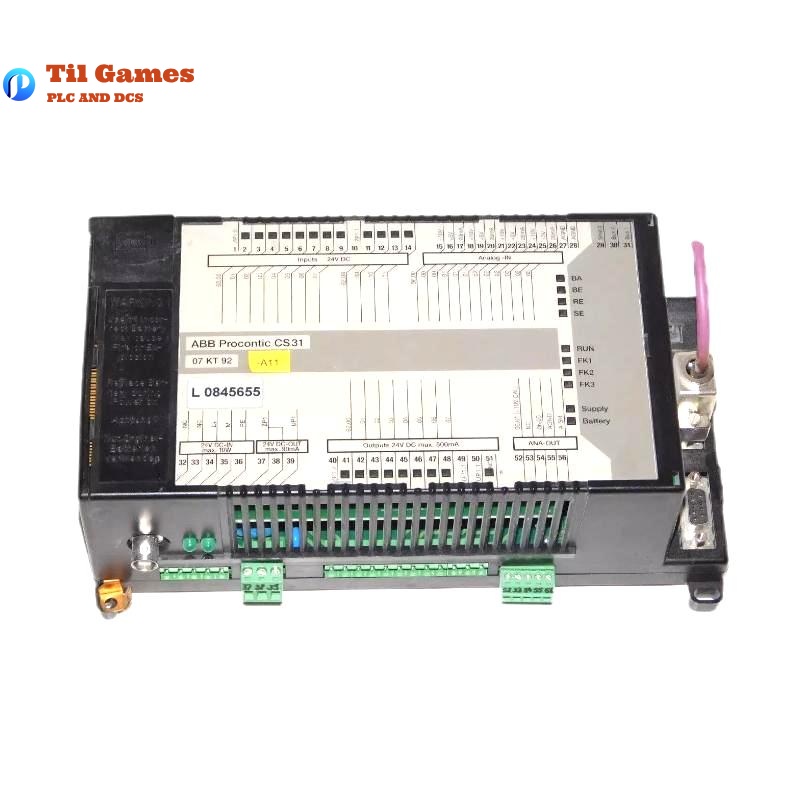

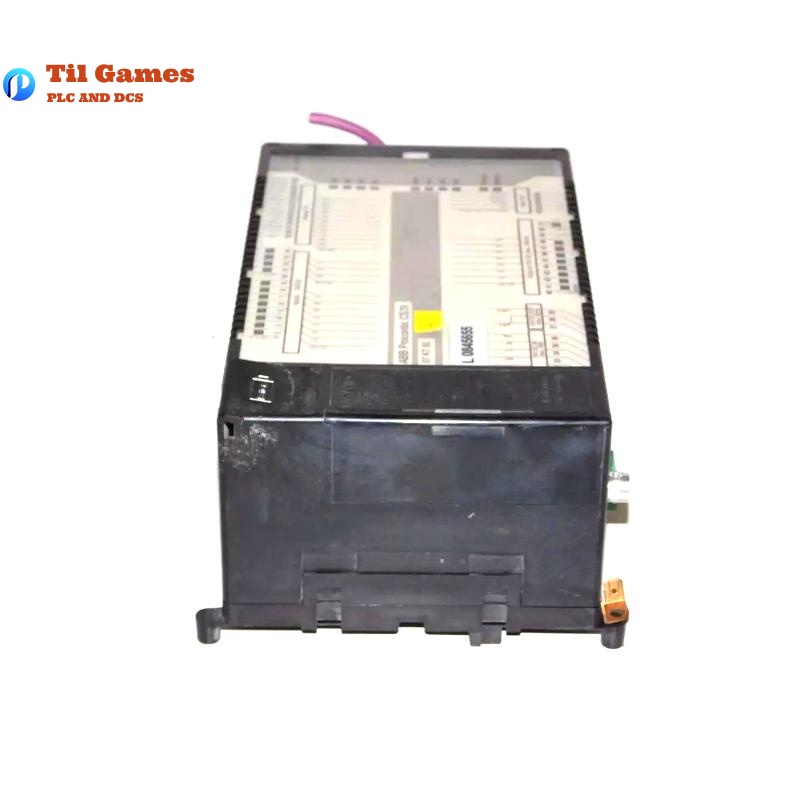

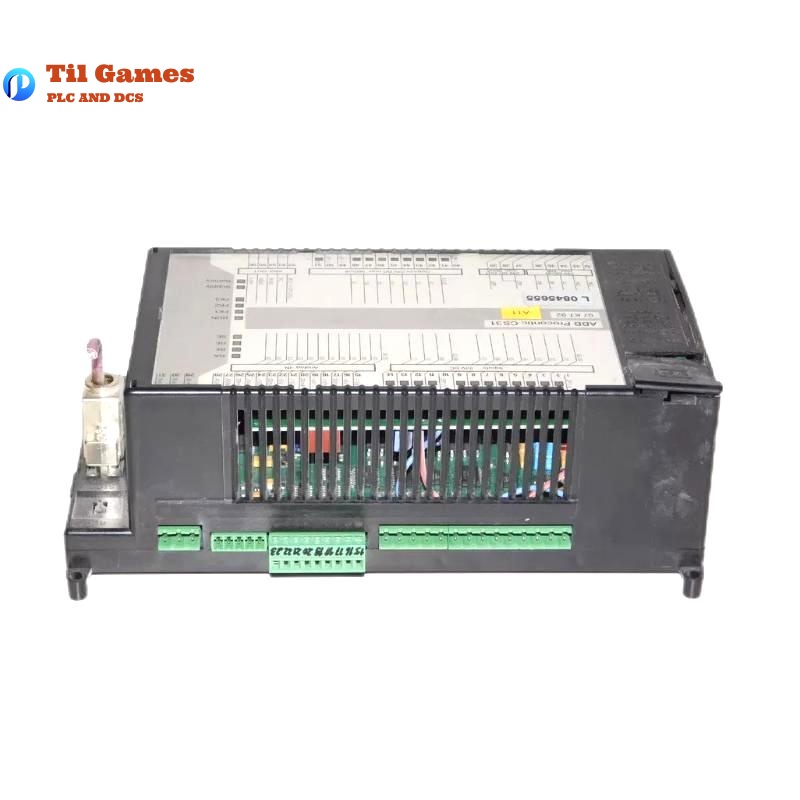

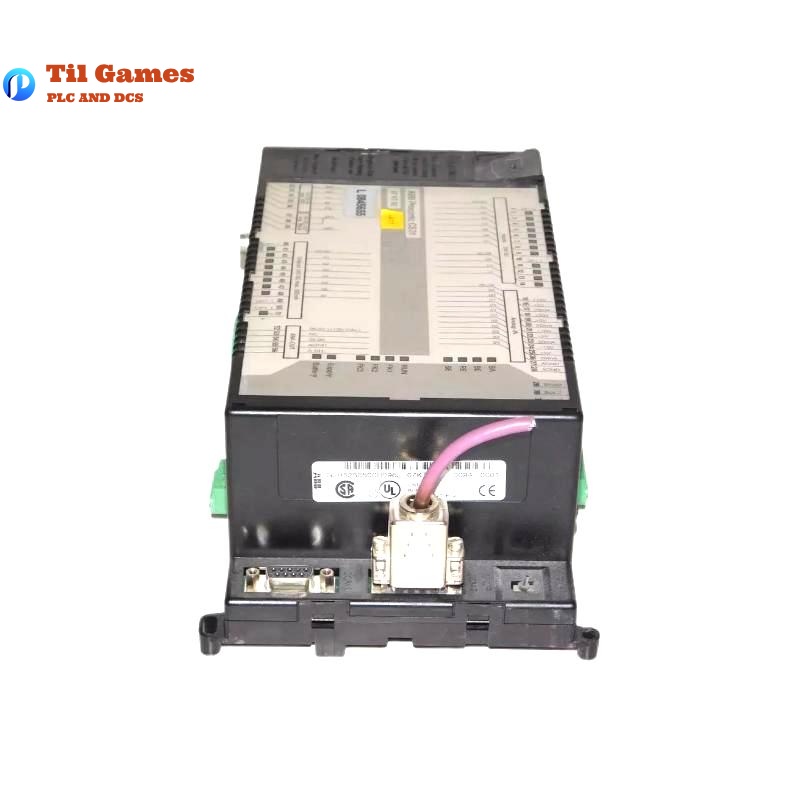

| Model | ABB 07KT92 GJR5250500R0902 |
| System | Procontic CS 31 Decentralized Automation System |
| User Program Memory | 14 Kbyte FLASH EPROM |
| Digital Inputs | 12 x 24 VDC |
| Digital Outputs | 8 x 24 VDC / 0.5 A Transistor Outputs |
| Analog Inputs | 4 channels, 12-bit resolution |
| Analog Outputs | 2 channels, 12-bit resolution |
| Communication Ports | 2 x Programmable RS232 Ports |
| Bus Interface | RS485 System Bus, ARCNET Built-in |
| Real-time Clock | Yes |
| High-speed Counter | 50 kHz |
| Control Functions | PID Control, Data Handling |
| Power Supply | 24 VDC (GJR5250500R0202 or GJR5250500R0262 with ARCNET) |
| Mounting | DIN Rail or Screw Mount |
| Protection Rating | IP20 |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +75°C |
| Dimensions (W x H x D) | 240 x 140 x 85 mm |
| Weight | 1.6 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the memory capacity of the 07KT92 CPU?
A1: It has 14 Kbyte FLASH EPROM for user programming.
Q2: How many digital inputs and outputs are available?
A2: There are 12 digital inputs and 8 transistor outputs (24 VDC / 0.5 A).
Q3: Does the 07KT92 support analog I/O?
A3: Yes, it supports 4 analog inputs and 2 analog outputs, both with 12-bit resolution.
Q4: What type of communication interfaces does it provide?
A4: It offers 2 programmable RS232 ports and supports RS485 and ARCNET communication.
Q5: Is a high-speed counter function available?
A5: Yes, the high-speed counter operates up to 50 kHz.
Q6: What is the mounting method for this CPU?
A6: It can be mounted via DIN rail or screw.
Q7: What power supply is required?
A7: The unit operates on 24 VDC.
Q8: Can this CPU perform PID control?
A8: Yes, PID control is integrated as part of its functional capabilities.
