Technical Specifications
| Item | Description |
|---|---|

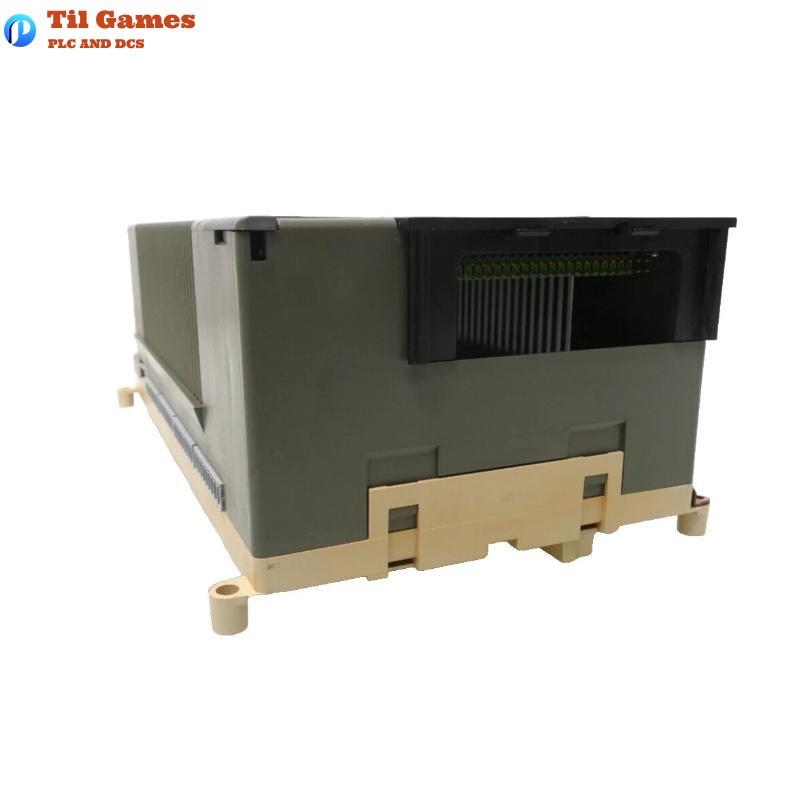

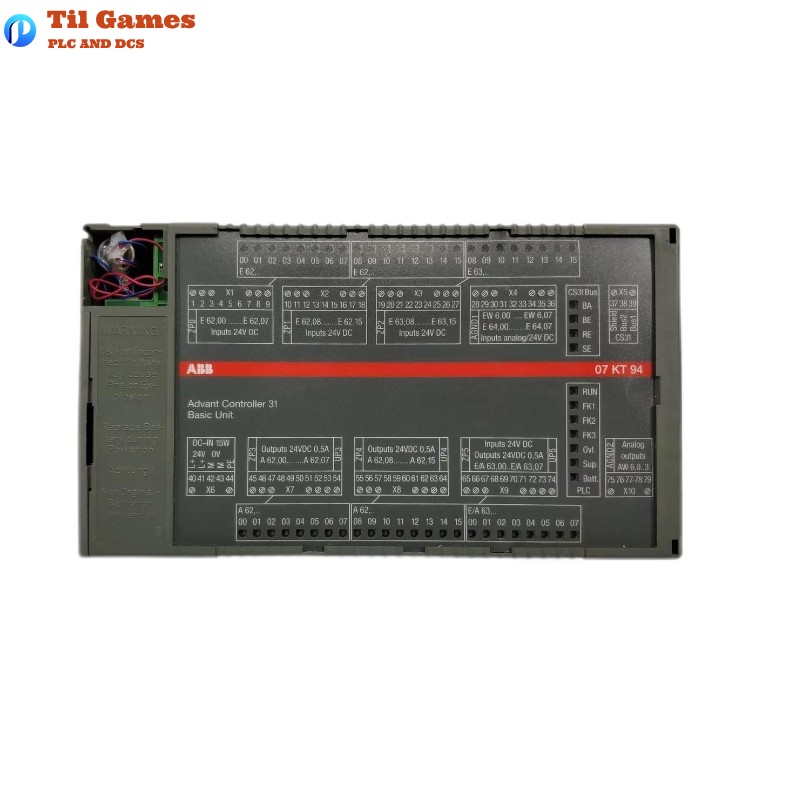

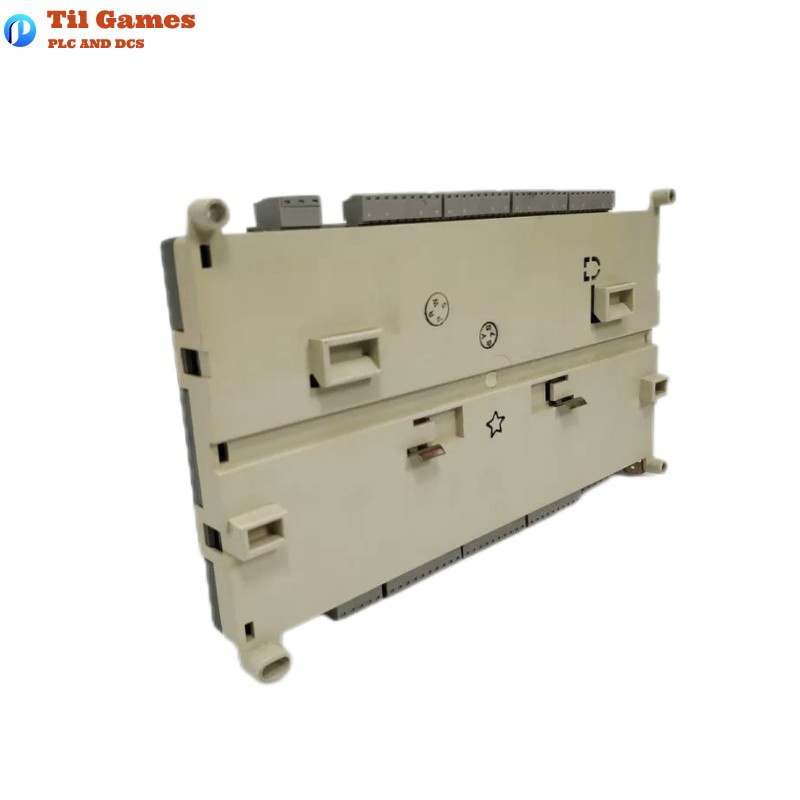

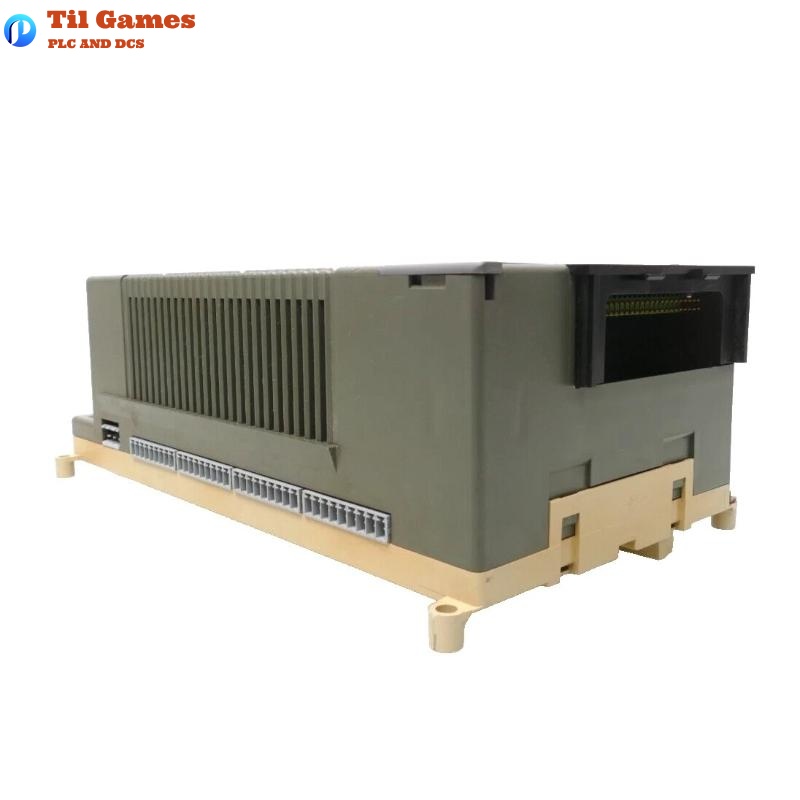

| Model | ABB 07KT94 GJR5252100R0101 |
| Series | Advant Controller 31 |
| Operating System | EBS Operating System |
| Communication | COM1, COM2 (serial); MODBUS RTU supported |
| Input Type | Digital Inputs: E62-E64; Analog Inputs: EW06 |
| Output Type | Digital Outputs: A62-A63; Analog Outputs: AW06 |
| Programming | Not supported by 907 AC 1131 (RT only) |
| Analog Precision | 12-bit resolution (depending on input type) |
| Power Supply | Typically 24V DC (requires external PSU) |
| Protocol Support | CS31 system bus |
| Mounting Method | DIN rail mounting |
| Dimensions (LxWxH) | 240 x 140 x 85 mm |
| Weight | 1.6 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: Which communication protocols are supported by the 07KT94?
A1: It supports communication via the CS31 system bus and serial ports (COM1/COM2) including MODBUS RTU.
Q2: Does it support analog input/output?
A2: Yes, it supports analog I/O via EW06 and AW06 channels, configured via system constants.
Q3: Is it programmable using ABB 907 AC 1131 software?
A3: No, it uses the EBS operating system and is not compatible with the 907 AC 1131 development tool.
Q4: Does it support high-speed counting?
A4: No built-in high-speed counter function. External high-speed input modules are required.
Q5: What is the response time for digital inputs?
A5: Input delay can be configured as 1ms or 7ms through system constant KW85.
Q6: What analog input ranges are supported?
A6: Supported ranges include 0–10V, ±10V, 0–20mA, 4–20mA, and Pt100 RTD.
Q7: How can system health be monitored?
A7: LED indicators on the unit panel show system status and errors.
Q8: Does the unit support warm start after an error?
A8: Yes, automatic warm start after FK2 error can be enabled via KW00.12.
