Technical Specifications
| Parameter | Value |
|---|---|

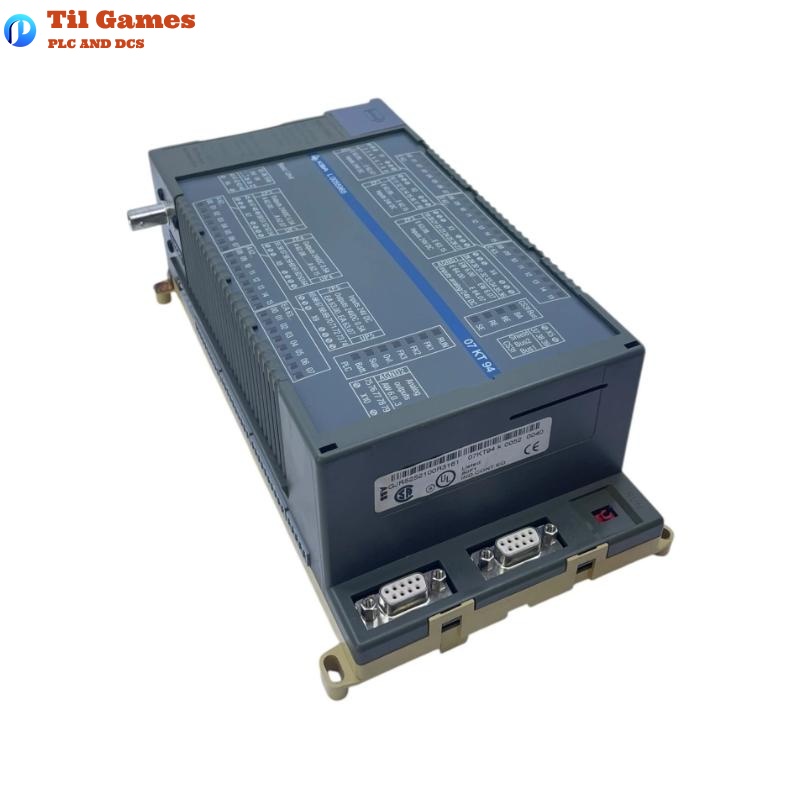

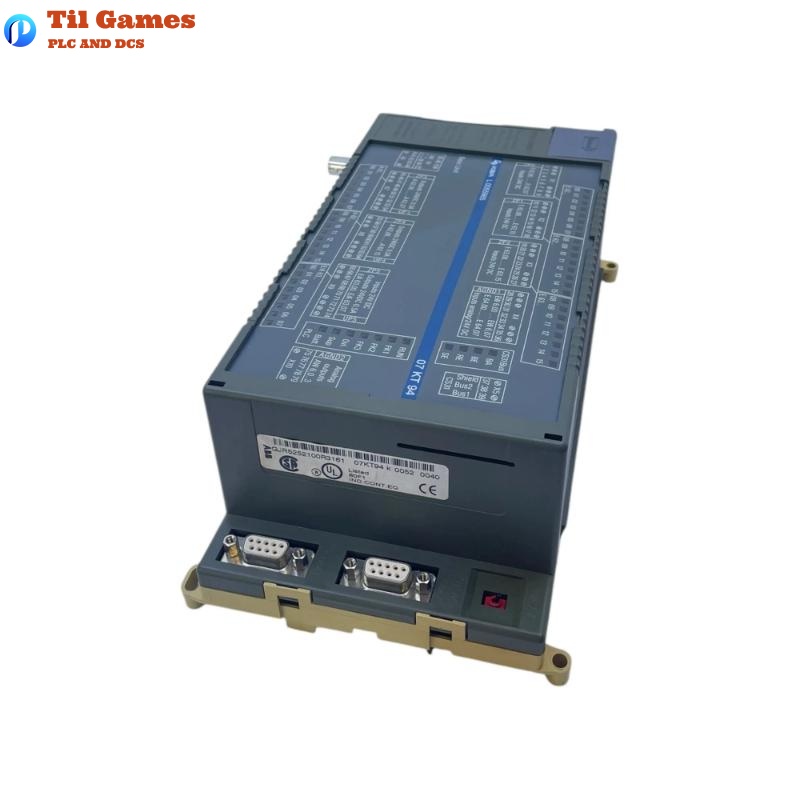

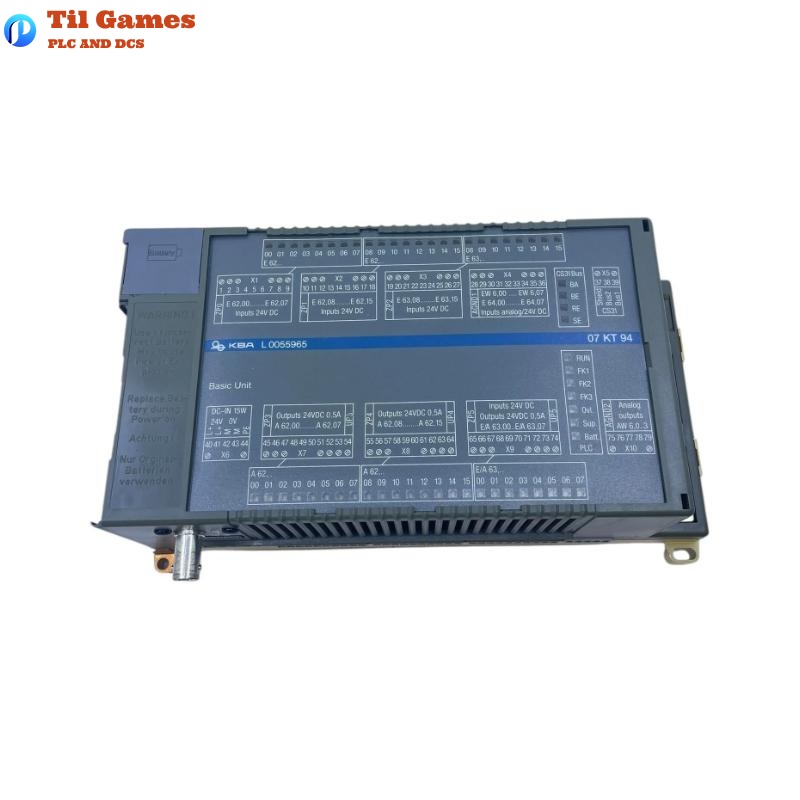

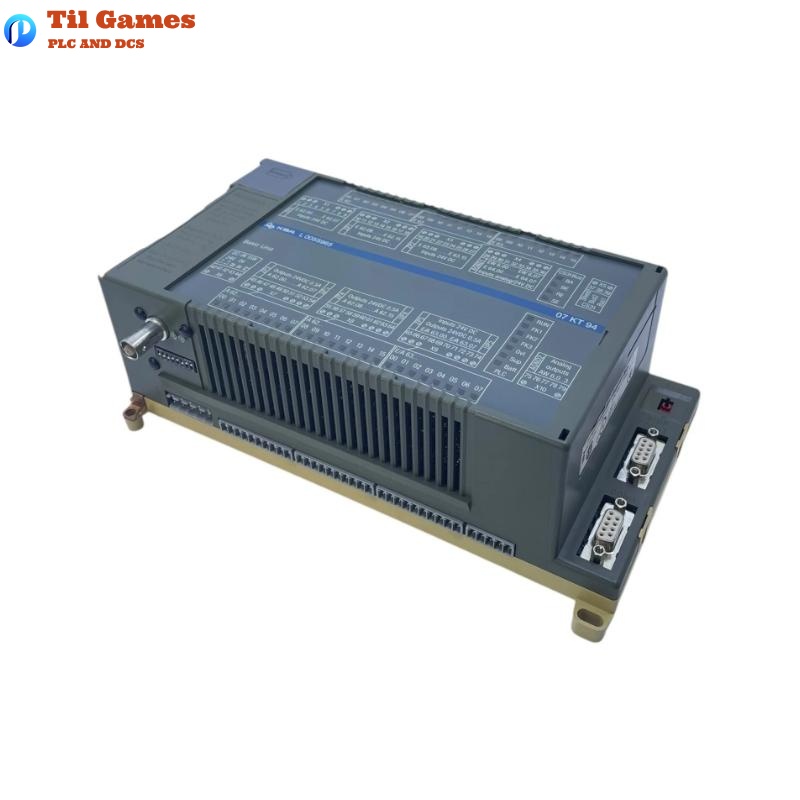

| Model | 07KT94 GJR5252100R3161 |
| Controller Type | Advant Controller 31 Basic Unit |
| Operating System | EBS (not programmable via 907 AC 1131) |
| Input Type | Digital / Analog Inputs |
| Output Type | Digital Outputs only |
| Analog Input Channels | 8 channels (EW06.00 – EW06.07) |
| Analog Output | Not supported |
| Programming Method | EBS-based configuration only |
| Communication Ports | COM1 / COM2 Serial Interfaces |
| Supported Protocols | MODBUS RTU (via serial ports) |
| Mounting | DIN rail mounting |
| Power Supply | Typically 24 V DC external |
| Operating Temp. | 0°C to 60°C |
| Dimensions (W x H x D) | 240 x 140 x 85 mm |
| Weight | 1.6 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What programming software is compatible with the 07KT94?
A1: The 07KT94 uses the EBS operating system and cannot be programmed using 907 AC 1131.
Q2: Can the 07KT94 be used as a CS31 system bus master?
A2: No, it functions only as a basic unit and does not support master functionality.
Q3: How many analog inputs does the 07KT94 provide?
A3: It provides 8 analog inputs, from EW06.00 to EW06.07.
Q4: What input ranges are supported for the analog channels?
A4: Supported ranges include 0-10V, ±10V, 0-20mA, 4-20mA, Pt100, etc.
Q5: Does the unit support analog output?
A5: No, analog output is not supported on the 07KT94; it is available on higher models such as 07KT97.
Q6: What protocols are supported via COM1 and COM2?
A6: The unit supports MODBUS RTU protocol, which can be configured via system settings.
Q7: Can the input delay time be configured?
A7: Yes, input delay can be set to 1 ms or 7 ms via system constants KW85.00 and KW85.01.
Q8: Does the unit support self-diagnosis or error reporting?
A8: Yes, it has diagnostic capabilities and reports fault classes (FK1, FK2, FK3) via system flags.
