Technical Specifications
| Parameter | Description |
|---|---|

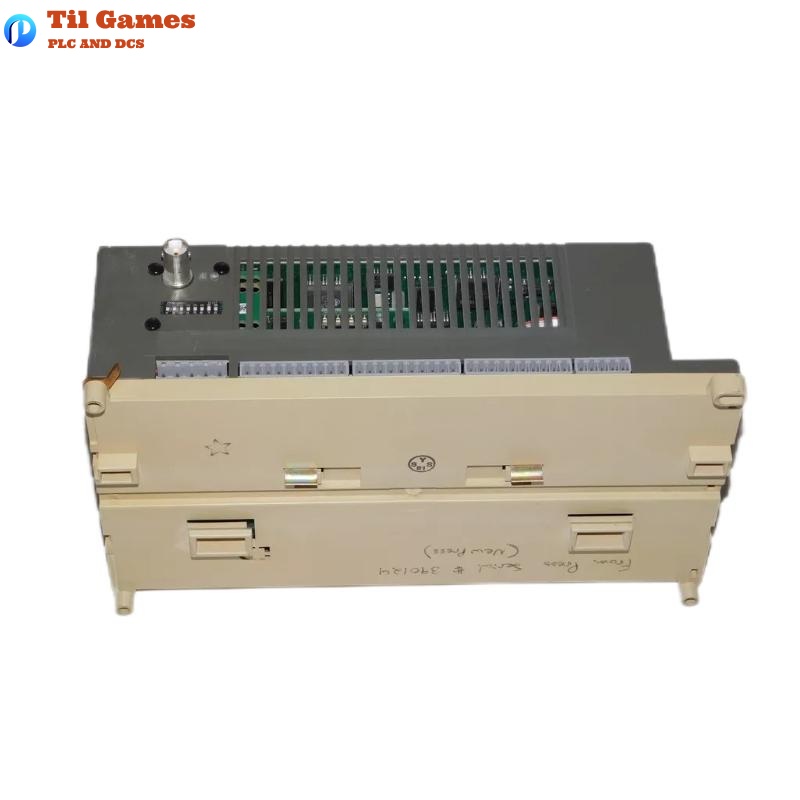

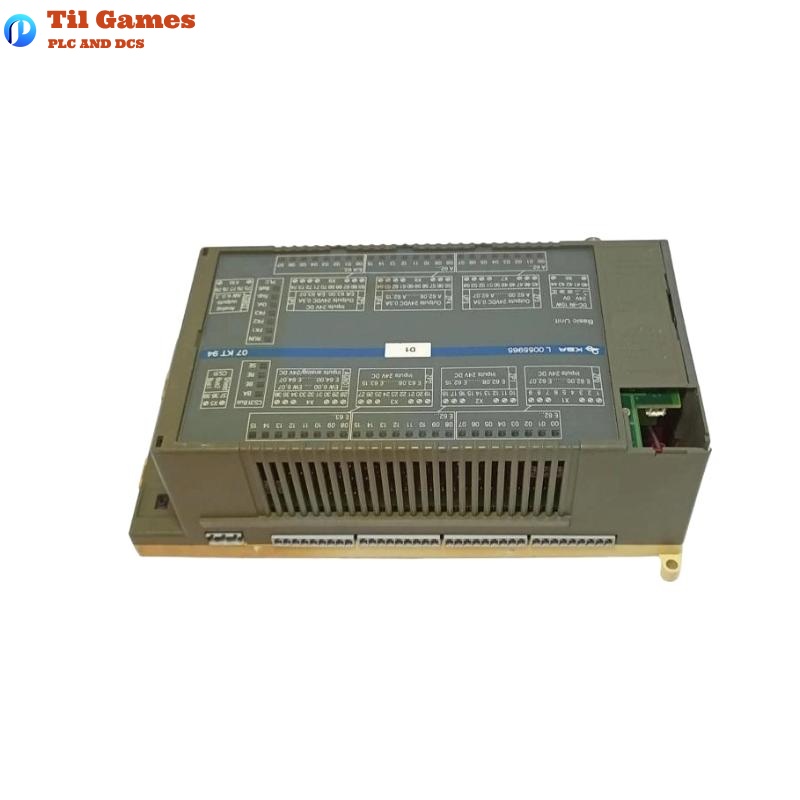

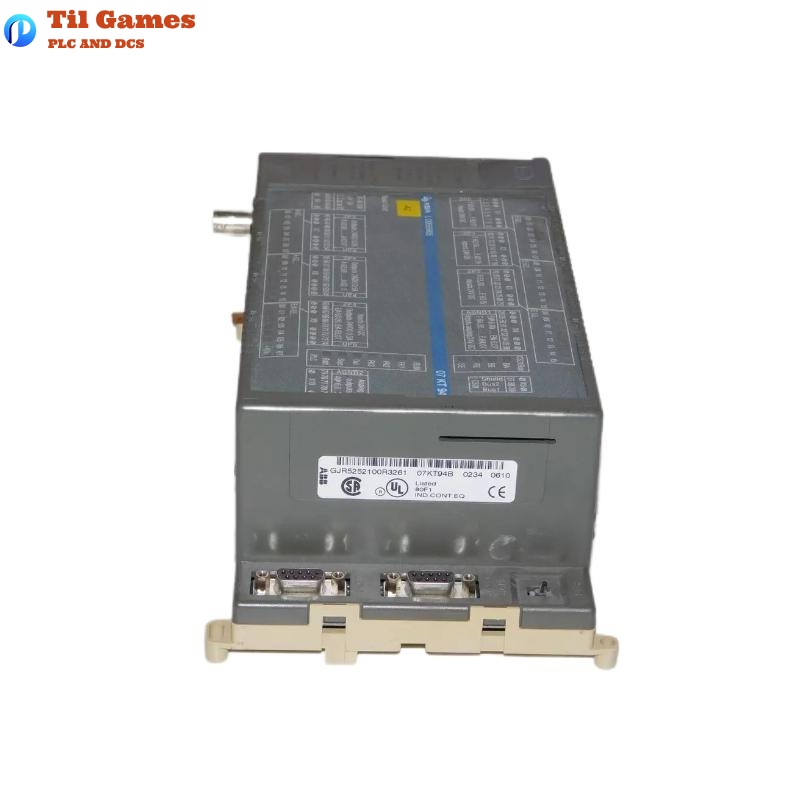

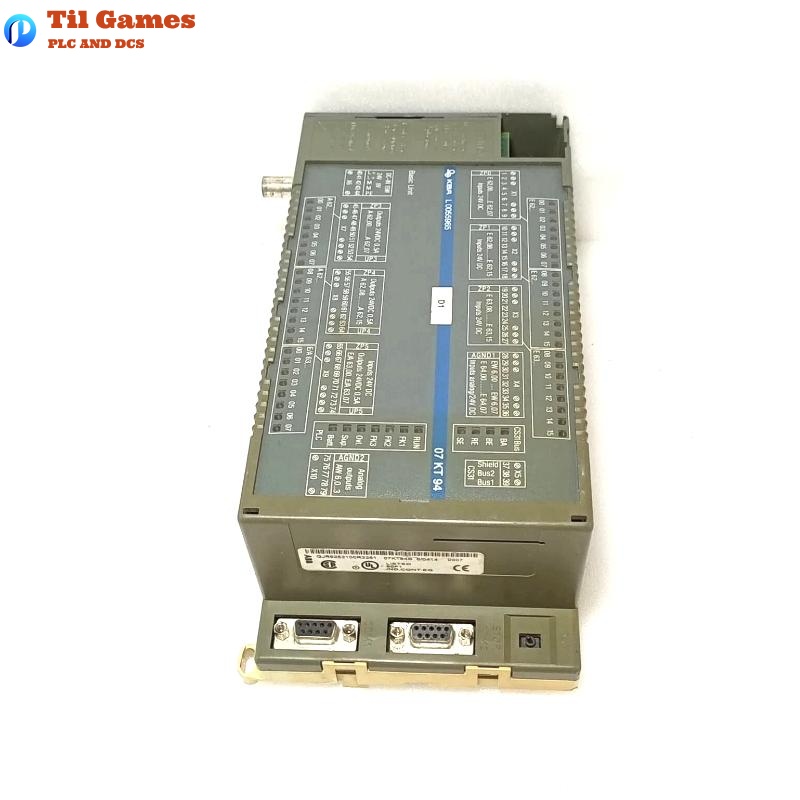

| Product Model | 07KT94 |
| Manufacturer | ABB |
| Controller Type | Advant Controller 31 Basic Unit |
| System Bus Support | CS31 system bus |
| Programming System | EBS Operating System under 907 PC 331 |
| Digital I/O | 8 digital inputs, 8 digital outputs onboard |
| Analog Inputs | 8 channels, configurable for 0–10V, 0–20mA, Pt100 etc. |
| Analog Outputs | 4 channels, configurable for ±10V or 0–20mA |
| Communication Ports | COM1 / COM2 serial ports, supporting MODBUS RTU |
| Power Supply | 24 V DC |
| Mounting Method | DIN rail mounting |
| Dimensions | 240 x 140 x 85 mm |
| Weight | 1.6 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What types of automation systems is 07KT94 suitable for?
A1: It is suitable for small to medium-sized industrial automation systems, particularly in intelligent decentralized control scenarios such as process automation and factory production control.
Q2: Does it support analog input configuration?
A2: Yes. It supports up to 8 analog input channels, configurable for voltage, current, or Pt100 temperature sensors via KW86 system constants.
Q3: Which communication protocols are supported?
A3: MODBUS RTU is supported through the COM1 and COM2 serial interfaces.
Q4: Is a high-speed counter supported?
A4: Yes. Various counter modes can be set using system constant KW85.02, including up/down counters and encoder inputs.
Q5: Is watchdog monitoring available?
A5: Yes. Task cycle monitoring can be configured using KW80 system constants for overrun protection.
Q6: Will variable data be retained after power loss?
A6: If a battery is present, the system supports buffering of variables (M, MW areas) to prevent data loss after power failure.
Q7: How is the unit configured as a CS31 slave?
A7: By setting the system constant KW00.00 to an appropriate address (e.g., 0–61 or 100–115) and performing a warm/cold start.
Q8: Are diagnostic functions available for analog signals?
A8: Yes. Analog channels support diagnostics such as open wire, short circuit, and range overflow, configured via the high byte in KW86 constants.
