Technical Specifications
| Item | Specification |
|---|---|

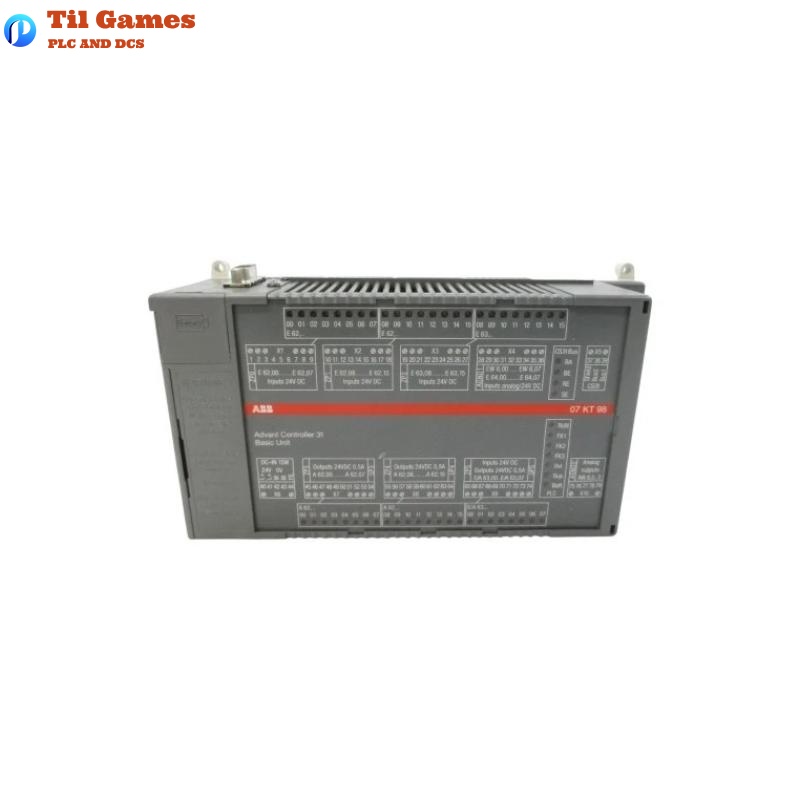

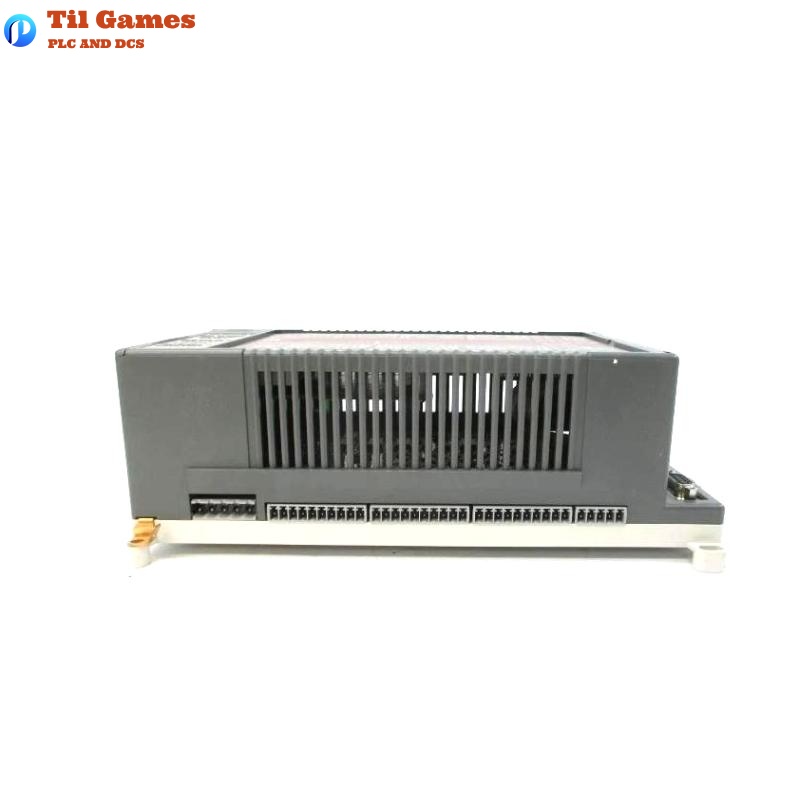

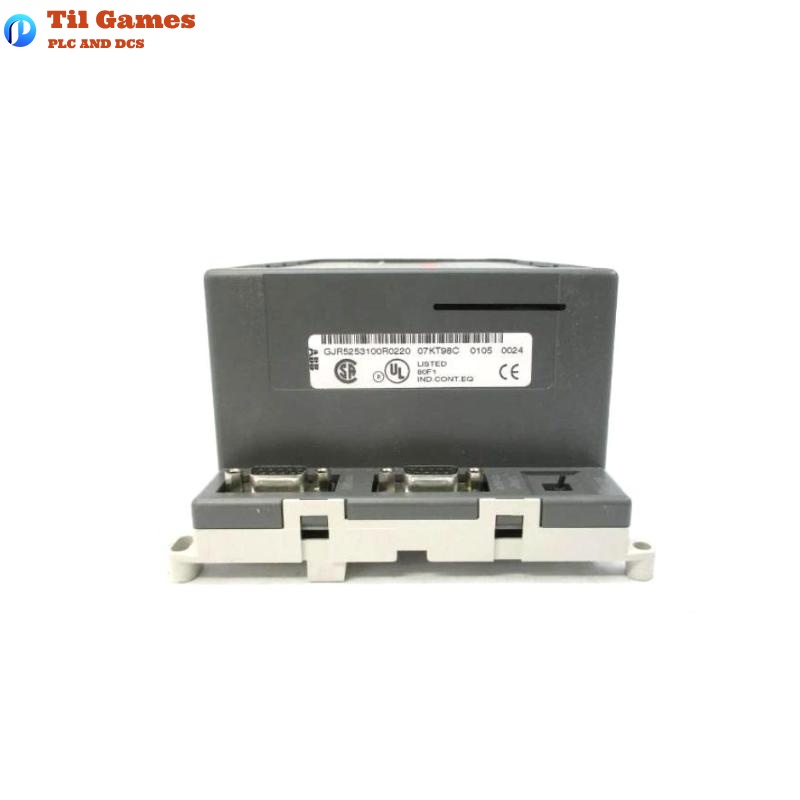

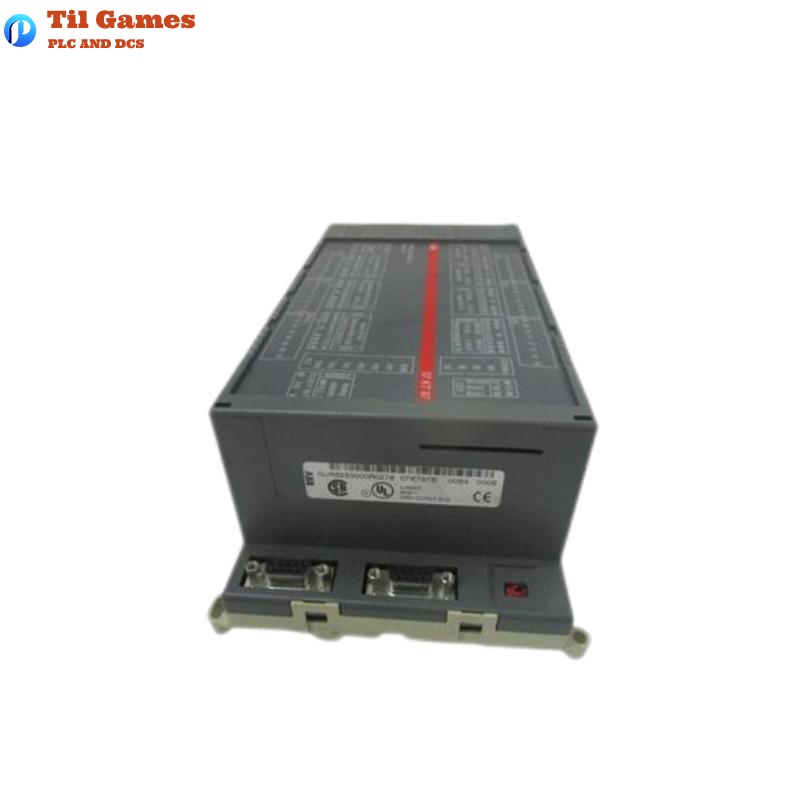

| Model | ABB 07KT98 GJR5253100R0220 |
| Power Supply Voltage | 24 V DC |
| Maximum Power Consumption | 0.55 A |
| Digital Inputs | 24 inputs, in 3 isolated groups of 8 channels |
| Digital Outputs | 16 transistor outputs, in 2 isolated groups of 8 channels |
| Digital I/O | 8 channels, configurable as input, output, or re-readable output |
| Analog Inputs | 8 channels, configurable: 0…10 V, ±10 V, 0…20 mA, 4…20 mA, Pt100 |
| Analog Outputs | 4 channels, configurable: ±10 V, 0…20 mA, 4…20 mA |
| Serial Interfaces | COM1 and COM2 (RS-232, MODBUS, programming, diagnostics) |
| System Bus Interface | CS31 system bus |
| High-Speed Counter | Max. 50 kHz, 7 configurable modes |
| Real-Time Clock | Integrated, 1-second resolution |
| Memory | Flash EPROM: 1 MB + 128 KB; SRAM: 256 KB RETAIN; DRAM: 1 MB + 1 MB |
| Programming Software | 907 AC 1131 (V4.1+ for ARCNET, V4.2.1+ for PROFIBUS-DP) |
| Battery Backup | Lithium battery 07 LE 90; typical lifetime: 5 years |
| Mounting | DIN rail or screw-mounted |
| Dimensions | 240 x 140 x 85 mm |
| Weight | 1.6 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: Can the controller operate as a standalone unit?
A1: Yes. The 07KT98 can operate as a standalone unit, a bus master, or a remote slave within the Advant Controller 31 system.
Q2: What programming software is supported?
A2: It is programmed using ABB 907 AC 1131 software. ARCNET versions require V4.1 or later; PROFIBUS-DP versions require V4.2.1 or later.
Q3: Is it safe to hot-swap the SmartMedia card?
A3: No. SmartMedia cards should be inserted or removed only when the unit is powered off to prevent data loss or corruption.
Q4: Are the digital outputs protected against overload?
A4: Yes. All digital outputs are protected against short circuit and overload. Overload is indicated by the red OVL LED.
Q5: Are Pt100 temperature sensors supported on analog inputs?
A5: Yes. Pt100 sensors are supported in both 2-wire and 3-wire configurations with ranges -50°C to +400°C and -50°C to +70°C.
Q6: What communication interfaces are available?
A6: The unit includes two RS-232 serial interfaces (COM1 and COM2), a CS31 system bus, and depending on the variant, ARCNET, PROFIBUS-DP, CANopen, or Ethernet.
Q7: Does the power supply include reverse polarity protection?
A7: Yes. The 24 V DC power input is protected against reverse polarity.
Q8: Can the input signal delay be adjusted?
A8: Yes. The digital and configurable I/O inputs have a default delay of 7 ms, which can be configured to 1 ms.
