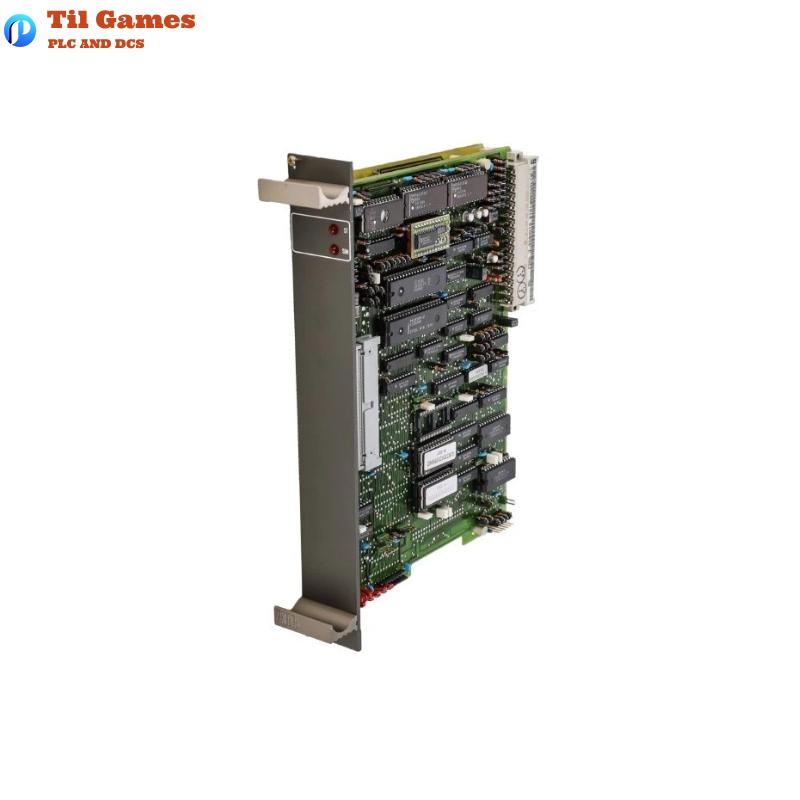

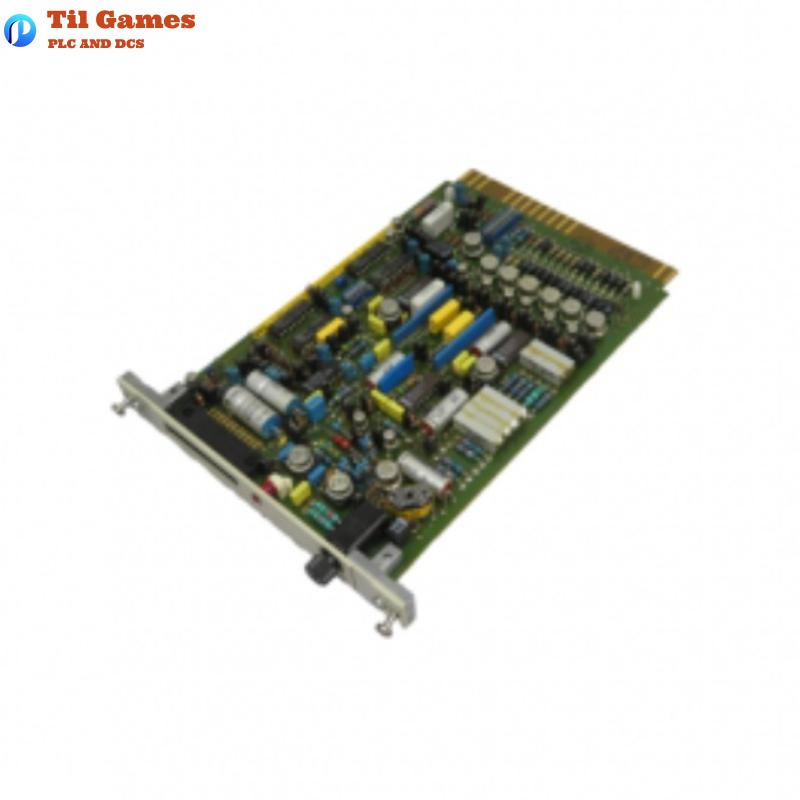

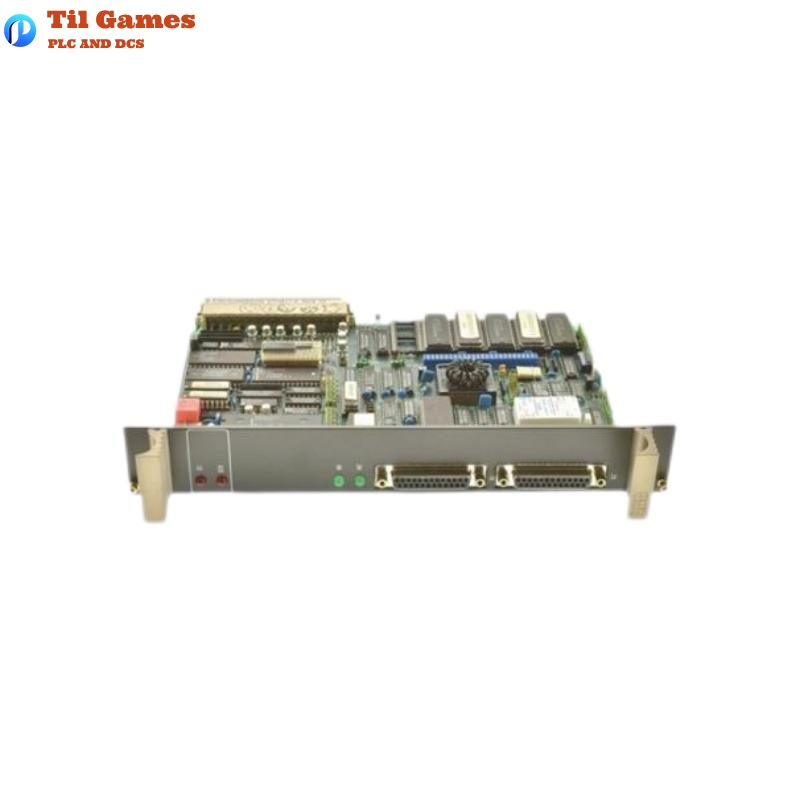

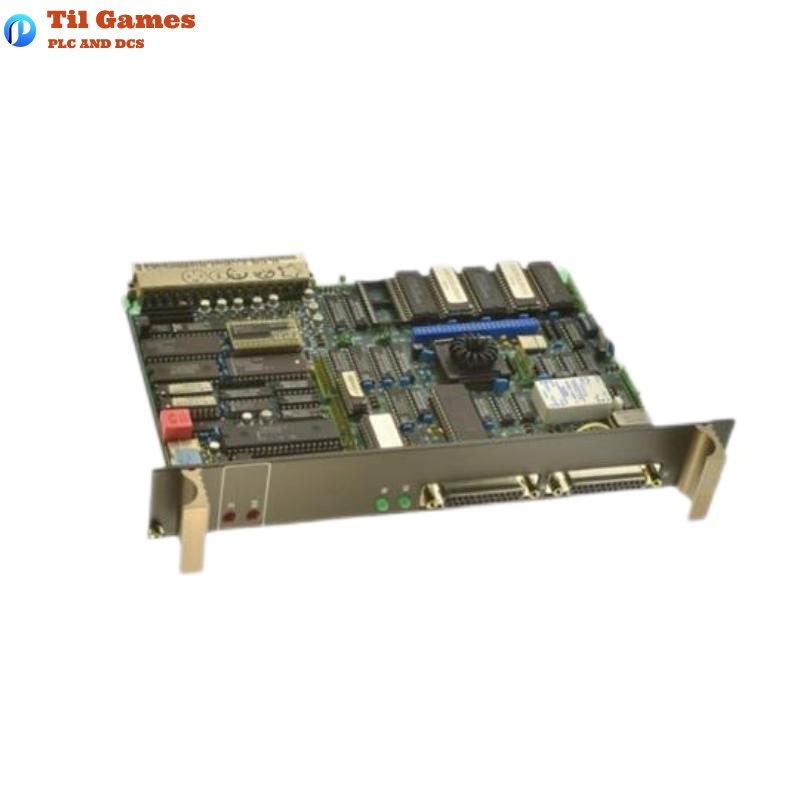

Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | 81AA02E / R1010 |
| Ordering Code | GJR2385200R1010 |
| Analog Output | 4 channels, ±20 mA or 0…+20 mA selectable |
| Resolution | 12-bit |
| Output Signal Range | ±20 mA (max. 30 mA) or 0…+20 mA |
| Total Error | ±0.42% (±20 mA mode), ±0.31% (0…20 mA mode) |
| Linearity Error | ±0.1% (±20 mA), ±0.05% (0…20 mA) |
| Temperature Drift | ±0.32% (±20 mA), ±0.26% (0…20 mA) |
| Power Supply (Bus) | +5 V DC (ID = 1.25 A) |
| Power Supply (Proc.) | +24 V DC (IS max. 620 mA) |
| Power Dissipation | Max. 27 W |
| Load Impedance | Max. 434 Ohm |
| Isolation | Channel-to-channel and channel-to-system isolated |
| Fault Outputs | 4 ST binary outputs, max. 100 mA |
| Module Design | Dual PCB, DIN 41 612 connectors |
| Dimensions | 38 × 254 × 203 mm |
| Weight | 0.8 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What types of analog signals does this module support?
A1: It supports both ±20 mA and 0…+20 mA current outputs, configurable via DIP switches.
Q2: Are the outputs electrically isolated?
A2: Yes, each channel is isolated from the others and from the system side.
Q3: How does the module behave if the source signal fails?
A3: It can be configured to output 0 mA, 20 mA, retain the last value, or a fault value, with an ST LED indication.
Q4: Does the module support signal simulation?
A4: Yes, signal simulation can be triggered from the operator station, with the SIM LED showing simulation status.
Q5: Is remote diagnosis possible?
A5: Yes, diagnostic registers can be accessed by the operator station for real-time monitoring and analysis.
Q6: What is the module’s total output error?
A6: ±0.42% in ±20 mA mode, and ±0.31% in 0…20 mA mode.
Q7: Are the output channels short-circuit and open-circuit protected?
A7: Yes, the outputs are both short-circuit-proof and open-circuit-proof.
Q8: Where can this module be installed?
A8: It is suitable for multipurpose stations in the PROCONTROL P system and supports hot swapping.
