Technical Specifications
| Parameter | Description |
|---|---|

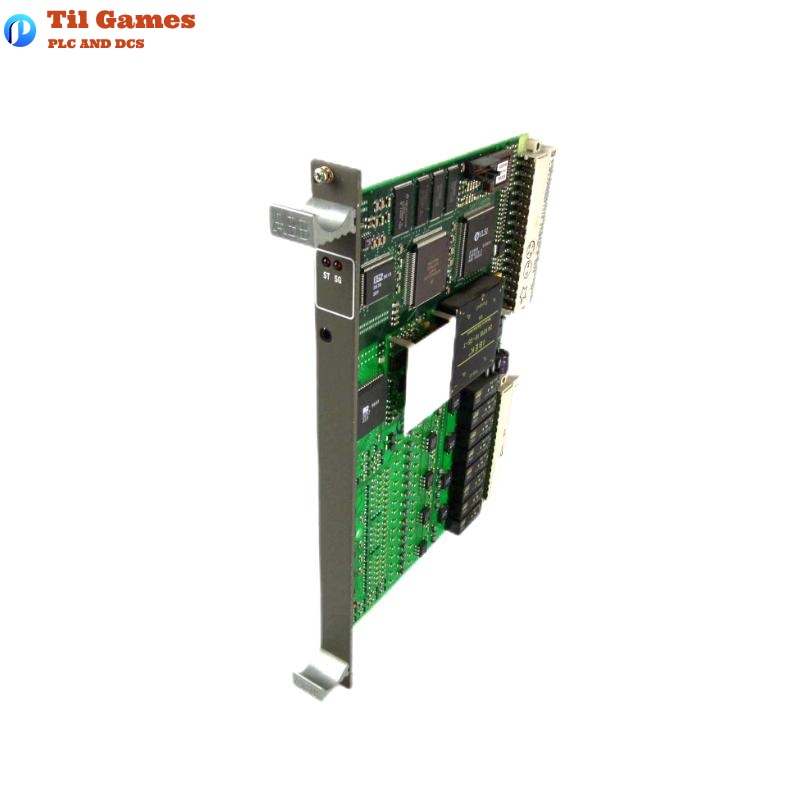

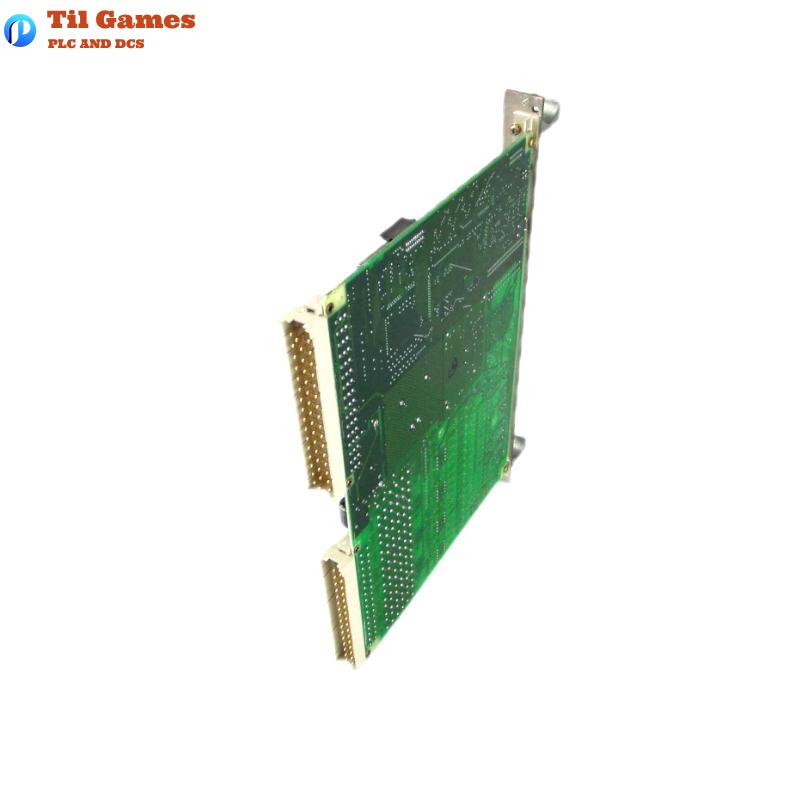

| Product Model | ABB 83SR50C-E / 83SR50 GJR2395500R1210 |
| System Platform | Procontrol P14 Control System |
| Memory Type | Flash PROM (some modules with Macronix Flash) |
| Flash Issue | Modules made after Oct. 2018 may use Macronix 29F040CTI-70G, leading to write failures |
| Operation Method | Applications loaded via PDDS into RAM, then copied to Flash |
| Fault Behavior | PDDS shows “Disable, list code not found”; ST/SG errors visible |
| Resolution | Return to ABB factory for repair or replacement with AMD Flash version |
| Dimensions (mm) | 185 × 130 × 40 mm |
| Weight (kg) | 0.55 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: Is hot swapping supported for the 83SR50 module?
A1: Hot swapping is not recommended. Power loss or removal clears RAM-stored programs.
Q2: Why can’t PDDS read back the program from the module?
A2: Modules with Macronix Flash failed to copy the program to Flash, causing read errors.
Q3: How to identify if the module uses faulty Flash?
A3: Check the label or use PDDS; Macronix 29F040CTI-70G indicates faulty Flash.
Q4: What precautions should be taken when using the module?
A4: Avoid power-off or removal. Programs reside only in volatile RAM, not Flash.
Q5: Will modules with AMD Flash experience similar issues?
A5: No. Modules equipped with AMD Flash are unaffected and can store programs correctly.
Q6: Can the module be used if it’s functioning but contains faulty Flash?
A6: Temporary use is possible, but avoid changes or power loss. Replacement is strongly recommended.
Q7: Can the module be reprogrammed?
A7: Flash is non-writable in affected units; applications reside only in RAM temporarily.
Q8: Is there any physical indicator on the module?

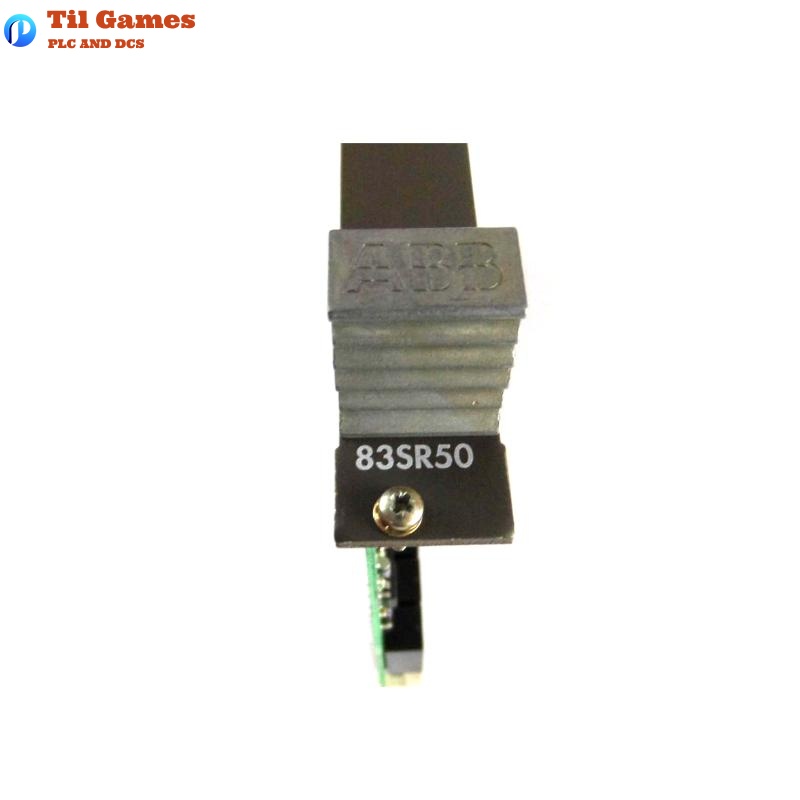

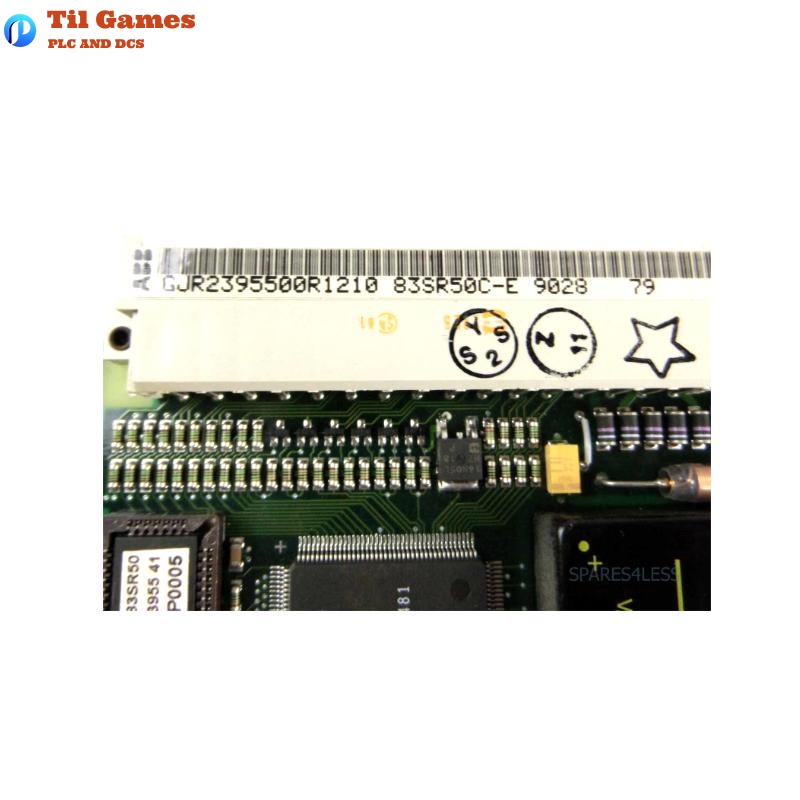

A8: Yes, Flash chip label is visible at the top left corner, showing Flash manufacturer details.
