Technical Specifications
| Parameter | Specification |
|---|---|

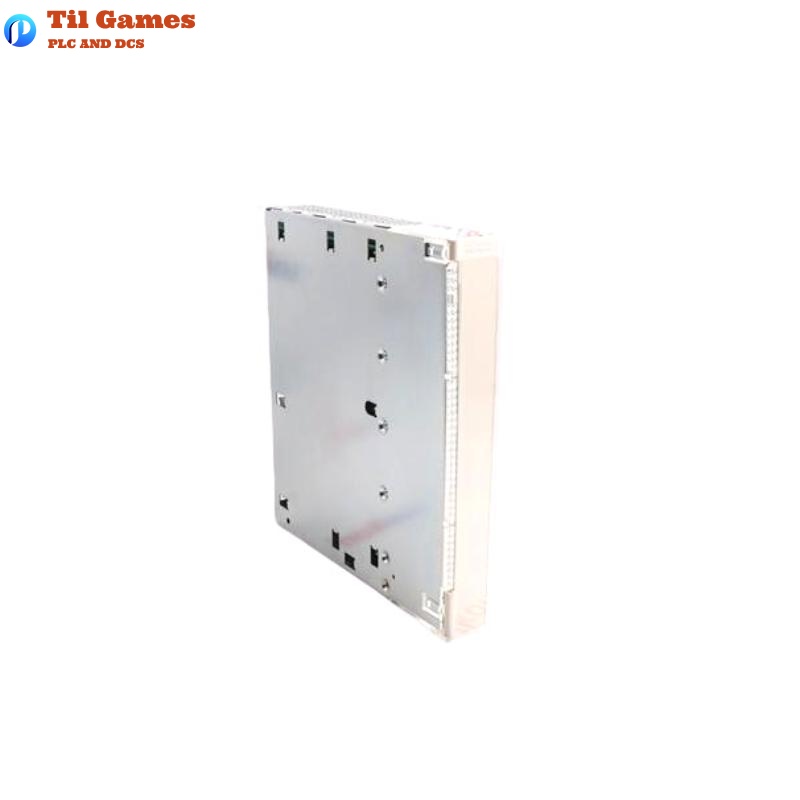

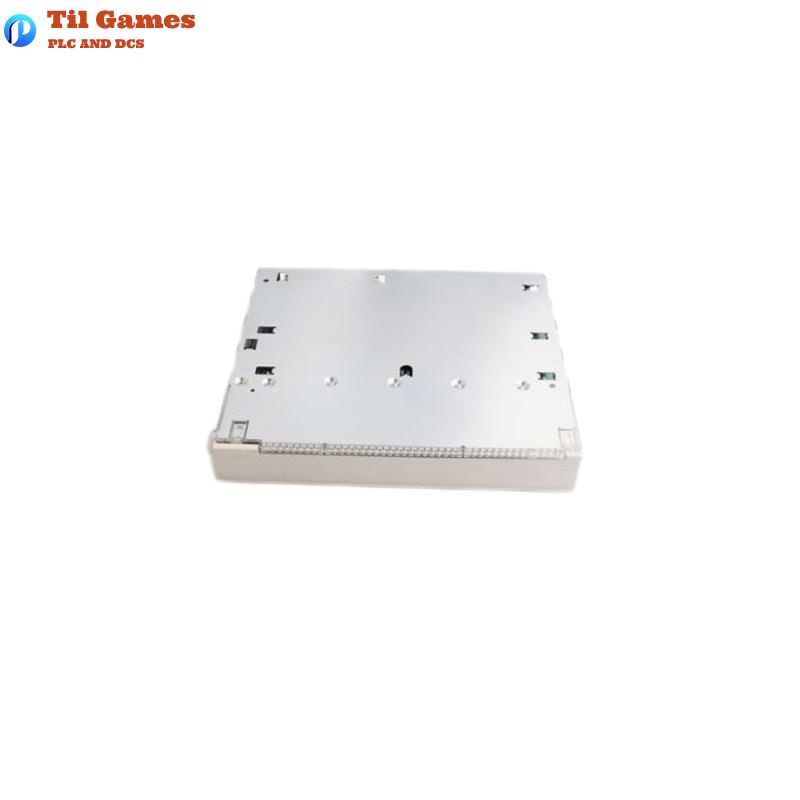

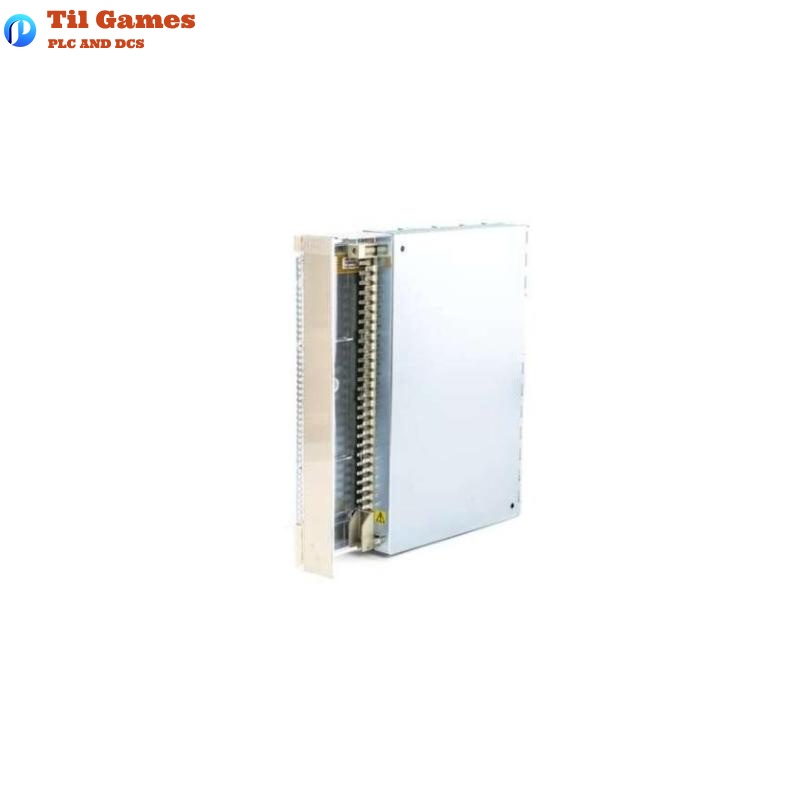

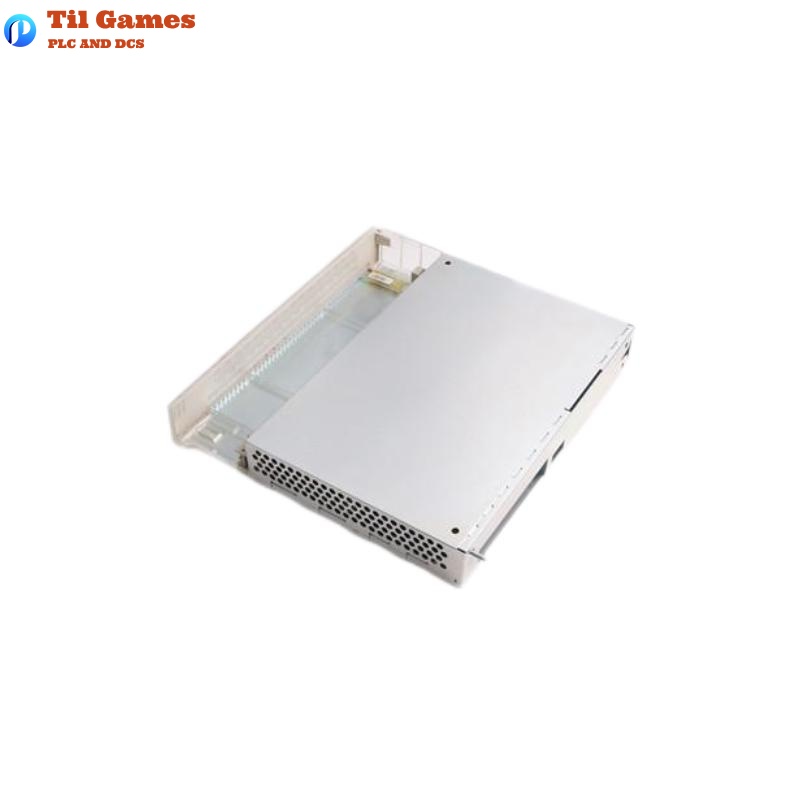

| Model Number | AO610 |
| Ordering Code | 3BHT300008R1 |
| Analog Output | 16 channels |
| Resolution | 12 bits |
| Output Signal | 0–20 mA, 0–10 V |
| Isolation | Opto-isolated as one group |
| Series | S600 I/O |
| Mounting Type | Modular installation in S600 subrack |
| Dimensions | 252 × 273 × 40 mm |
| Weight | 1.25 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What types of output signals does the AO610 support?
A1: The AO610 supports 0–20 mA current and 0–10 V voltage analog outputs.
Q2: How many channels does the AO610 provide?
A2: It provides 16 analog output channels.
Q3: Is the AO610 opto-isolated?
A3: Yes, the channels are opto-isolated as one group.
Q4: What is the resolution of AO610?
A4: The resolution is 12 bits.
Q5: Which control systems is the AO610 compatible with?
A5: It is designed for use with ABB Advant Controller 160 within the S600 I/O architecture.
Q6: What are typical applications for AO610?
A6: Commonly used in process control systems for analog outputs to drive actuators, valves, or variable frequency drives.
Q7: Does AO610 support redundancy?
A7: The AO610 itself is not redundant but can be part of a system-level redundant configuration.
Q8: How is AO610 typically wired?
A8: Wiring is usually done via the front connector TF620 with screw terminals or corresponding terminal blocks.
Tags
Packing & Delivery
We will use wear-resistant cartons to seal the boxes, and take photos for your confirmation before sealing. We will pack the boxes only after confirmation.
For express delivery, we will use DHL, UPS, TNT, FedEx and EMS.
Please rest assured that we have a deep cooperation with express delivery companies and can ensure that your goods are delivered to you in good condition.
