Technical Specifications
| Category | Details |
|---|---|

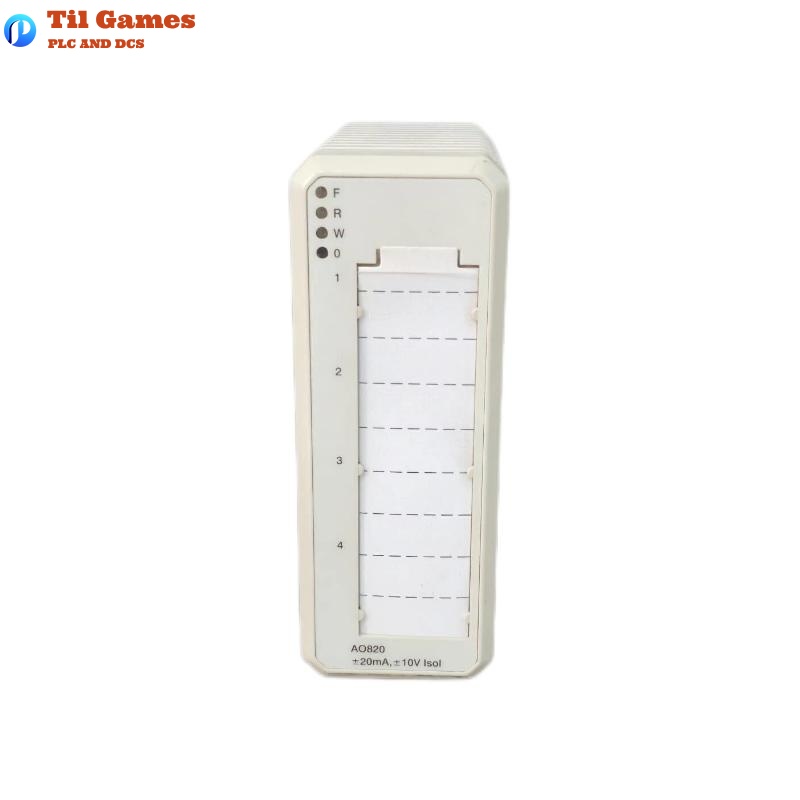

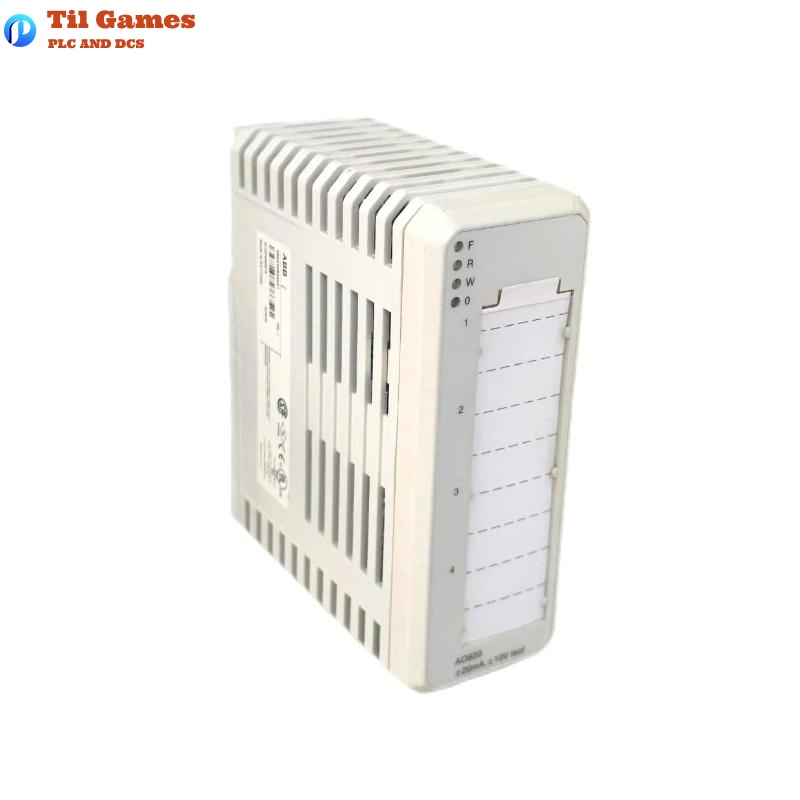

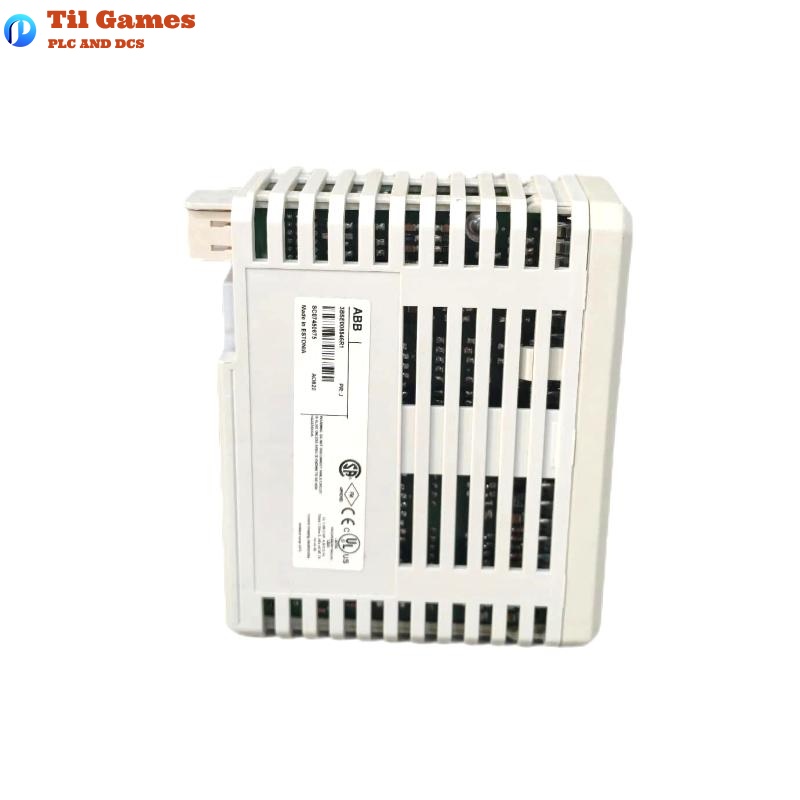

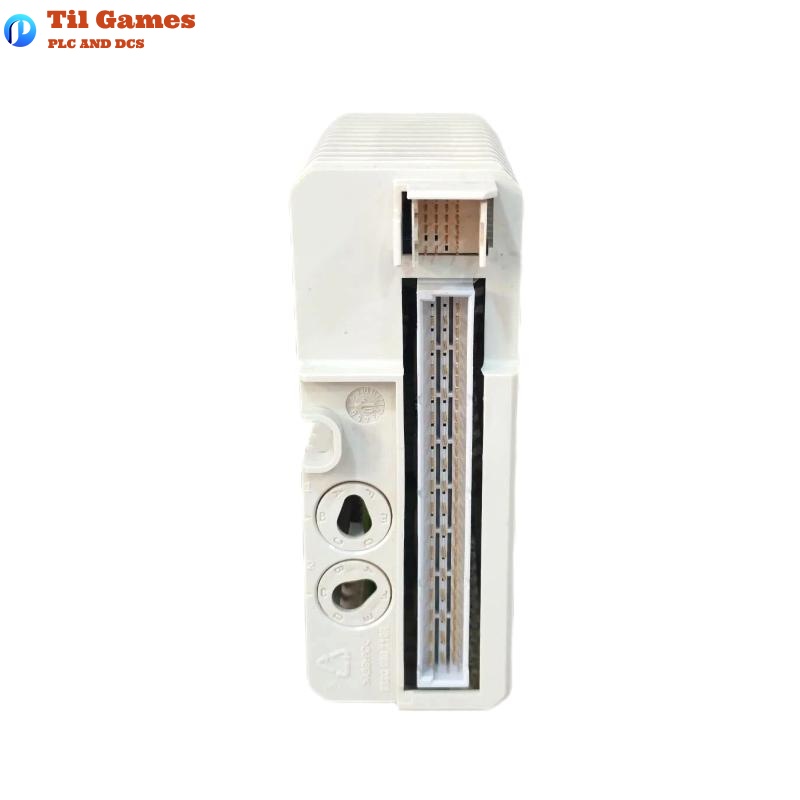

| Module Type | AO820 |
| Article Number | 3BSE008546R1 |
| Type | Analog Output |
| Number of Channels | 4 channels |
| Signal Range | -20 mA…+20 mA, 0…20 mA, 4…20 mA, -10 V…+10 V, 0…10 V, 2…10 V |
| Resolution | 12 bits including sign |
| Isolation | Channel-to-channel and channel-to-common individually isolated |
| Temperature Drift | Max 90 ppm/°C |
| Output Load | Current: ≤ 550 Ω; Voltage: ≥ 5 kΩ |
| Output Error | Voltage Max: 0.1%; Current Typical: 0.1% (250Ω), Max: 0.15% |
| Rise Time | < 0.7 ms |
| Update Cycle | ≤ 1.5 ms |
| Current Limiting | Short circuit proof |
| Max Field Cable Length | 600 meters |
| Rated Insulation | 50 V |
| Dielectric Strength | 500 VAC |
| Power Dissipation | Typ. 6 W |
| Current Consumption | +5 V: Max 100 mA; +24 V: Max 260 mA |
| Diagnostics LEDs | F (Fault), R (Run), W (Warning), O (OSP) |
| Diagnostics Functions | Module error, low output power, open circuit (>1 mA) |
| Compatible MTUs | TU810, TU812, TU814, TU830, TU833 |
| Dimensions (WxDxH) | 45 x 102 x 119 mm |
| Weight | 0.18 kg |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Humidity | 5% to 95%, non-condensing |
| Protection Class | IP20 (IEC 60529) |
| EMC Standards | EN 61000-6-4, EN 61000-6-2 |
| Certifications | CE, UL, ATEX Zone 2, ABS, BV, DNV, LR |
| Installation Category | Class I (IEC 61140) |
| Environmental Compliance | RoHS 2011/65/EU, WEEE 2012/19/EU |
FAQ
Frequently Asked Questions (FAQ)
Q1: Does the AO820 support simultaneous voltage and current output per channel?
A1: No, each channel can be configured for either voltage or current output, not both at the same time.
Q2: Is HART communication supported by the AO820?
A2: No, the AO820 does not support HART protocol.
Q3: Does the module have automatic diagnostic functions in case of output faults?
A3: Yes, it supports diagnostics for low output power and open circuit conditions and reports them via LED indicators and ModuleBus.
Q4: What is the output accuracy of the AO820?
A4: Voltage output has a max error of 0.1%. Current output typically has 0.1% error at 250Ω, and a max of 0.15%.
Q5: Does the module support redundancy?
A5: No, redundancy is not supported on the AO820 module.
Q6: Is the AO820 certified for intrinsic safety?
A6: No, the module does not support intrinsic safety certifications.
Q7: What is the maximum cable length supported?
A7: The AO820 supports a maximum field cable length of 600 meters.
Q8: Which MTUs are compatible with AO820?
A8: The module is compatible with TU810, TU812, TU814, TU830, and TU833.
