Technical Specifications
| Parameter | Description |
|---|---|

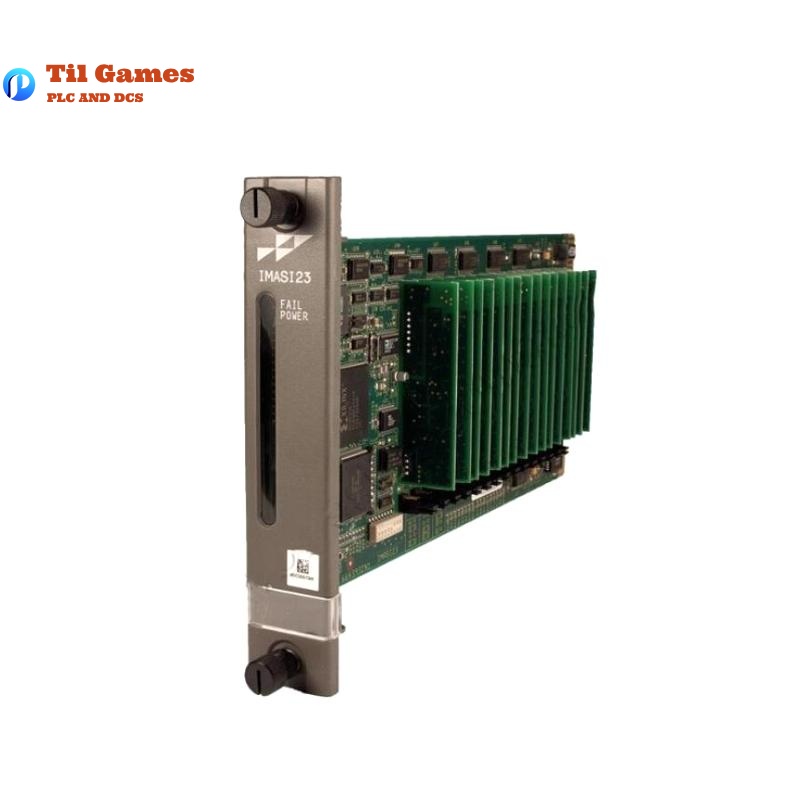

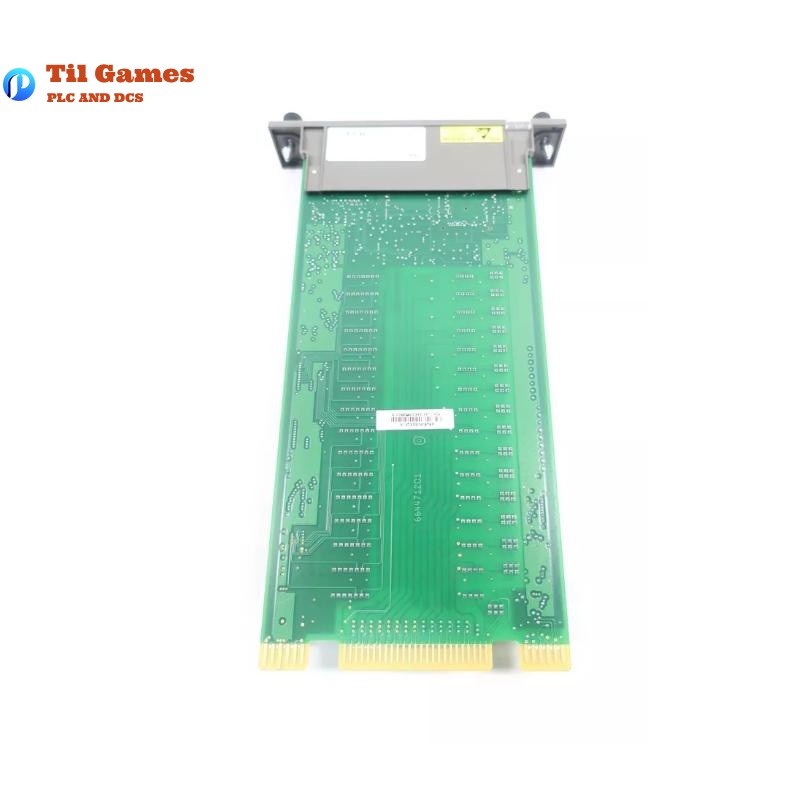

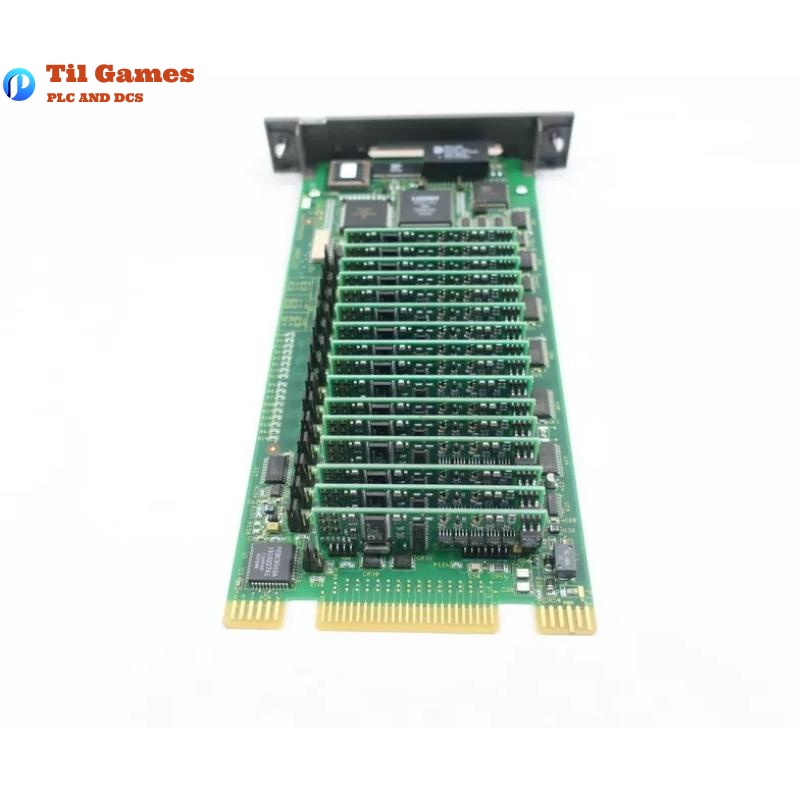

| Module Type | Analog Input Module (IMASI23) |
| Input Channels | 16 isolated analog input channels |
| Supported Signal Types | Millivolt, Thermocouple, RTD, 1–5 VDC, 4–20 mA |
| A/D Converter | Delta-sigma type, isolated per channel |
| Cold Junction Compensation | Integrated, RTD-based in termination unit |
| Termination Unit | NTAI06 (via NKAS01 or NKAS11 cable) |
| Bus Interface | I/O Expander Bus (P2 Connector) |

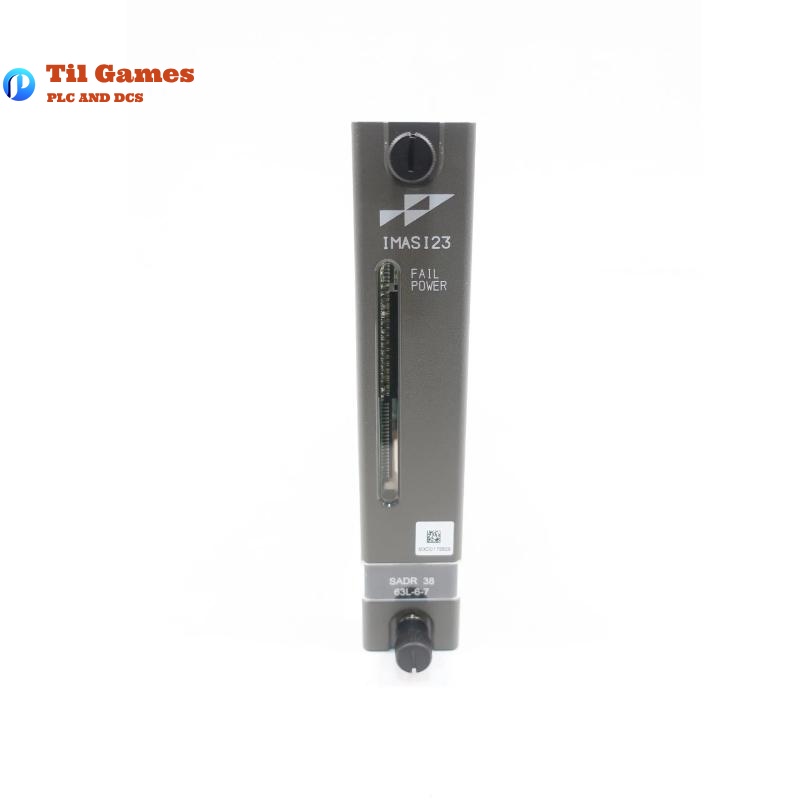

| Status Indicators | 1 Red LED, 1 Green LED |
| Diagnostics | Power-up, online, and reset diagnostics |
| Memory | Dual-port RAM, PROM, SRAM, NVRAM |
| Configuration Method | Function Codes (FC 215, FC 216, FC 217) |
| Power Supply | +5 VDC from MMU backplane (P1 Connector) |
| Mounting | Harmony Module Mounting Unit (IEMMU series) |
| Dimensions | 279.4 mm × 355.6 mm × 55.4 mm |
| Weight | 0.4 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the maximum number of analog input channels supported by the IMASI23 module?
A1: The IMASI23 module supports up to 16 isolated analog input channels.
Q2: What types of analog signals are compatible with this module?
A2: It supports millivolt, thermocouple, RTD, 1 to 5 VDC, and 4 to 20 mA signals.
Q3: Does the module provide cold junction compensation for thermocouple inputs?
A3: Yes, the module uses built-in RTDs in the termination unit for accurate cold junction compensation.
Q4: What diagnostic capabilities are included in the IMASI23?
A4: The module includes power-up self-tests, reset diagnostics, real-time monitoring, and watchdog timers.
Q5: How is configuration data set for the module?
A5: Through function codes: FC 215 for module configuration, FC 216 for channel configuration, and FC 217 for user calibration.
Q6: Is field calibration required for this module?
A6: Normally not required, as the module is factory-calibrated. Field calibration is optional if precision references are available.
Q7: What happens if a field wire is disconnected or input is open?
A7: The module detects and reports open input conditions as bad quality on the corresponding channels.
Q8: What termination unit and cable are required for connection to field wiring?
A8: The NTAI06 termination unit and either NKAS01 or NKAS11 cable are required for field signal connection.
