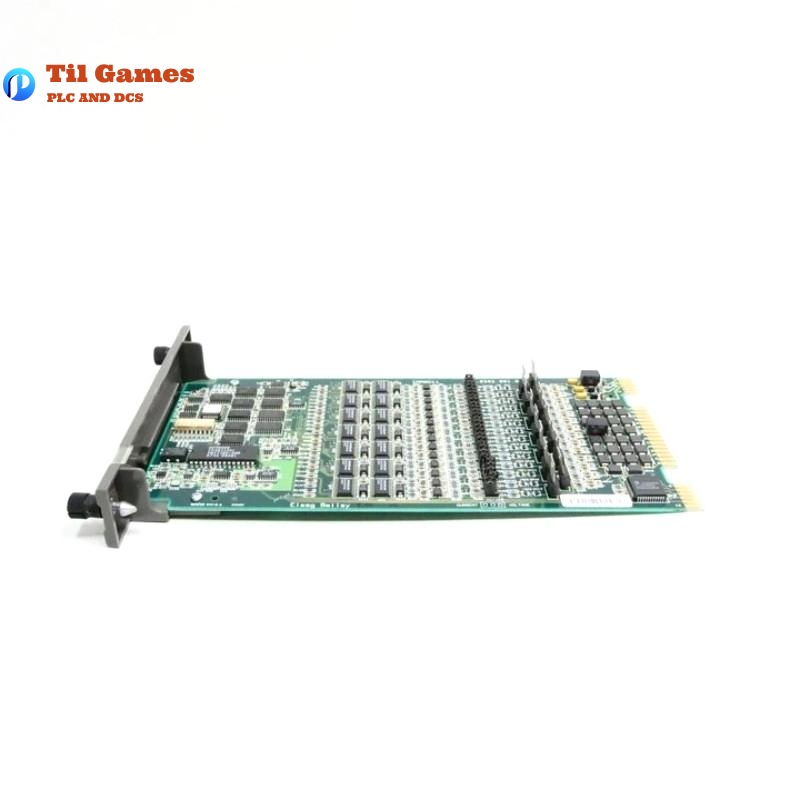

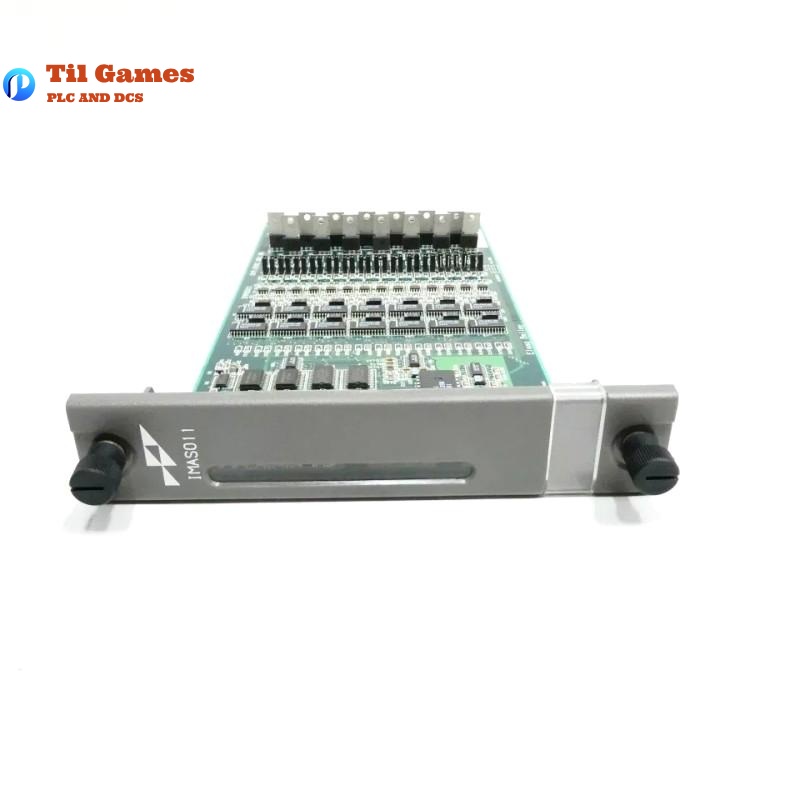

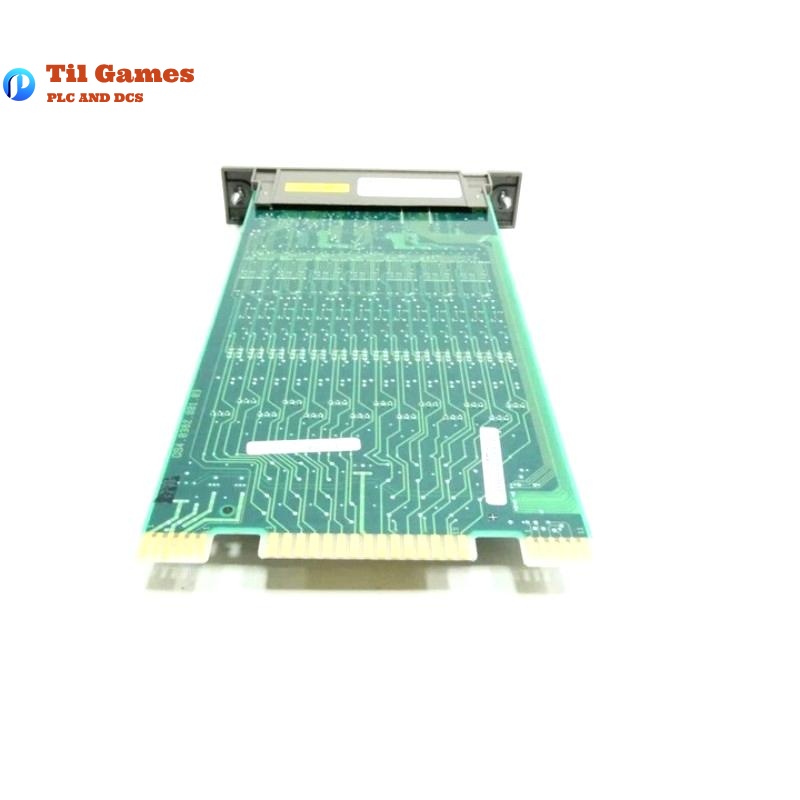

Technical Specifications
| Parameter | Description |
|---|---|
| Number of Output Channels | 14 analog channels |
| Output Type | Voltage: 1–5 VDC; Current: 4–20 mA |
| Resolution | 10-bit |
| Voltage Mode Accuracy | ≤0.15% |
| Current Mode Accuracy | ≤0.25% |
| Voltage Mode Load | ≥22 kΩ |
| Current Mode Load | ≤750 Ω |
| Output Current Limit | 50 mA (nominal) |
| Power Supply | +5 VDC (480 mA), +15 VDC (200 mA), -15 VDC (195 mA), +24 VDC (310 mA) |
| Power Consumption | +5V: 3.75W; +15V: 5.25W; -15V: 3.75W |
| Default Output on Startup | All outputs default to 0% (1 VDC or 4 mA) |
| Module Mounting | Occupies one slot in standard INFI 90 Module Mounting Unit |
| Status Indication | LED: Green – Normal; Red – Bus Fault; Off – Not Powered/Enabled |
| Operating Temperature | 0°C to 70°C |
| Relative Humidity | 0–95% at 55°C; 0–45% at 70°C (non-condensing) |
| Surge Protection | IEEE-472-1974 compliant |
| Dimensions (L×W×H) | 271.78 × 358.14 × 73.66 mm |
| Weight | 0.34 kg |
| Environment | Non-corrosive, general-purpose industrial control environment |
| Safety Certification | CSA certified |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many analog outputs does the IMASO01 module provide?
A1: It provides up to 14 independent analog output channels.
Q2: How is the output mode (voltage/current) configured?
A2: Each channel’s mode is set individually using DIP switches S2 to S15 on the module.
Q3: What happens to the outputs on startup or communication loss?
A3: All outputs default to 0% (1 V or 4 mA); during a communication timeout, outputs follow the preset configuration: 0%, 100%, or hold last value.
Q4: Does the module have short circuit protection?
A4: Yes, each output is limited to approximately 50 mA to protect against short circuits.
Q5: Can the module be hot-swapped?
A5: Yes, the module can be inserted or removed without powering down the system.
Q6: What does a red LED on the module indicate?
A6: A red LED indicates a bus fault or communication timeout with the master module.
Q7: What are the load limitations for the outputs?
A7: Voltage mode requires a minimum of 22 kΩ load; current mode allows a maximum of 750 Ω.
Q8: How does the module connect to field devices?
A8: The module connects to either NTDI01 or NIDI01 termination units via the P3 connector and uses terminal blocks for wiring to field devices.
