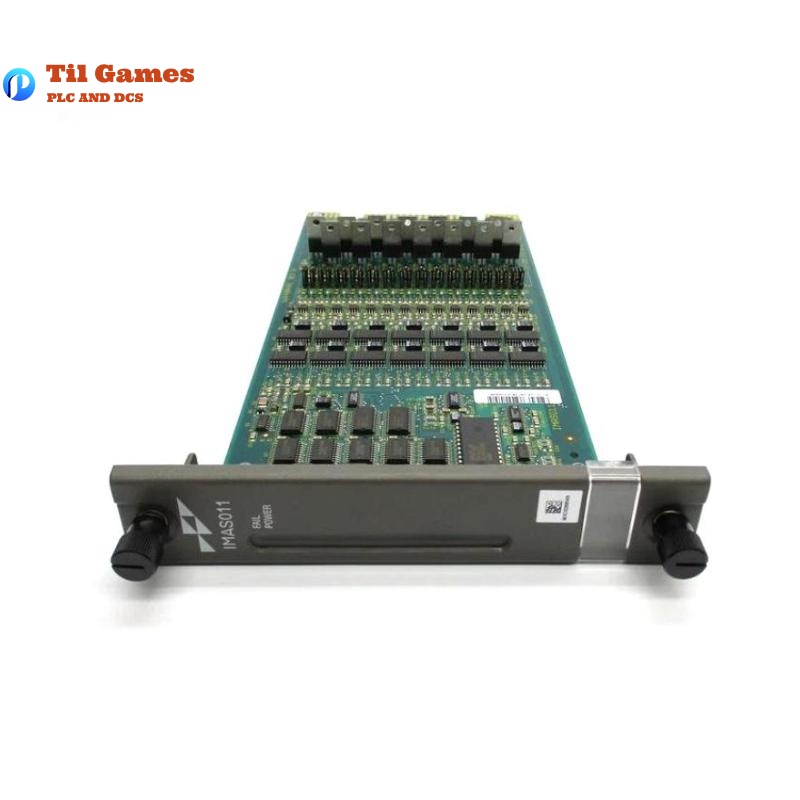

Technical Specifications
| Parameter | Description |
|---|---|
| Number of Channels | 14 analog output channels |
| Output Types | 1–5 VDC or 4–20 mA (jumper selectable per channel) |
| D/A Resolution | 10 bits |
| Output Accuracy | ≤0.15% (voltage mode) ≤0.25% (current mode) |
| Current Load | Maximum 750 ohms |
| Voltage Load | Minimum 22 kΩ |
| Output Protection | 50 mA nominal current limit per channel |
| Power Requirements | +5 VDC (250 mA) +15 VDC (100 mA) -15 VDC (90 mA) +24 VDC (310 mA from TU/TM) |
| Power Dissipation | +5 VDC: 1.5 W +15 VDC: 2 W -15 VDC: 1.75 W +24 VDC: 8 W |
| Operating Temp. | 0°C to 70°C |
| Relative Humidity | 0%–95% at 55°C, 0%–45% at 70°C (non-condensing) |
| Altitude | Up to 3000 meters |
| EMC Compliance | IEC 801-4, 801-5, 801-6 compliant |
| Mounting | Occupies one slot in INFI 90 OPEN standard rack |
| CE Compliance | Meets EMC 89/336/EEC and LVD 73/23/EEC |
| Safety Approvals | CSA Certified, FM Pending: Class I Div 2 Groups A-D |
| Dimensions (mm) | 271.78 × 358.14 × 73.66 mm |
| Weight | 0.612 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many analog outputs does the IMASO11 provide?
A1: It provides 14 independent analog output channels.
Q2: What are the voltage and current output ranges?
A2: Voltage: 1–5 VDC; Current: 4–20 mA.

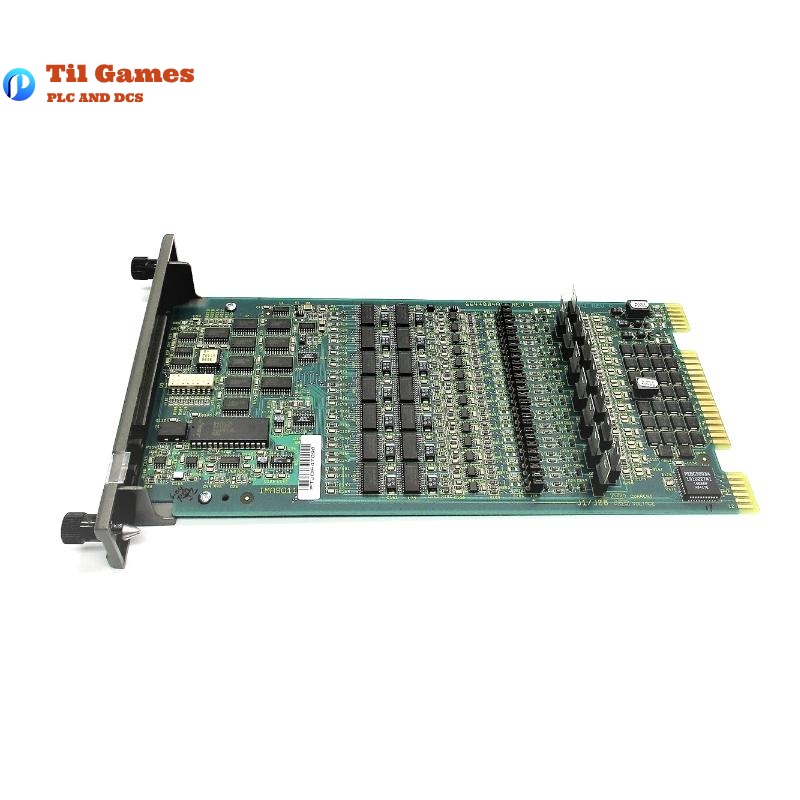

Q3: How are output modes selected per channel?
A3: Each output is configured via onboard jumpers J1–J28; 1-2 for current, 2-3 for voltage.
Q4: Does it support output overcurrent protection?
A4: Yes, each output is current-limited to a nominal 50 mA.
Q5: What happens on communication loss or power-up?
A5: Outputs go to a configured default: 0%, 100%, or Hold last value.
Q6: Can the module be replaced while powered?
A6: Yes, the IMASO11 supports hot-swapping without power interruption.

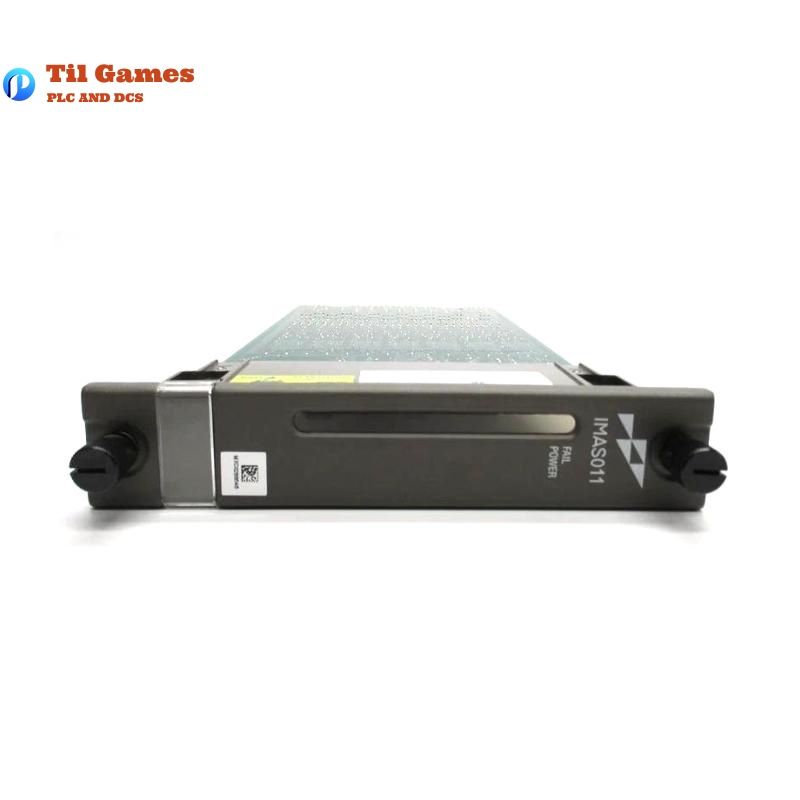

Q7: What do the front panel LEDs indicate?
A7: Green ON = normal; Red ON = bus fault or timeout.
Q8: Is any special handling required during installation?
A8: Yes, ESD precautions are mandatory using grounding straps and antistatic tools.
