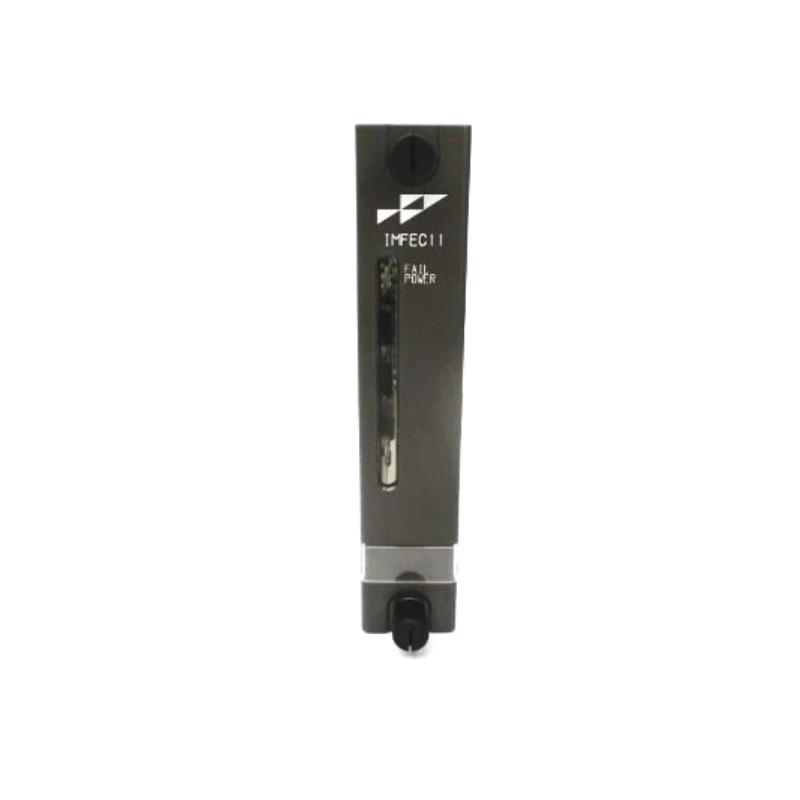

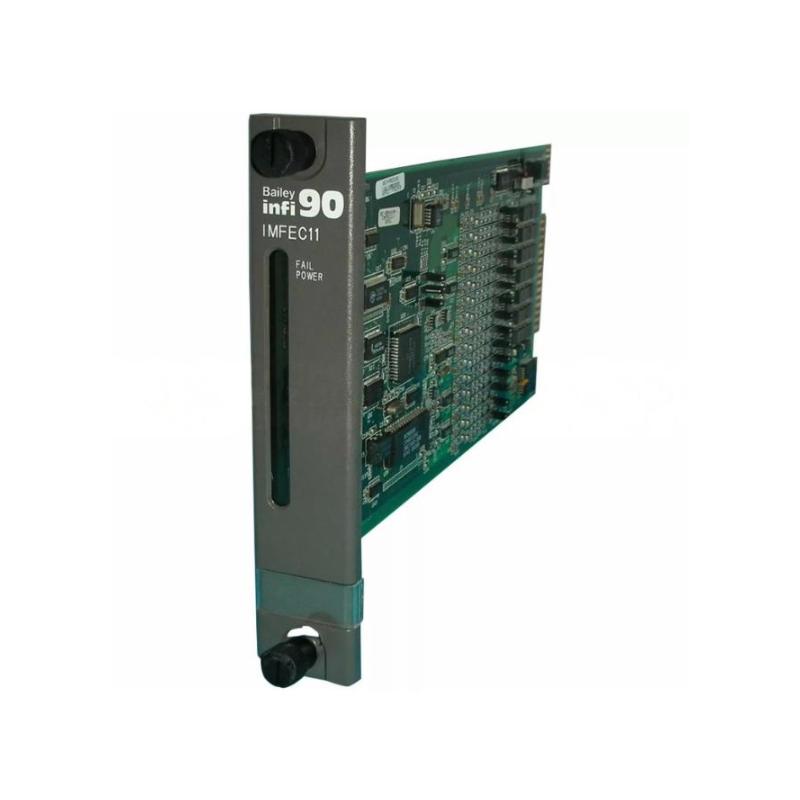

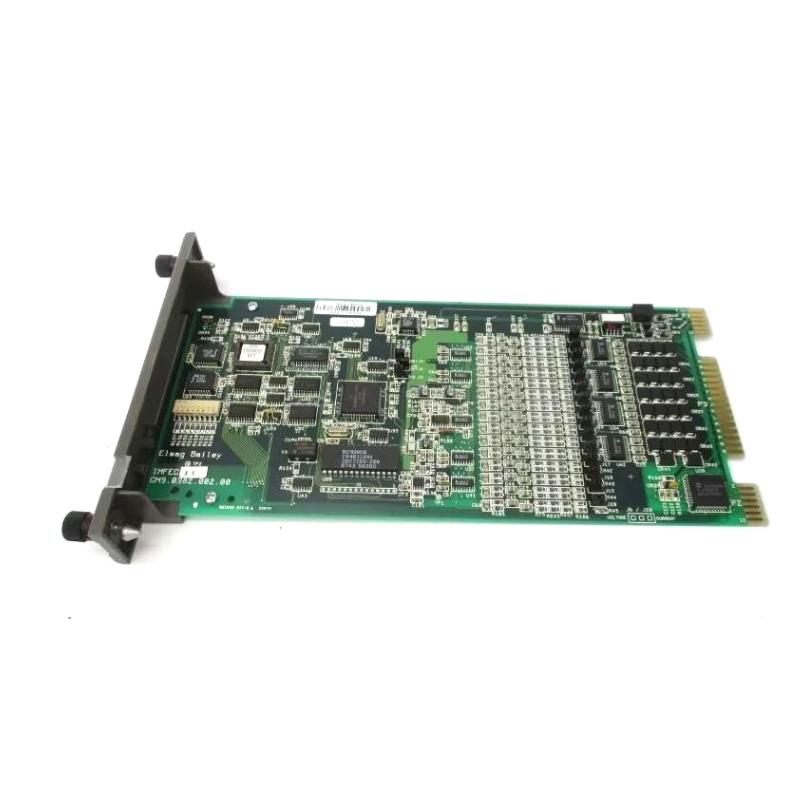

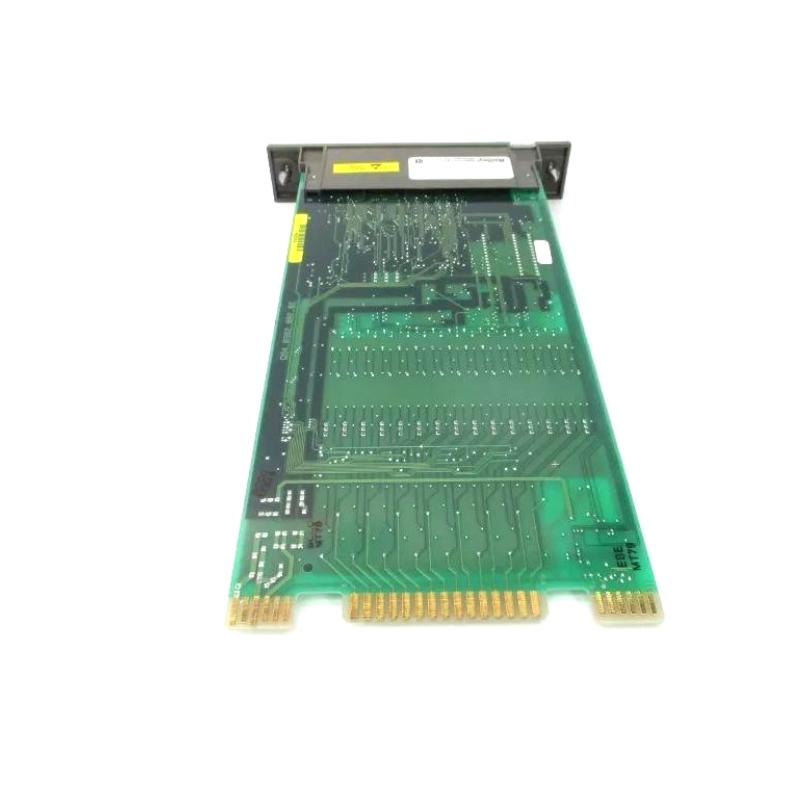

Technical Specifications
| Parameter | Value |
|---|---|
| Input Channels | 15 independently configurable analog or FSK digital input channels |
| Input Ranges | 4-20 mA, 1-5 VDC, 0-1 VDC, 0-5 VDC, 0-10 VDC, -10 to +10 VDC |
| Input Impedance | >1 MΩ per channel |
| A/D Conversion Rate | 5 conversions per second |
| A/D Resolution | 14-bit with polarity |
| FSK Digital Update Rate | 3 to 10 times/sec (in field bus mode) |
| Analog Accuracy | 0.1% (for most ranges), 0.25% (0-1 VDC) |
| Common Mode Rejection | ≥90 dB at 50/60 Hz |
| Normal Mode Rejection | ≥70 dB at 50/60 Hz |
| Common Mode Voltage | -12 VDC to +15 VDC |
| Operating Temperature | 0 to 55°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Power Requirements | +5 VDC @ 85 mA, +15 VDC @ 25 mA, -15 VDC @ 20 mA |
| Power Dissipation | 1.1 W typical |
| Dimensions (W x D x H) | 132 x 25 x 125 mm |
| Weight | 0.567 kg |
| Mounting | One slot in INFI 90 OPEN module mounting unit |
| Certification | CSA, FM (pending), CE (EMC & LVD compliant) |
| Communication Baud Rate | 9600 baud |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many input channels does the IMFEC11 module support?
A1: The IMFEC11 supports 15 independently configurable analog or FSK digital input channels.
Q2: What are the supported signal types for analog inputs?
A2: The module accepts 4-20 mA, 1-5 VDC, 0-1 VDC, 0-5 VDC, 0-10 VDC, and -10 to +10 VDC input signals.
Q3: Can the IMFEC11 module interface with smart transmitters?
A3: Yes, it supports communication with Bailey-Fischer & Porter smart transmitters via FSK protocol.
Q4: What is the resolution of the analog-to-digital converter?
A4: The A/D converter provides 14-bit resolution including polarity.
Q5: What is the update rate for FSK digital inputs?
A5: The update rate is 3 to 10 times per second in FSK field bus mode.
Q6: What is the power consumption of the module?
A6: Typical power dissipation is 1.1 W.
Q7: What are the dimensions and weight of the IMFEC11 module?
A7: The module measures 132 x 25 x 125 mm and weighs 0.567 kg.
Q8: Is the IMFEC11 certified for hazardous locations?
A8: It has CSA and pending FM approvals for use in Class I Division 2 and Class II Division 2 locations.
