Technical Specifications
| Parameter | Specification |
|---|---|
| Processor | 32-bit, 16 MHz |
| ROM | 512 KB |
| RAM | 512 KB (347,712 bytes usable) |
| NVRAM | 256 KB (194,752 bytes usable) |
| Serial Ports | 2 ports: RS-232-C / RS-485 (max 19.2 kbaud) |
| Redundant Link | 1 Mbaud serial connection |
| Station Link Support | Up to 64 stations at 40 kbaud or 8 stations at 5 kbaud |
| Controlway | Peer-to-peer 1 Mbaud bus |
| Power Supply | +5 VDC @ 2 A, 10W typical |
| Programming Languages | C, BASIC, BATCH, Ladder, Function Codes |
| Operating Modes | Execute, Configure, Error |
| Mounting | One slot in INFI 90 OPEN module mounting unit |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Relative Humidity | 5–95% up to 55°C, 5–45% above 55°C (non-condensing) |
| Altitude | Up to 3000 m |
| Certification | CSA, FM Class I Div. 2 |
| Dimensions (W x H x D) | 35.56 x 177.80 x 298.45 mm |
| Weight | 0.78 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the IMMFP12 module?
A1: It is a multifunction processor used for complex control strategies, data acquisition, and peer-to-peer communications in the INFI 90 OPEN system.
Q2: How many modules can IMMFP12 communicate with?
A2: It supports communication with up to 64 I/O modules in any combination of analog and digital types.
Q3: What happens if the primary IMMFP12 fails in a redundant system?
A3: The backup IMMFP12 takes control immediately through a 1 Mbaud redundancy link, ensuring a seamless transition.
Q4: Which programming methods are supported by IMMFP12?
A4: It supports programming via C, BASIC, BATCH, ladder logic, and function codes.
Q5: How is redundancy configured between two IMMFP12 modules?
A5: Through a dedicated serial redundancy link. Both modules must use identical firmware versions.
Q6: Can the IMMFP12 be hot-swapped?
A6: Yes, but the STOP/RESET button must be pressed before removal to ensure safe handover in redundant setups.

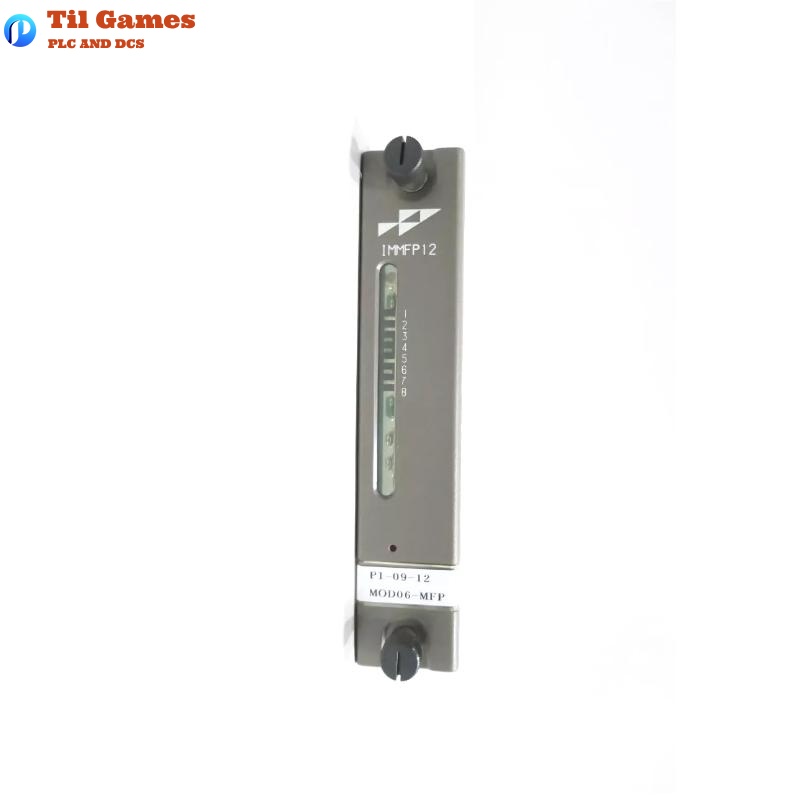

Q7: What diagnostic information is available if there’s a fault?
A7: Error codes are displayed through LEDs 1–8. The combination indicates specific issues, such as NVRAM errors or bus faults.
Q8: Is the module compatible with both Plant Loop and INFI-NET?
A8: Yes, but the configuration must be initialized specifically for the selected environment.
