Technical Specifications
| Parameter | Value |
|---|---|

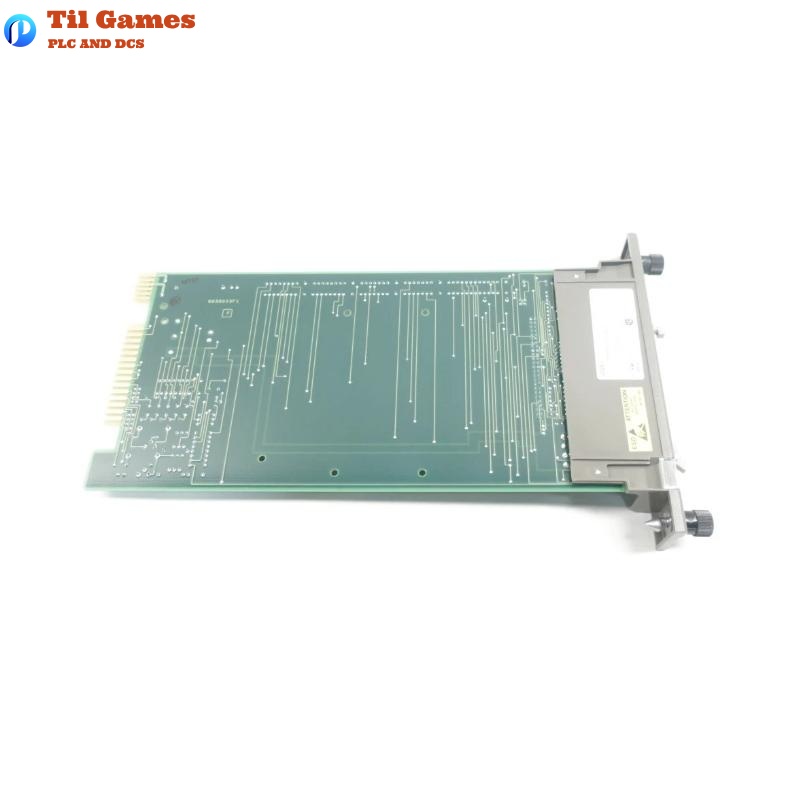

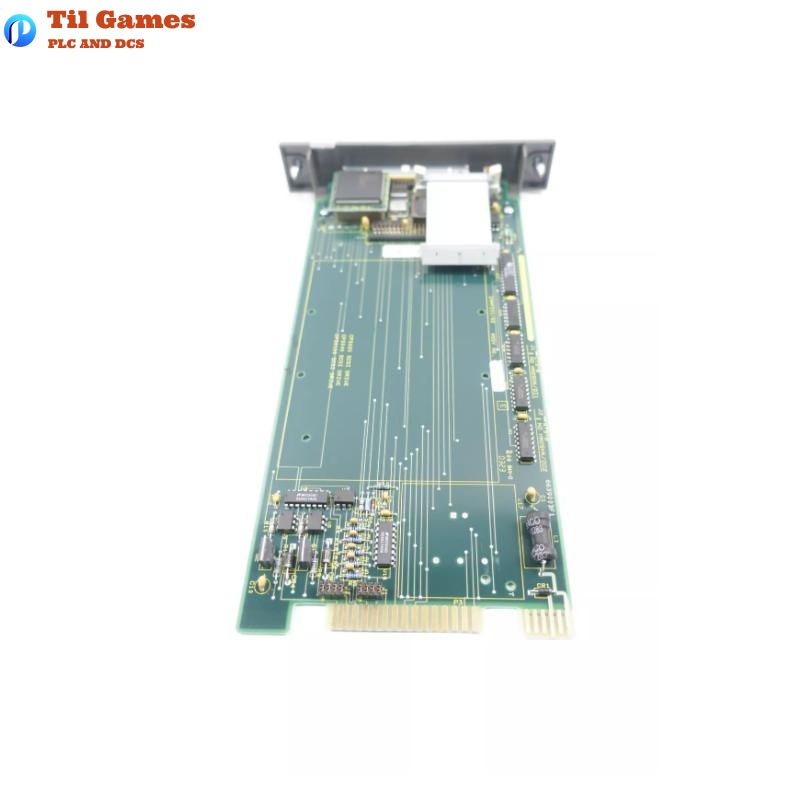

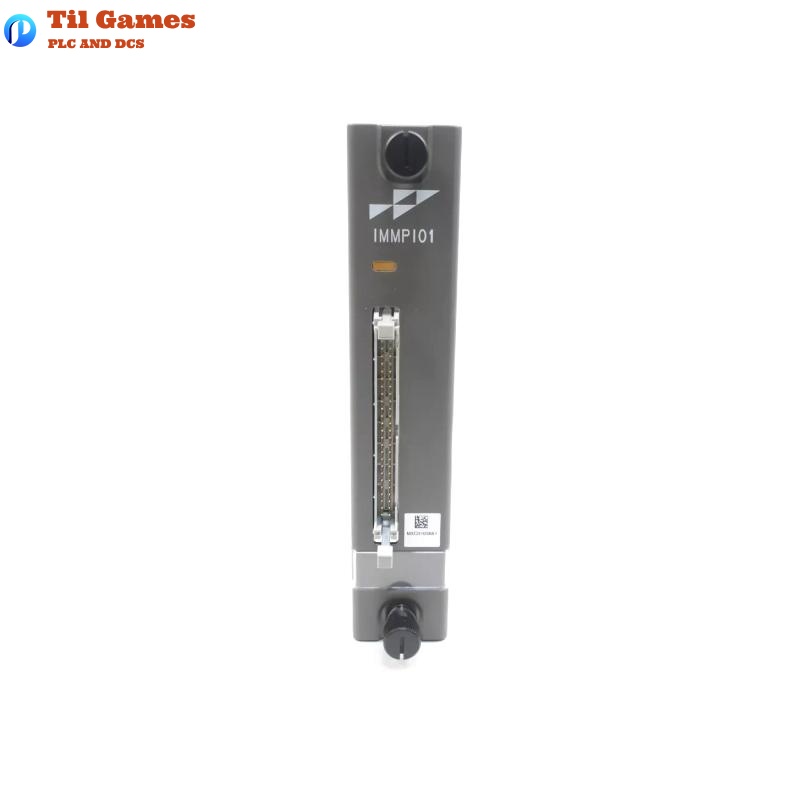

| Model | IMMPI01 |
| Communication Ports | Two RS-232-C ports, One SCSI port |
| Communication Type | RS-232-C or SCSI (selectable) |
| Power Supply | +5 VDC at 415 mA |
| Power Consumption | 2.08 Watts typical |
| Module Type | Multifunction Processor Interface |
| Interface Connection | 60-pin ribbon cable to INICT03 module |
| Mounting Type | Occupies one slot in module mounting unit |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Relative Humidity | 5% to 90% (non-condensing up to 55°C), 5% to 40% above 55°C |
| Altitude Range | Sea level to 3,000 m |
| Certification | CSA approved; FM (Class I, Division 2) |
| Dimensions (W x H x D) | 178 mm x 51 mm x 330 mm |
| Weight | 0.5 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the purpose of the IMMPI01 module?
A1: It serves as the interface between the host computer and INICT03, supporting communication via RS-232-C or SCSI.
Q2: How does the module connect to the host system?
A2: It connects via a 60-pin ribbon cable to the INICT03 and uses either RS-232-C ports through an NTMP01 termination unit or a direct SCSI port.
Q3: Can the IMMPI01 module operate independently?
A3: No, it must be paired with an INICT03 module to function properly.
Q4: What type of signal handshake is used in RS-232-C communication?
A4: It uses RTS (Request to Send) or CTS (Clear to Send), selectable via jumpers.
Q5: Does this module support hot swapping?
A5: No, it must be powered down properly before removal or installation.
Q6: How is power supplied to the IMMPI01 module?
A6: Power is supplied via the P1 connector from the backplane (+5 VDC at 415 mA).
Q7: Is there any configuration required before operation?
A7: Yes, jumper settings must be correctly configured based on the system design.
Q8: What termination unit is required for RS-232-C operation?
A8: The NTMP01 multifunction processor termination unit is required for RS-232-C communication.
