Technical Specifications
| Item | Specification |
|---|---|
| Model | NKTU01-10 |

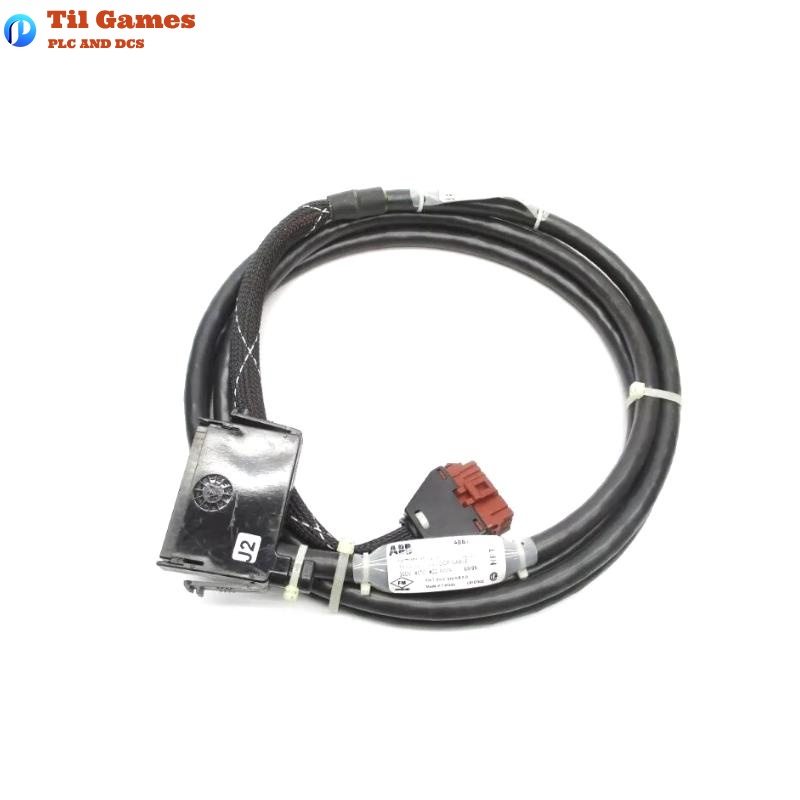

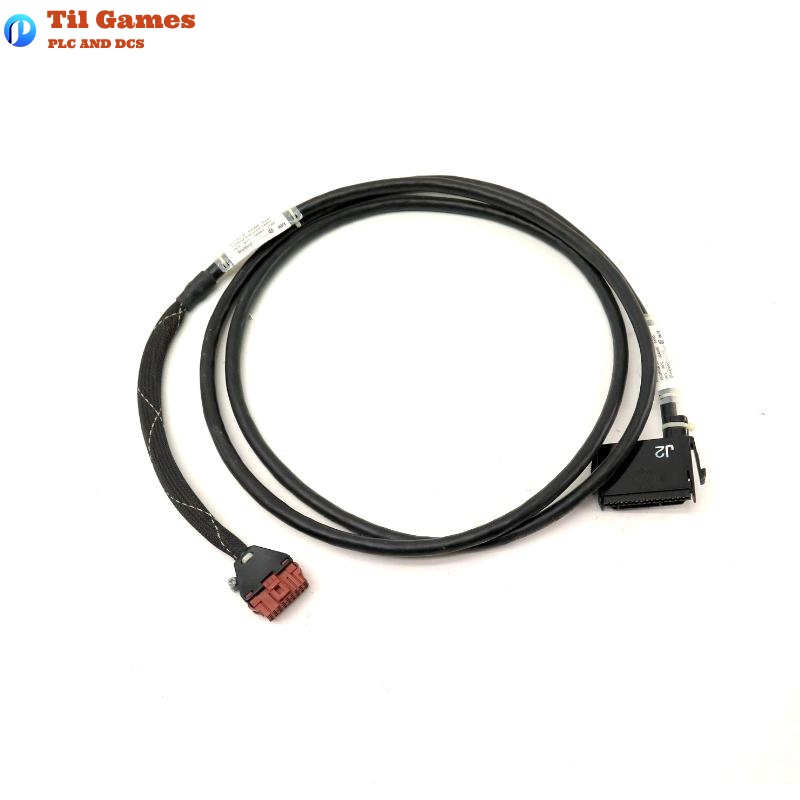

| Product Name | Infi 90 Termination Loop Cable |
| Type | Termination Cable |
| Application System | INFI 90 Process Control System |
| Cable Function | Connects NTDI01 Termination Unit to Master/Slave Module |
| Cable Length | 10 ft |

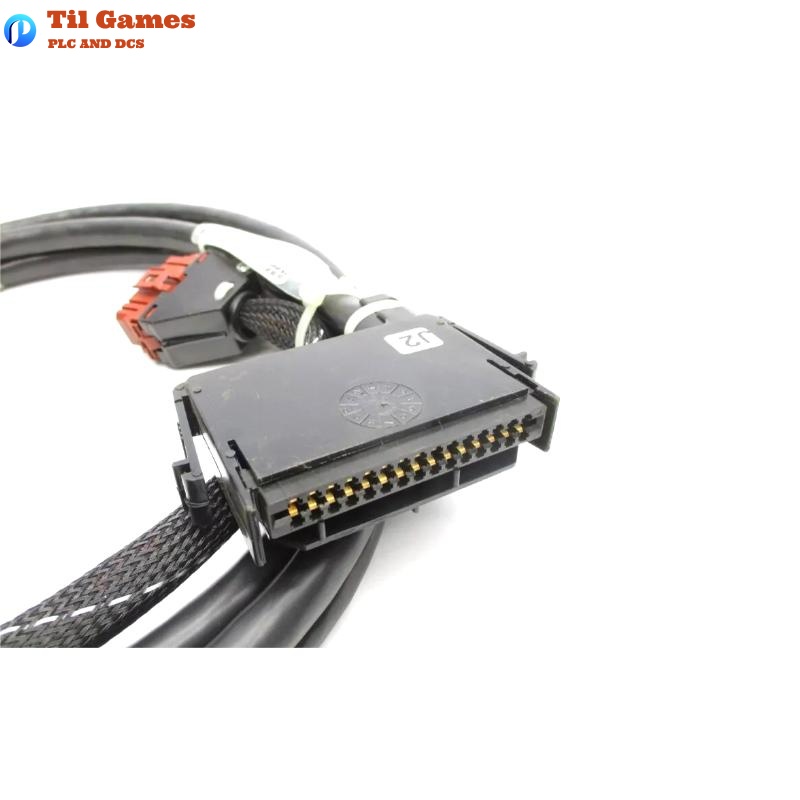

| Connector Type | Hooded plug (to module P3 slot) and socket (to NTDI01 P1) |
| Compatible Modules | IMASO01, IMDSI02, IMDSM04, IMDSM05, IMDSO01/02/03/04 |
| Mounting Method | Plug-in, secured on the termination panel |
| Operating Temperature | 0°C to 70°C |
| Relative Humidity | 0% to 95% up to 55°C (non-condensing) |
| Altitude | Sea level to 3 km |
| Air Quality | Non-corrosive |
| Certification | CSA certified for ordinary (non-hazardous) locations |
| Shipping Weight | 3 kg |
FAQ
FAQ
Q1: What is the main function of the NKTU01-10 cable?
A1: It connects the NTDI01 termination unit with a master/slave module in ABB’s INFI 90 system for I/O signal transmission.
Q2: Which modules are compatible with NKTU01-10?
A2: It is compatible with IMASO01, IMDSI02, IMDSM04, IMDSM05, and IMDSO01/02/03/04 modules.
Q3: Can the cable length be customized?
A3: The standard length is 10 ft. For other lengths, please consult ABB sales for custom options.
Q4: What are the connection types on both ends of the cable?
A4: One end is a hooded plug (to master/slave P3), and the other is a socket (to NTDI01 P1).
Q5: Are there any ESD precautions during installation?
A5: Although the cable itself isn’t ESD-sensitive, using an ESD kit is recommended to protect surrounding modules.
Q6: How many I/O channels can the cable support?
A6: It supports up to 16 I/O points corresponding to XU1 through XU16 on the NTDI01.
Q7: Can the cable be used in corrosive environments?
A7: No, it should be used in clean, non-corrosive environments such as control rooms.
Q8: Does the cable require regular maintenance?
A8: No routine maintenance is needed, but connection integrity should be checked during system shutdowns.
