Technical Specifications
| Parameter | Description |
|---|---|

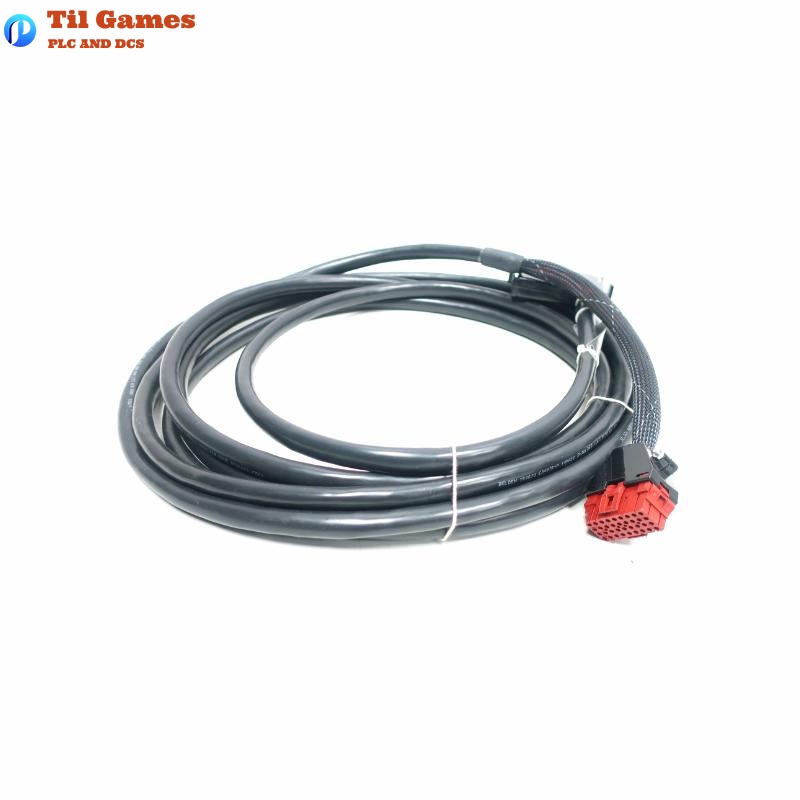

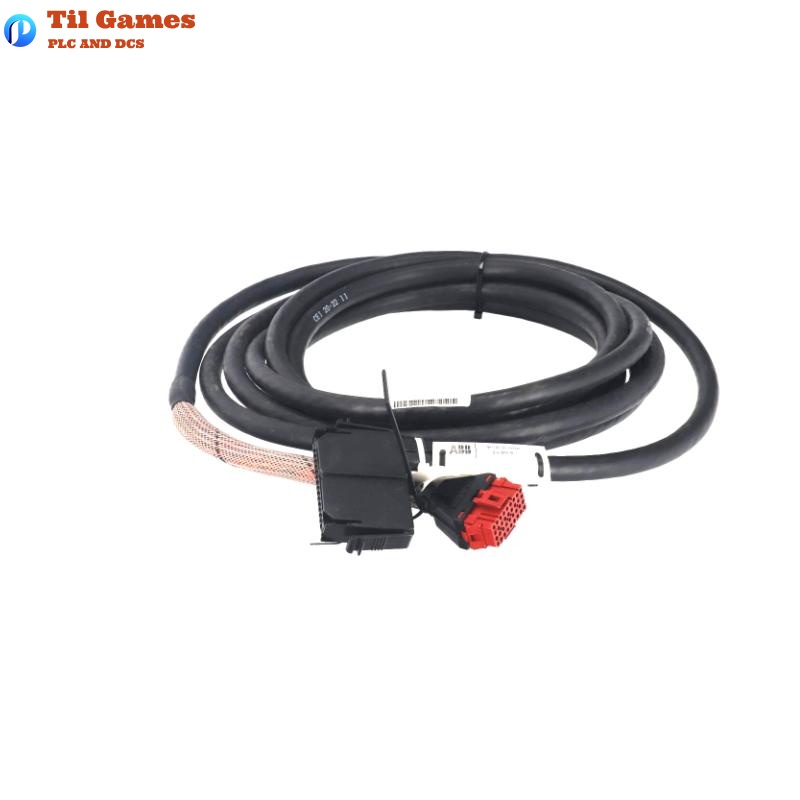

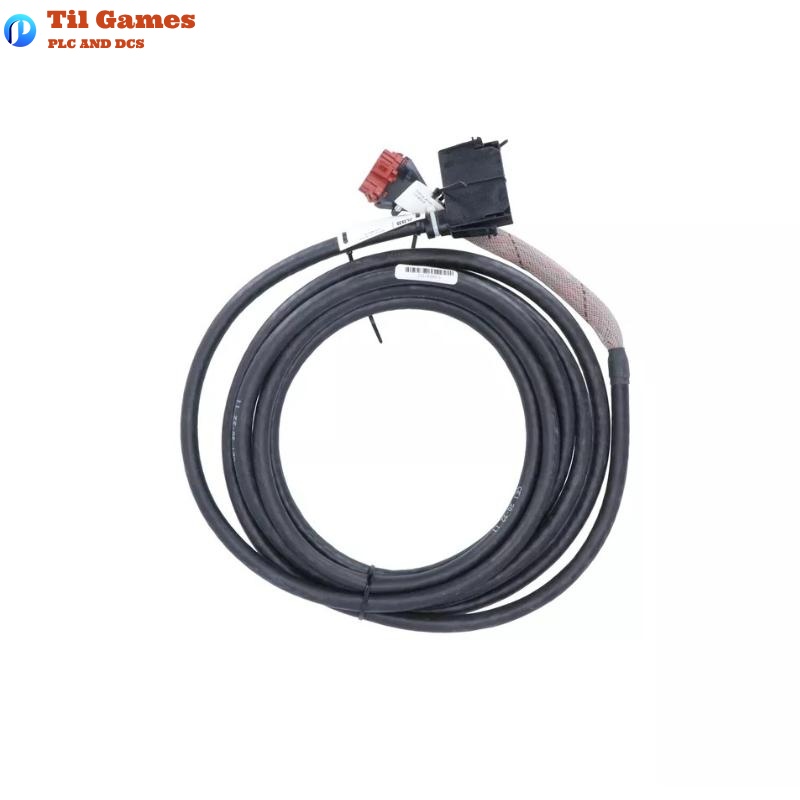

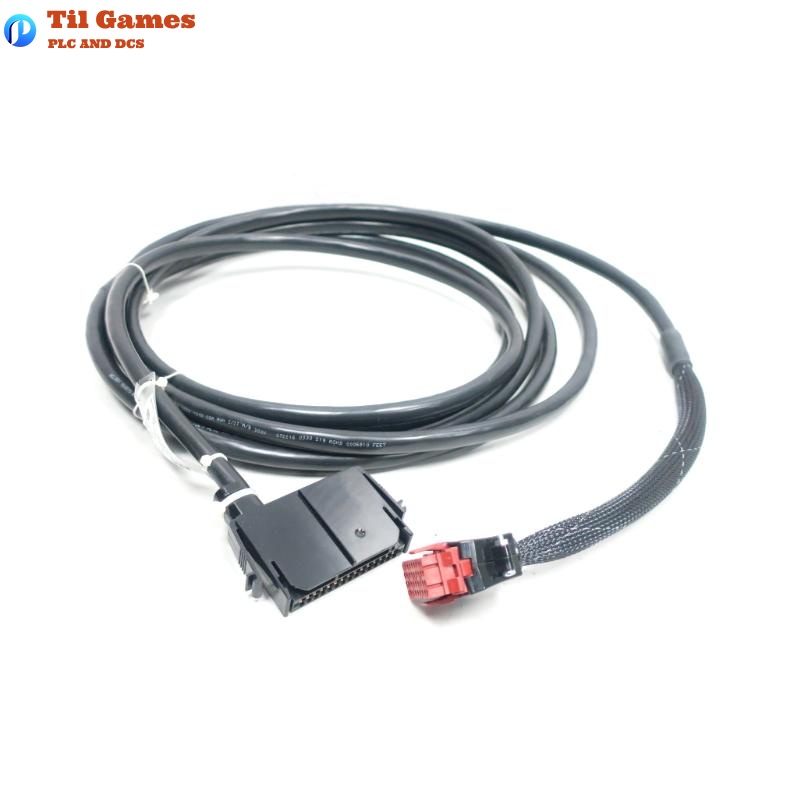

| Product Name | NKTU01-20 Termination Loop Cable |
| System | ABB Bailey INFI 90 Process Control System |
| Cable Type | Termination Cable for Digital/Analog Signals |
| Compatible Modules | NTDI01 Digital I/O Termination Unit |
| Connector Ends | Hooded end (P3), Socket end (P1) |
| Pin Mapping | 36-pin P3 to 36-pin P1 mapping |
| Supported I/O Signals | 16 Channels (Digital or Analog) |
| Operating Environment | Non-corrosive, 0°C to 70°C ambient temperature |
| Humidity Range | 0%–95% (non-condensing) |
| Altitude Range | Up to 3000 meters |
| Cable Length | 20 ft (6.1 meters) |
| Shipping Weight | 3 kg |
| Certification | CSA Certified (Non-hazardous locations) |
FAQ
FAQ
Q1: What is the primary function of the NKTU01-20 cable?
A1: It connects the NTDI01 Termination Unit to the master/slave module, transferring I/O signals.
Q2: How many I/O channels does the NKTU01-20 cable support?
A2: It supports 16 digital or analog I/O channels.
Q3: Can this cable be used with modules other than NTDI01?
A3: No, it is specifically designed for use with NTDI01 in the INFI 90 system.
Q4: What is the length of the NKTU01-20 cable?
A4: The cable is 20 feet (6.1 meters) long.
Q5: What are the environmental requirements for the cable?
A5: It should be used in a non-corrosive environment with ambient temperatures between 0°C and 70°C.
Q6: Is the NKTU01-20 cable certified for safety?
A6: Yes, it is CSA certified for non-hazardous locations.
Q7: What type of signals can the cable carry?
A7: It is capable of carrying both digital and analog signals.
Q8: What is the shipping weight of the cable?
A8: The shipping weight is approximately 3 kg.
