Technical Specifications
| Parameter | Specification |
|---|---|
| Model | NKTU01 |

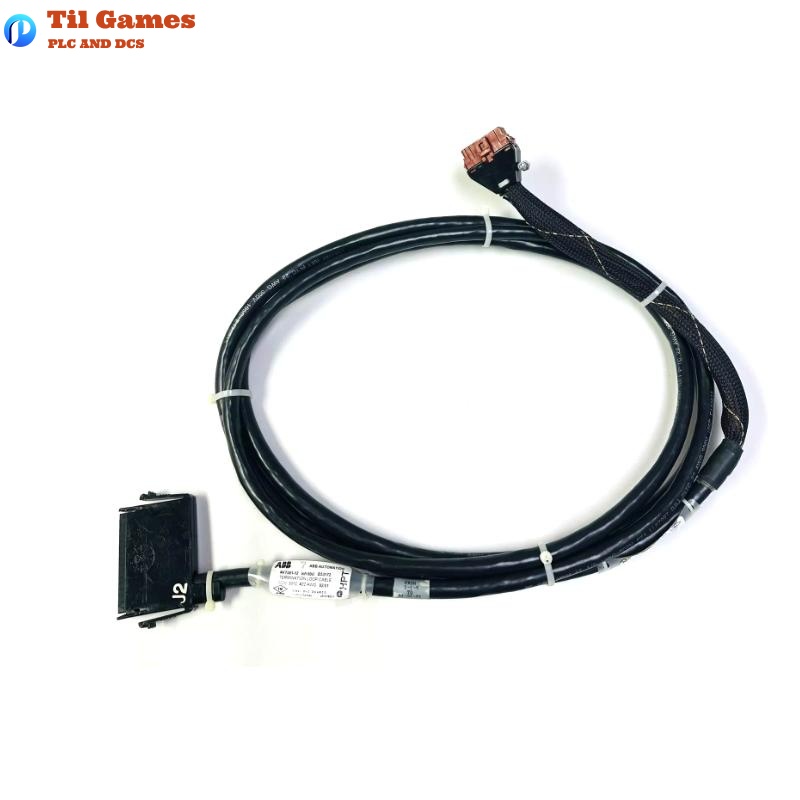

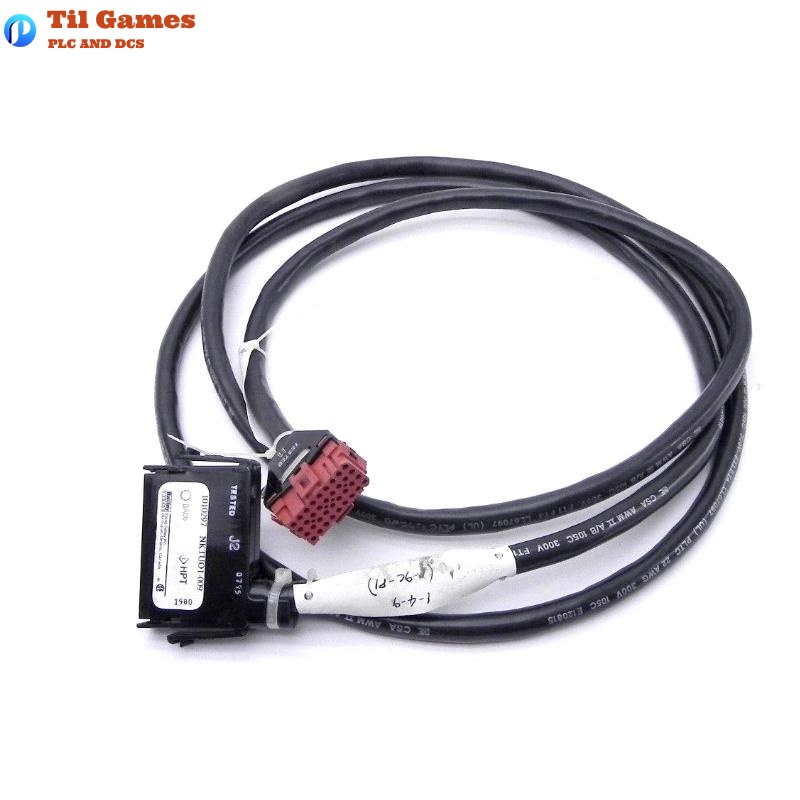

| Product Type | Termination Loop Cable |
| System Compatibility | ABB Bailey INFI 90 system |
| Function | Connects master/slave module (P3) to TDI (P1) |
| Connection Type | 36-pin cable interface |
| Supported I/O Points | 16 channels |
| Operating Voltage | Up to 150 VDC / 120 VAC |
| Cable Length | Optional |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Conditions | Non-corrosive, controlled environment |
| Certification | CSA Certified |
| Mounting Compatibility | Connects P3 (module) to P1 (termination unit) |
| Shipping Weight | 3 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the NKTU01 cable?
A1: The NKTU01 cable is used to connect the I/O signals from the master or slave module to the NTDI01 termination unit in the INFI 90 system.
Q2: How many I/O signals does the NKTU01 support?
A2: It supports up to 16 individual I/O signal connections.
Q3: Is the cable length fixed or customizable?
A3: The cable length is optional and can be selected based on installation requirements.
Q4: What connector types are used on the NKTU01 cable?

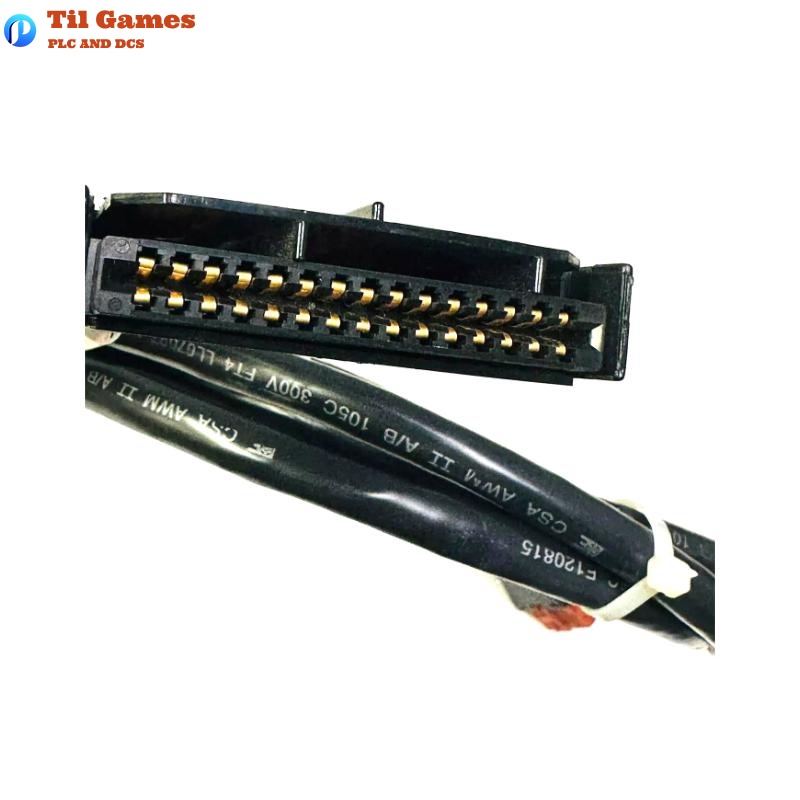

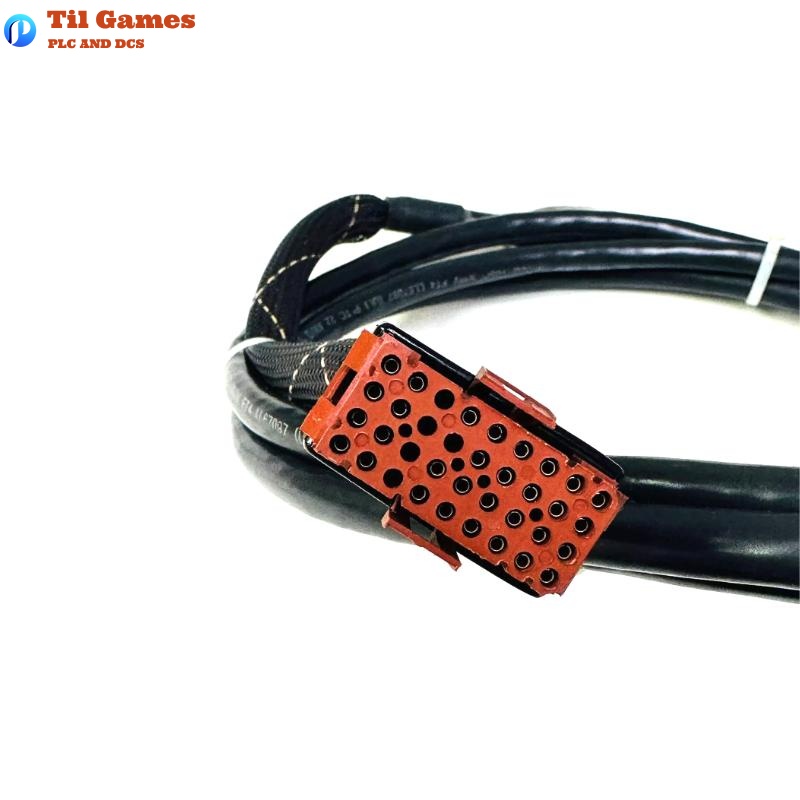

A4: The cable uses a 36-pin connector that interfaces between the P3 connector of the module and the P1 connector of the termination unit.
Q5: What environments is the NKTU01 suitable for?
A5: It should be used in a non-corrosive, clean environment with an ambient temperature of 0°C to 70°C.
Q6: Is the cable CSA certified?
A6: Yes, it is CSA certified for use in ordinary industrial applications with I/O voltages up to 150 VDC or 120 VAC.
Q7: What are the safety considerations for installation?
A7: Always ensure power is turned off before installation to prevent equipment damage.
Q8: Can this cable be used with any INFI 90 module?
A8: It is designed specifically for use with compatible ABB Bailey INFI 90 master/slave modules and termination units.
