Technical Specifications
| Parameter | Description |
|---|---|
| Model | NMFC03 (Legacy) / IMMFC03 (Functional Replacement) |
| Microprocessor | Motorola 68020, 8 MHz |
| Memory | 512 KB RAM, 80 KB battery-backed RAM, 256 KB UVROM |
| Communication Ports | 2 × RS-232-C (serial), 2 × RS-422 (Redundancy and Panel Interface) |
| Programming Support | Supports BASIC and C (up to 4000 lines of BASIC or 5000 lines of C) |
| I/O Capability | Supports up to 64 slave modules (max. 20 high-power) |
| Mounting | Occupies 2 slots in standard INFI 90 Module Mounting Unit (MMU) |
| Power Requirements | +5V @ 4.5 A; +15V @ 37 mA; -15V @ 18 mA; Max power ≈ 37.68 W |
| Operating Temperature | 0 to 70°C |
| Relative Humidity | 5% to 95% up to 55°C, 5% to 45% at 70°C (non-condensing) |
| Altitude | Up to 3,000 meters |
| Air Quality | Non-corrosive environment |
| Communication Buses | Module Bus: 83.3 kbps; Slave Bus: 500 kbps |
| Redundancy | Fully supports hot backup configuration |
| Dimensions | 200 × 100 × 30 mm |
| Weight | 0.89 kg |
| Installation Location | INFI 90 standard module rack |
| Certification | CSA certified for ordinary (nonhazardous) process control use |
FAQ
FAQs
Q1: Does NMFC03 support redundancy?
A1: Yes, NMFC03 supports hot backup redundancy and can switch seamlessly to the backup controller.
Q2: Which programming languages does it support?
A2: It supports both BASIC and C. The controller can execute up to 4000 lines of BASIC or 5000 lines of C code.
Q3: How many slave modules can it control?
A3: It can handle up to 64 slave modules, with a limit of 20 high-power modules.
Q4: How is operational status indicated?

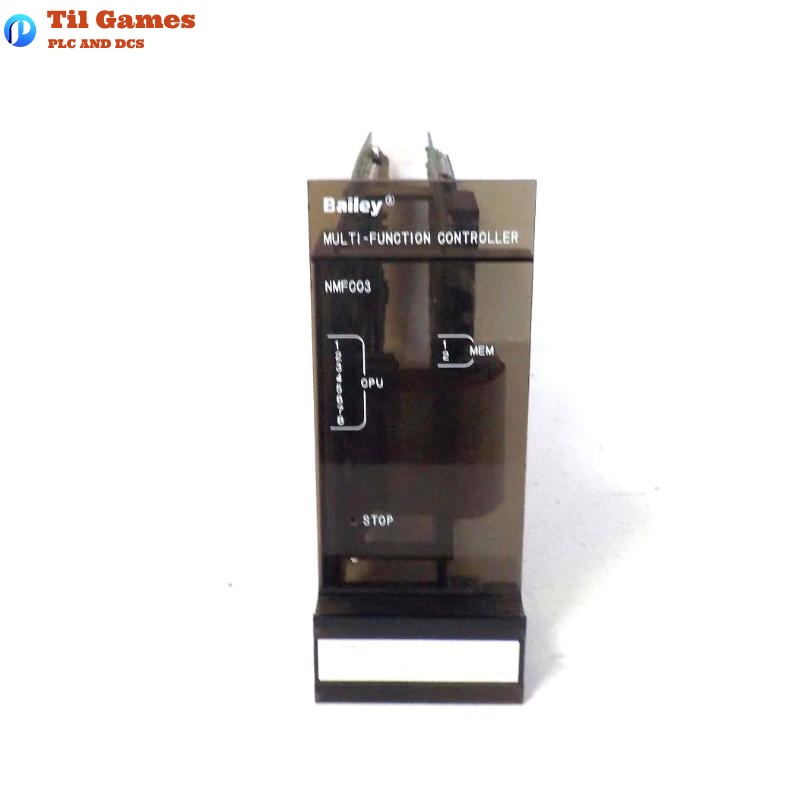

A4: Front-panel LEDs indicate execution mode, configuration mode, error states, and CPU/memory status.
Q5: Does it support online configuration?
A5: Yes, NMFC03 allows online configuration, especially useful in redundant systems for seamless updates.
Q6: Will configuration data be lost on power failure?
A6: No. Configuration is stored in battery-backed RAM and retained during power loss.
Q7: What communication protocols are supported?
A7: RS-232 and RS-422 interfaces are supported, suitable for DCS/SAC links and panel communication.
Q8: What industrial environments is it rated for?
A8: The controller is certified for use in non-corrosive, standard process control environments (CSA certified).
