Technical Specifications
| Parameter | Description |
|---|---|
| Product Model | NMFC04 |
| Microprocessor | 68000 CMOS, 12 MHz |
| Memory | 256 KB EPROM, 256 KB RAM, 64 KB battery-backed NVM |
| Power Requirement | +5 VDC, 1.6 A max (8.0 W) |
| Installation | Occupies one slot in INFI 90 mounting unit |
| Redundancy Link | 1 × RS-422 at 25 kbps |
| Station Link | 1 × RS-422 at 5 kbps |
| Module Bus Speed | 83.3 kbps |
| Slave Expander Bus | Supports up to 64 slaves, CRC protected, 500 kbps |
| LED Indicators | 8 operation/error LEDs, 1 status LED |
| Operating Temp. | 0 to 70°C |
| Operating Humidity | 5% – 95% (non-condensing at 55°C) |
| Atmospheric Pressure | Sea level to 3,000 meters |
| Environment | Non-corrosive environment |
| Certification | CSA certified for ordinary industrial use |
| Dimensions | 200 × 100 × 30 mm |
| Weight | 0.77 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the main application of the NMFC04?
A1: NMFC04 is primarily used to execute user-defined analog and digital control strategies and is a core controller in the Net 90/INFI 90 system.
Q2: What types of I/O does the module support?
A2: It supports analog, digital, and slave I/O modules, with a maximum of 64 slaves per controller.
Q3: Does it support redundant operation?
A3: Yes, NMFC04 supports primary/backup redundancy. The backup module tracks the primary and takes over instantly upon failure.
Q4: Is online configuration supported?
A4: Yes. Configuration changes can be made on the backup module without interrupting the process, then transferred seamlessly.
Q5: How do I determine if the module is operating correctly?

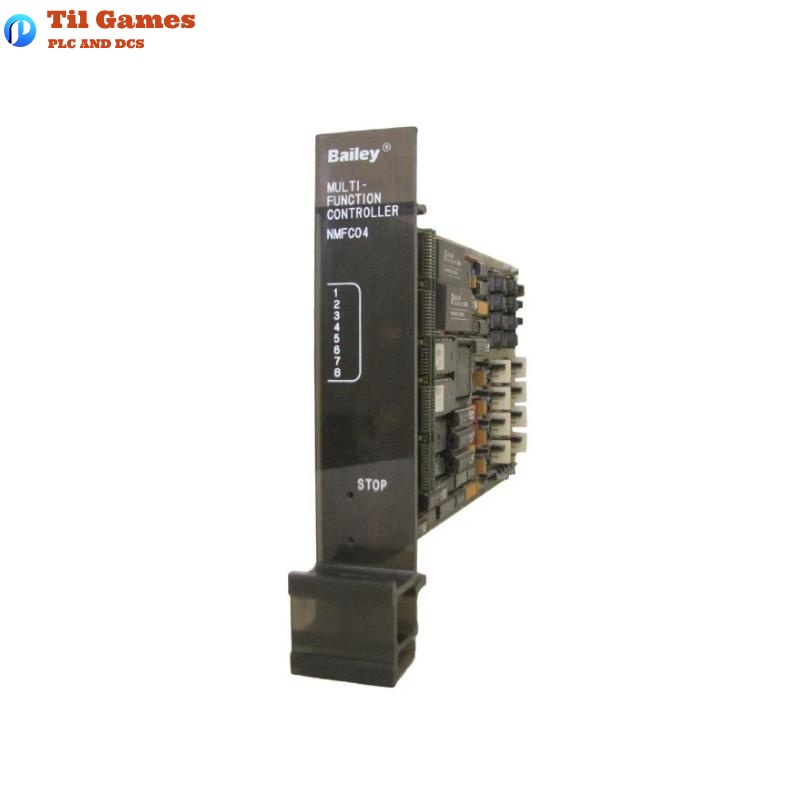

A5: Check the front panel status LED—green for normal operation, red for failure—and use the 8 LEDs to decode error codes.
Q6: What communication methods are available?
A6: Communication includes module bus, slave expander bus, station link, and redundancy link.
Q7: What should I do when error codes appear?
A7: Refer to the LED error code chart in the manual, identify the issue, and follow corrective steps such as checking configuration or resetting.
Q8: Is NMFC04 compatible with the older Network 90 system?
A8: Yes, it is a direct functional replacement for the original NMFC04 and fully compatible with Network 90 architecture.
