Technical Specifications
| Category | Specification |
|---|---|

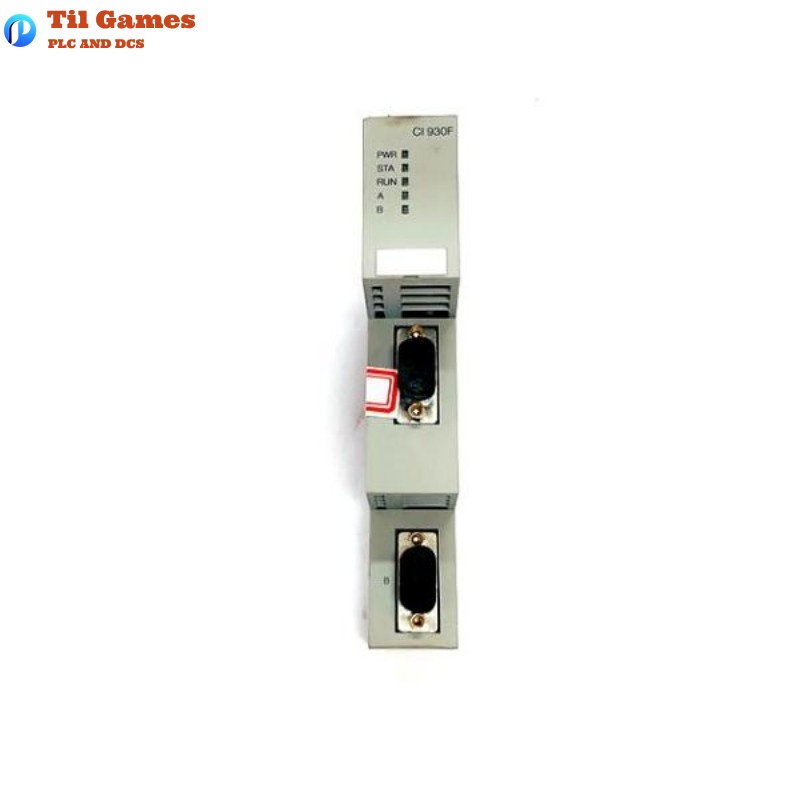

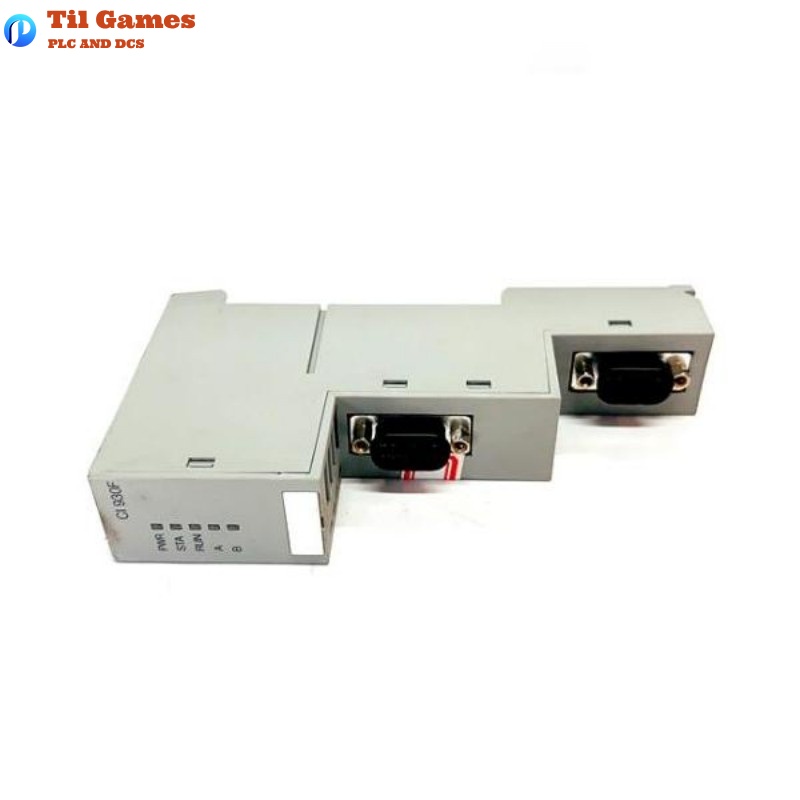

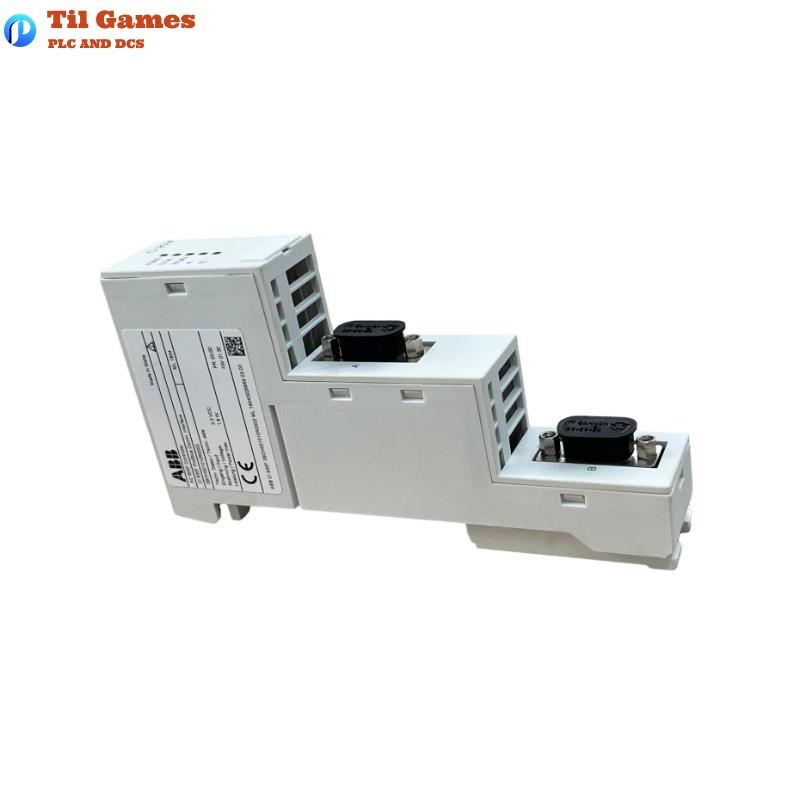

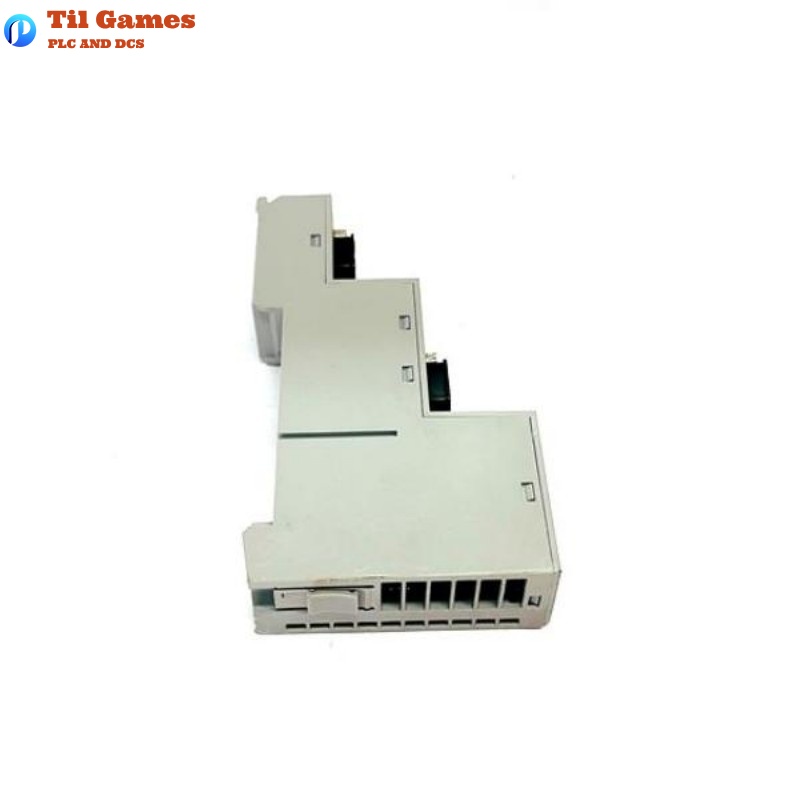

| Product Model | CI 930F |
| Article Number | 3BDH001010R0002 |
| Communication Protocol | PROFIBUS DP Master |
| Supported Versions | DP-V0 / DP-V1 |
| Transmission Speed | 9.6 kbit/s to 12 Mbit/s |
| Line Redundancy | Yes (built-in support) |
| Hot Swap Support | Yes |
| Connection Type | Two D-Sub connectors (9-pin) for lines A/B |
| Power Supply | 24 V from CPU module, typical 80 mA |
| Power Dissipation | 1.8 W |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Altitude Limit | < 2000 m |
| Relative Humidity | Max 95%, non-condensing |
| Protection Class | IP20 |
| Corrosion Protection | G3 compliant to ISA 71.04 |
| EMC Compliance | EN 61000-6-4, EN 61000-6-2 |
| Electrical Safety | IEC/EN 61010-1, IEC/EN 61010-2-201 |
| Hazardous Location | cULus Class 1 Div 2 |
| RoHS Compliance | Directive 2011/65/EU, (EU) 2015/863 |
| WEEE Compliance | Directive 2012/19/EU |
| Dimensions (W×H×D) | 28 × 152 × 85 mm |
| Weight | 115 g (0.115 kg) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What PROFIBUS versions are supported by CI 930F?
A1: It supports both PROFIBUS DP-V0 and DP-V1.
Q2: Is hot swapping supported by this module?
A2: Yes, hot swap is supported.
Q3: Does the CI 930F support bus redundancy?
A3: Yes, the module supports PROFIBUS line redundancy.
Q4: What type of connectors are used?
A4: Two D-Sub (9-pin) connectors, one for each line A and B.
Q5: Which controllers is this module compatible with?
A5: It is designed for use with ABB AC 900F controllers.
Q6: What is the operating temperature range?
A6: The operating range is -20°C to +70°C.
Q7: What is the protection rating of the module?
A7: The protection class is IP20, suitable for cabinet installation.
Q8: What is the typical power consumption?
A8: Typical consumption is 80 mA at 24 V, with 1.8 W power dissipation.
