Technical Specifications
| Parameter | Description |
|---|---|

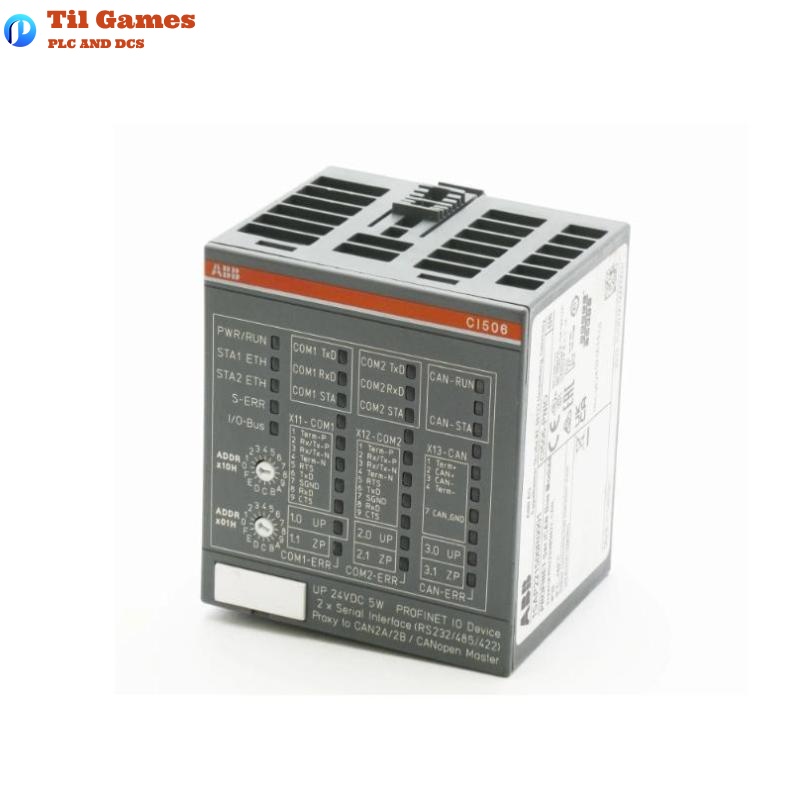

| Model | CI506-PNIO |
| Ordering Code | 1SAP221500R0001 |
| Communication Interfaces | 2 serial ports, 1 CANopen master port |
| Supply Voltage | 24 V DC |
| Max Terminal Load | 10 A |
| Current Consumption | 0.15 A (during normal operation) |
| Max Power Dissipation | 5 W |
| Input Data Length | 0 to 36 bytes |
| Output Data Length | 0 to 36 bytes |
| Ethernet Ports | 2 x RJ45 (internal switch included) |
| Transfer Rate | 10/100 Mbit/s full duplex |
| Ethernet Standard | Ethernet II, IEEE 802.3 |
| Supported Protocols | RTC, RTA, DCP, CL-RPC, LLDP, MRP |
| Minimum Bus Cycle | 1 ms |
| Serial Port Types | RS-232, RS-422, RS-485 |
| Baud Rate Range | Configurable 300 bit/s to 115200 bit/s |
| CANopen Interface Speed | Up to 1 Mbit/s |
| Mounting Position | Horizontal or vertical |
| Protection Class | IP20 |
| Electrical Isolation | Between interfaces and from main module |
| LED Indicators | 18 LEDs for operation and diagnostics |
| Expandability | Up to 10 S500 I/O modules |
| Module Identifier Setting | 2 rotary switches on the front panel |
| Operating Temperature | 0 °C to +60 °C (horizontal), 0 °C to +40 °C (vertical) |
| Storage Temperature | -40 °C to +70 °C |
| Relative Humidity | Max. 95%, non-condensing |
| Vibration Resistance | 2–8.4 Hz: 3.5 mm peak, 8.4–150 Hz: 1 g |
| Shock Resistance | 15 g, 11 ms half-sine on all three axes |
| Dimensions (W x H x D) | 62 x 76 x 67.5 mm |
| Weight | 0.144 kg (including terminal block) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What protocols does the CI506-PNIO support?
A1: It supports PROFINET protocols such as RTC, RTA, DCP, CL-RPC, LLDP, and MRP.
Q2: Is CANopen communication supported by this module?
A2: Yes, the module includes 1 CANopen master interface supporting up to 1 Mbit/s.
Q3: How is the module address configured?
A3: The address is set via two rotary switches located on the front panel.
Q4: What is the maximum input and output data size?
A4: Input and output data lengths are both up to 36 bytes.
Q5: Does the module provide LED indicators for diagnostics?
A5: Yes, there are 18 LEDs for operational and error indication.
Q6: Can this module be expanded with other I/O modules?
A6: Yes, up to 10 S500 I/O modules can be connected.
Q7: What are the installation options for this module?
A7: It supports both horizontal and vertical mounting positions.
Q8: What is the protection level of this module?
A8: The module complies with IP20 protection level, suitable for control cabinet environments.
