Technical Specifications
| Parameter | Description |
|---|---|

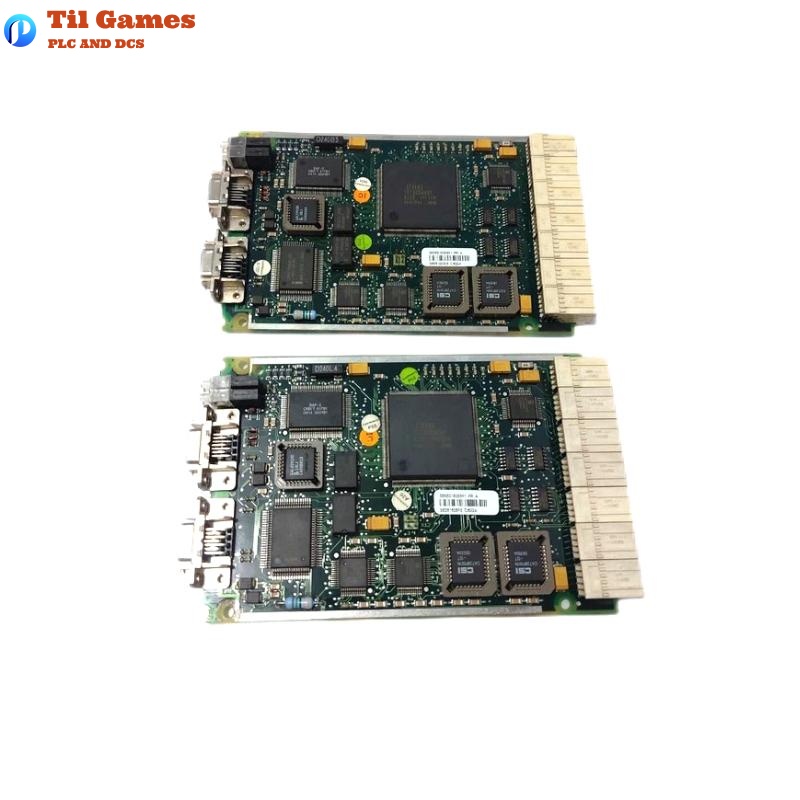

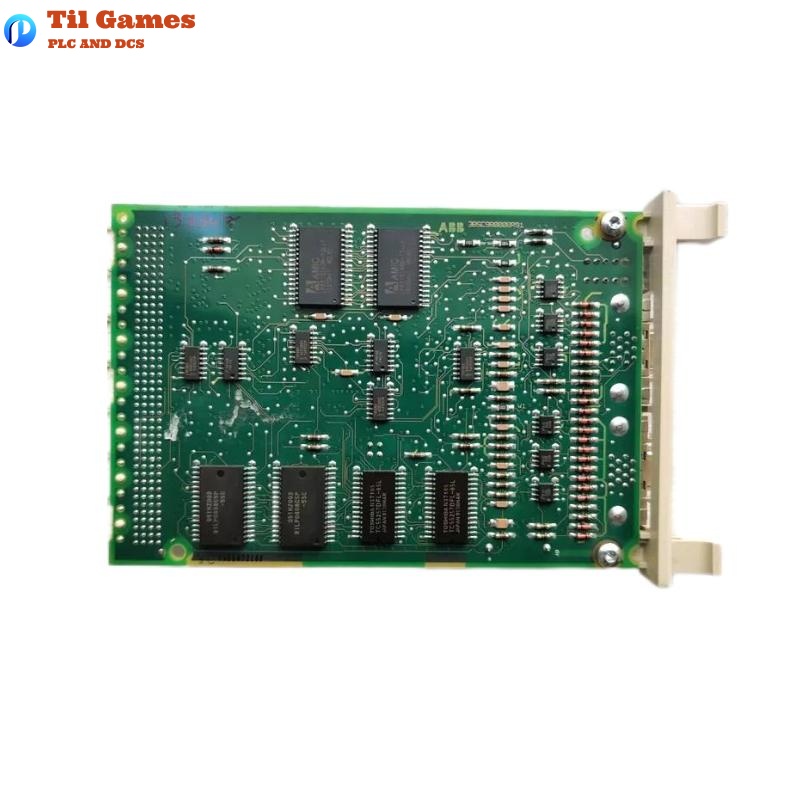

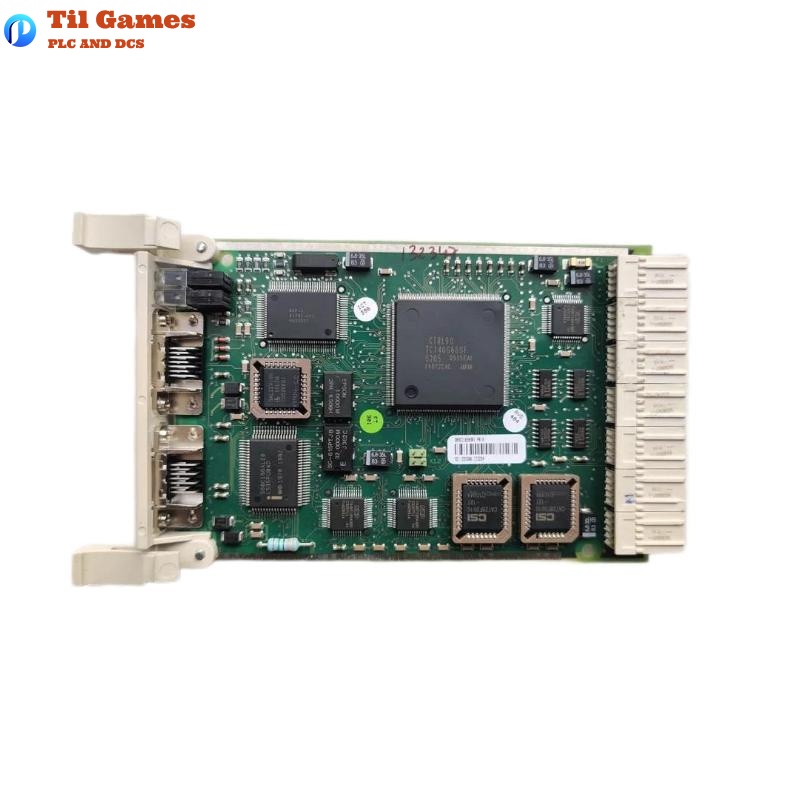

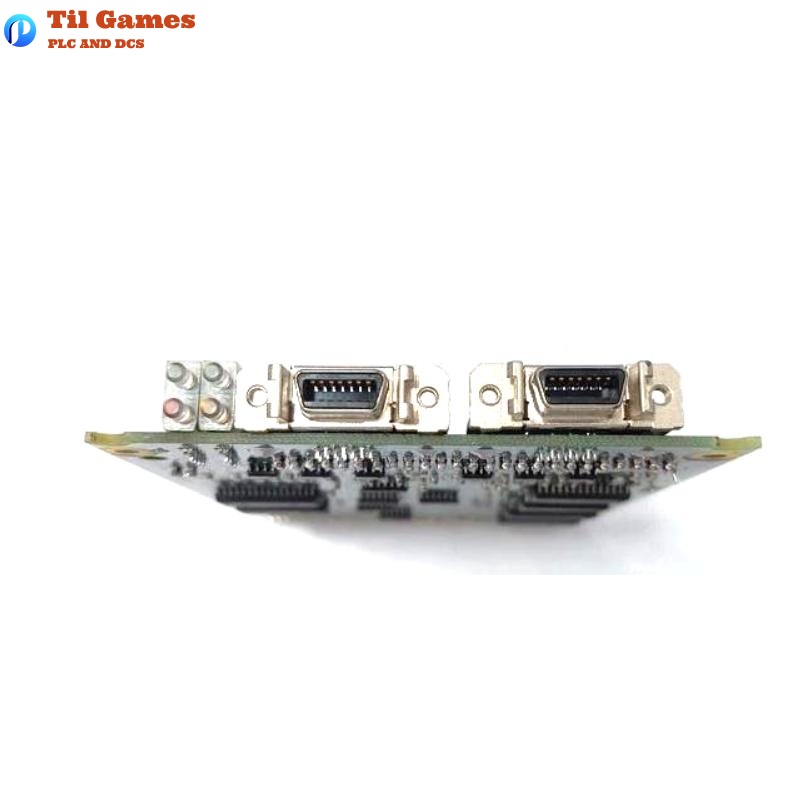

| Product Model | CI522A |
| Manufacturer | ABB |
| Type | Communication Interface Module for AF100 |
| Bus Type | Advant Fieldbus 100 (AF100) |
| Redundancy Support | Supports media and communication interface redundancy |
| Interface Connection | External modem (TC512, TC516 or TC625) |
| Mounting | Mounted on Advant Controller 400 Series subrack |
| Compatible System | Advant Controller 400 Series |
| Cable Connection | Uses TK803 series cables (e.g., TK803V018 / V036) |
| Max Bus Length | Supports AF100 bus up to 15000 meters |
| Operating Temperature | 0 to 55°C |
| Storage Temperature | -40 to 70°C |
| Redundancy Function | Primary/backup configuration with automatic switchover |
| Dimensions | 265 × 27 × 120 mm |
| Weight | 0.2 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: Does CI522A support bus redundancy?
A1: Yes, CI522A supports both media and communication interface redundancy for improved system reliability.
Q2: Which controllers are compatible with CI522A?
A2: It is designed for use with ABB Advant Controller 400 Series.
Q3: What external components are needed to connect CI522A?
A3: It requires external modems such as TC512, TC516, or TC625, along with TK803 series cables.
Q4: How is communication interface redundancy implemented?
A4: Two CI522A modules are configured as primary and backup, connected to redundant buses for automatic switchover.
Q5: Does CI522A support long-distance communication?
A5: Yes, it supports AF100 bus lengths up to 15000 meters.
Q6: Where is the module physically installed?
A6: It is mounted in a subrack of the Advant Controller 400 Series.
Q7: Is time synchronization supported?
A7: Yes, CI522A supports sending time synchronization messages.
Q8: Will the backup module take over automatically if the primary fails?
A8: Yes, the backup CI522A automatically takes over communication duties if the primary fails.
