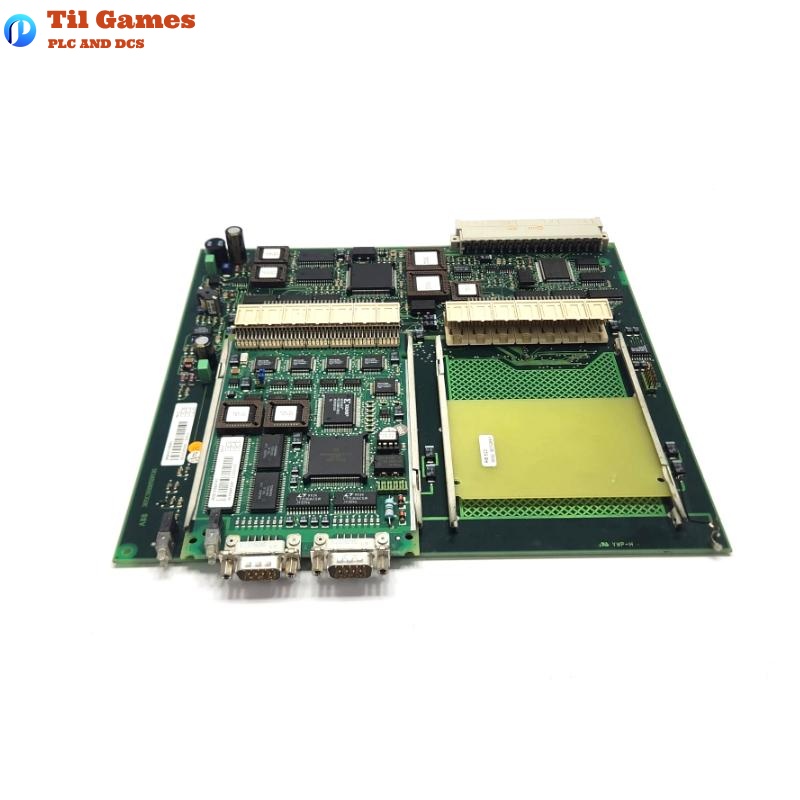

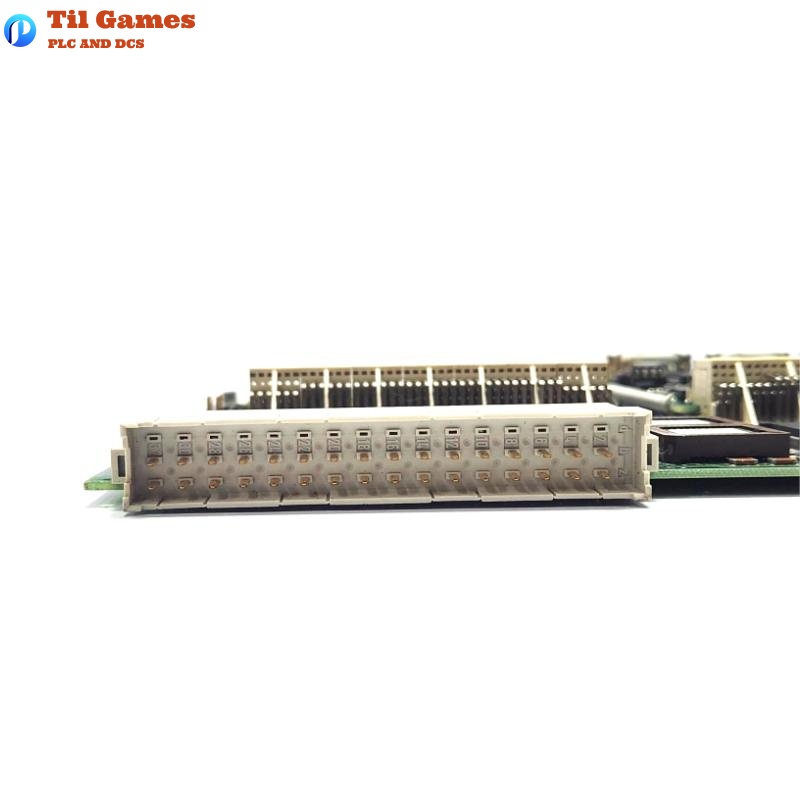

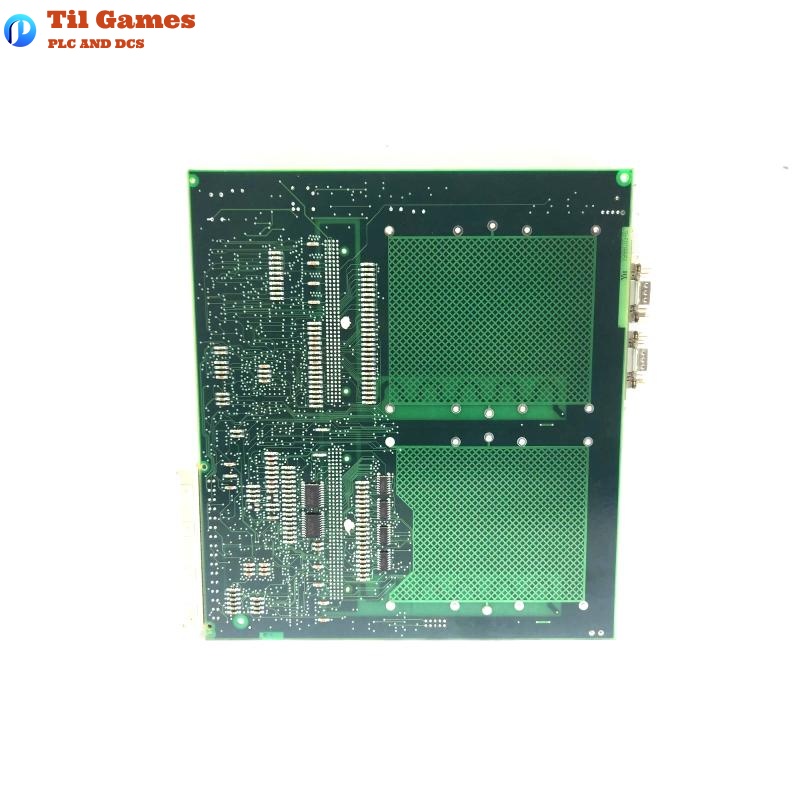

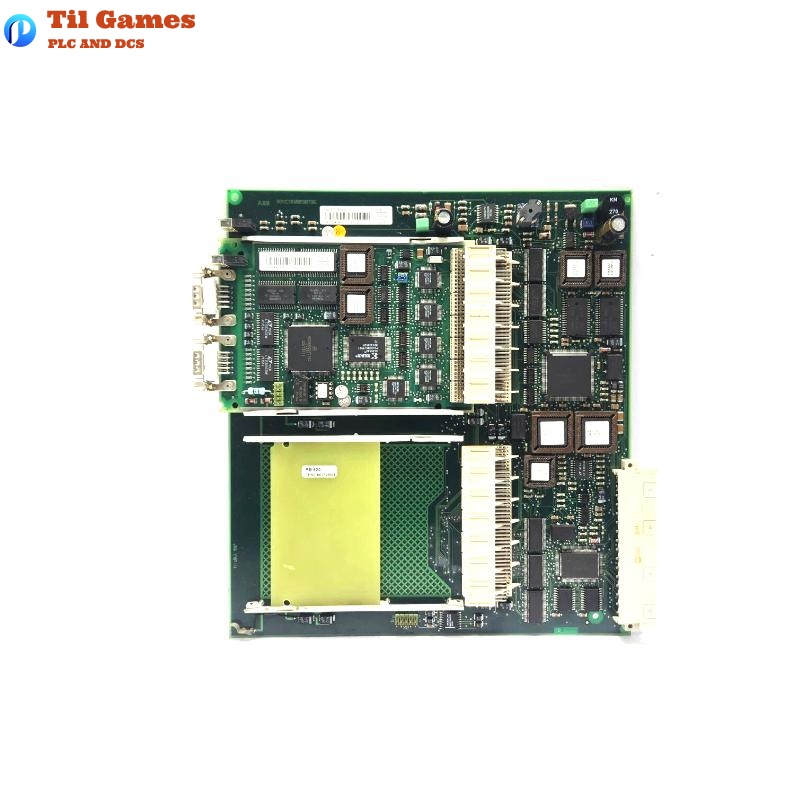

ABB CI532V02 3BSE003827R1 MODBUS Interface Sub Module

Manufacturer：ABB

Product Number：CI532V02 3BSE003827R1

Product Type：MODBUS Interface Sub Module

Origin：Sweden (SE)

Dimensions：234 x 22.5 x 108mm

Weight：0.155kg

Frequently Asked Questions (FAQ)

Q1: What MODBUS function codes are supported by CI532V02?
A1: It supports function codes 1, 2, 3, 4, 5, 6, 7, 8, 15, and 16 for digital and analog read/write operations and diagnostics.

Q2: How many MODBUS slaves can each port of the CI532V02 module handle?
A2: Each port can handle up to 8 slave devices.

Q3: Can CI532V02 operate in both master and slave modes?
A3: Yes, each port can be individually configured as either master or slave.

Q4: What is the maximum communication speed of the module?
A4: It supports speeds up to 19200 bits per second.

Q5: Where is the CI532V02 installed within the AC110 system?
A5: It is installed in a free slot of the SC610 submodule carrier.

Q6: Is a PC program required for operation?
A6: A PC program (AMPL) is required for master mode to control MVB execution. It is not needed in slave mode.

Q7: Does the module support MODBUS ASCII communication?
A7: Yes, ASCII mode is supported. Each port can use either RTU or ASCII independently.

Q8: Does the module provide status indicators?
A8: Yes, it has front panel LEDs: green for RUN and red for FAULT indication.
