Technical Specifications
| Parameter | Description |
|---|---|

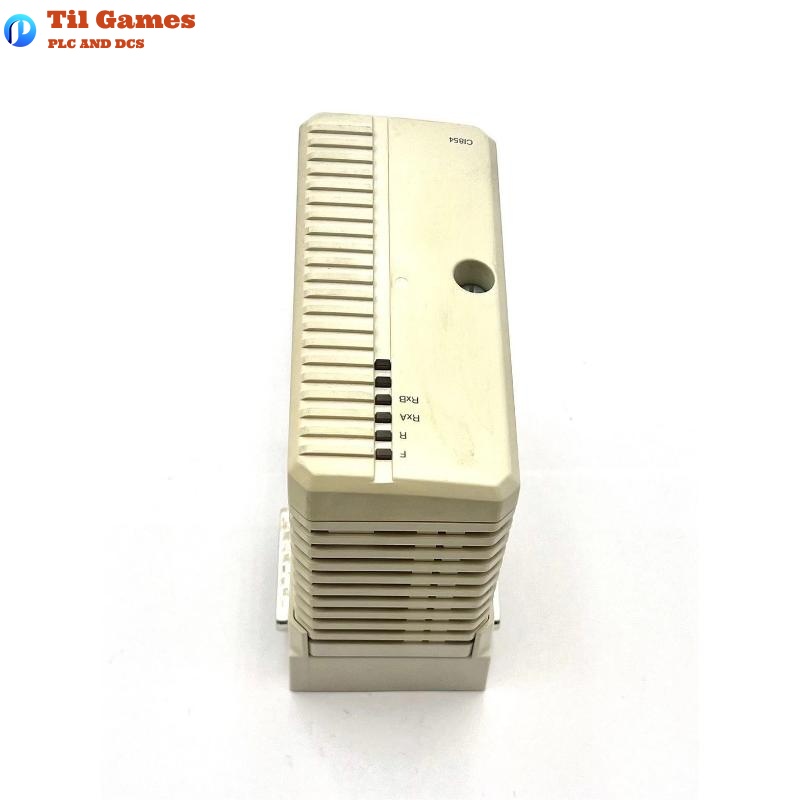

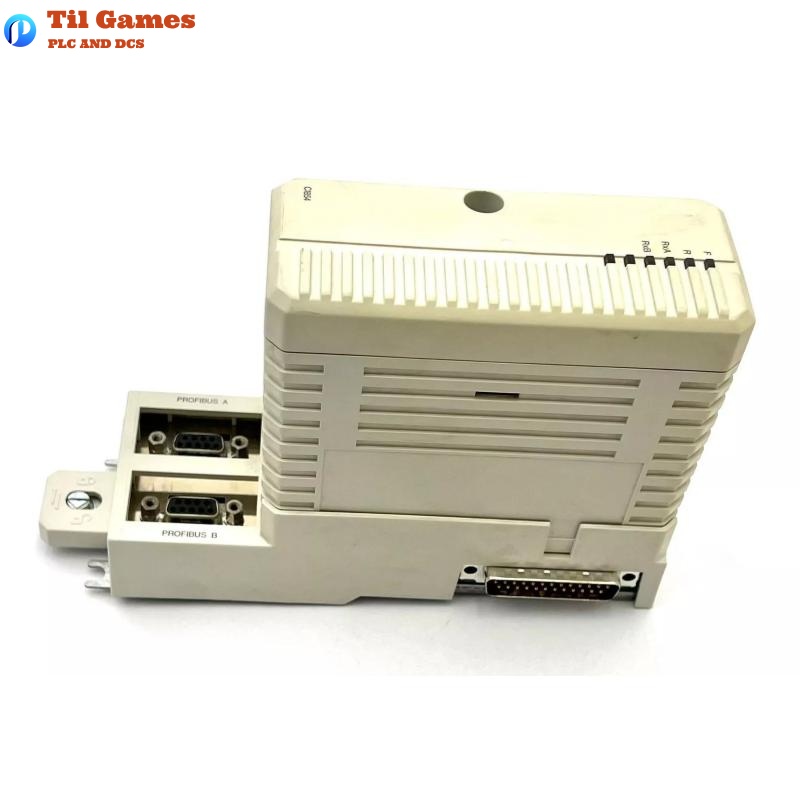

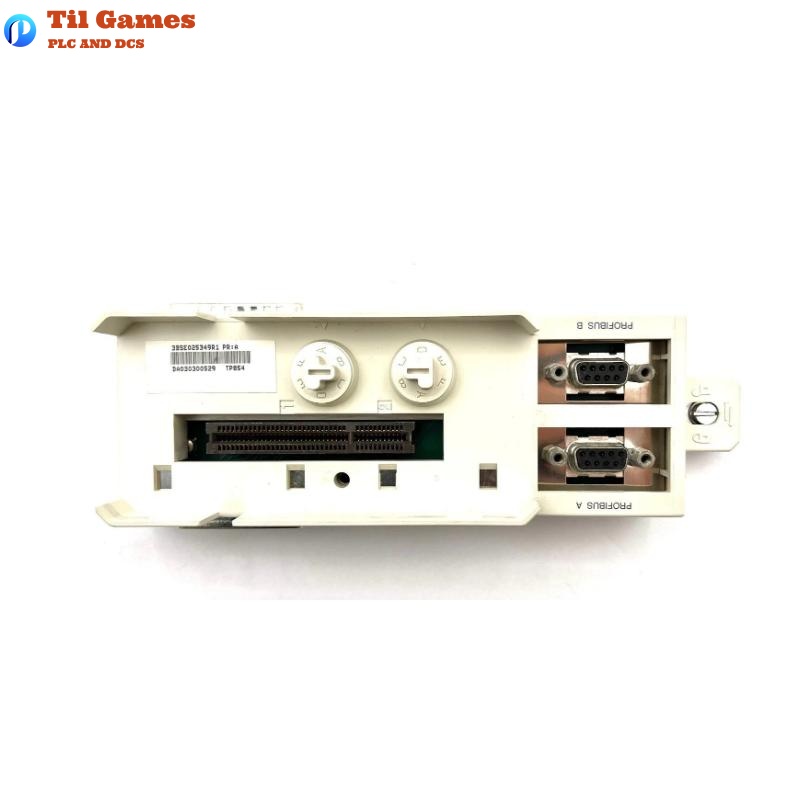

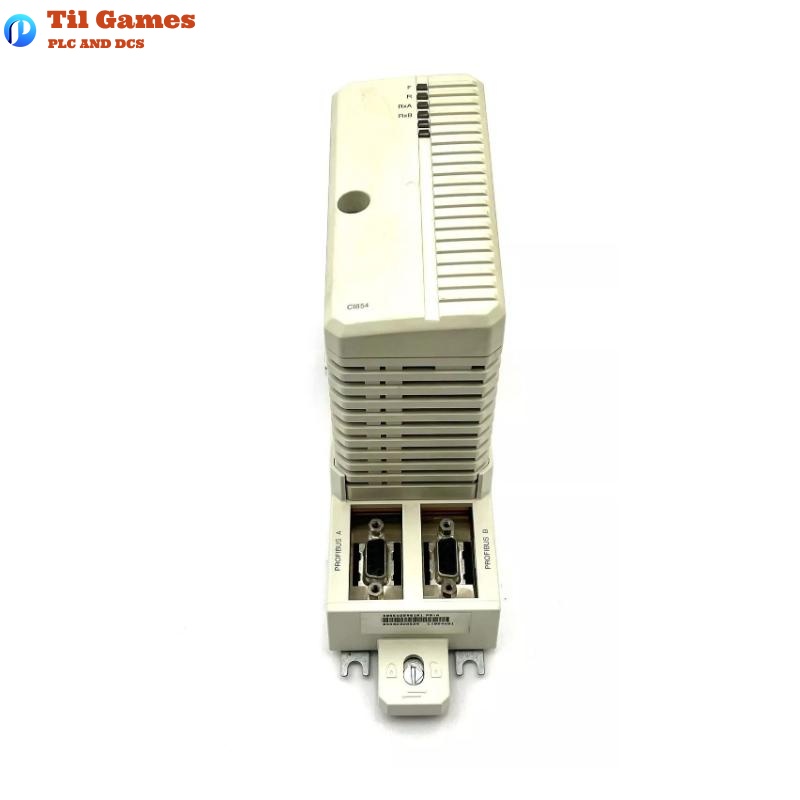

| Product Model | CI854 |
| Order Number | 3BSE025347R1 |
| Communication Protocol | PROFIBUS DP Master Interface |
| Supported Versions | PROFIBUS DP-V0 / V1 |
| Communication Speed | 9.6 kbps to 12 Mbps |
| Max Modules per CPU | Up to 12 CI854 modules per AC 800M controller |
| Interface Type | RS485 (PROFIBUS DP) |
| Bus Topology | Line topology |
| Max Segment Length | Up to 1200 m (depending on baud rate) |
| Supported Devices | 32 per segment, up to 126 with repeaters |
| Default Baud Rate | 1.5 Mbps |
| Power Supply | Supplied through the I/O system |
| Installation | Plug-in to AC 800M controller |
| Operating Temperature | 0°C to +55°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Dimensions | 59 × 185 × 127.5 mm |
| Weight | 0.7 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What protocol does the CI854 module support?
A1: The CI854 module supports the PROFIBUS DP protocol as a master interface.
Q2: How many CI854 modules can be installed per controller?
A2: Up to 12 CI854 modules can be installed on a single AC 800M controller.
Q3: What is the supported communication speed range?
A3: The module supports speeds from 9.6 kbps to 12 Mbps. The default is 1.5 Mbps.
Q4: How many devices can be connected to one PROFIBUS segment?
A4: Up to 32 devices per segment; up to 126 with repeaters.
Q5: Does CI854 support redundancy?
A5: Yes, redundancy can be achieved using the RLM01 Redundancy Link Module.
Q6: Is special tooling required for installation?
A6: No special tools are needed. It plugs directly into the AC 800M controller slot.
Q7: Can the CI854 be used in hazardous areas?
A7: The module itself is not intrinsically safe; use with certified barriers or isolation methods is required for hazardous locations.
Q8: Does the module have electrical isolation?
A8: Yes, it includes electrical isolation between the controller and the PROFIBUS interface.
