Technical Specifications
| Parameter | Value/Description |
|---|---|
| Display Type | STN-LCD with backlight |
| Display Content | Text (2 lines × 20 characters) |
| Display Area | 75.4 x 11.5 mm |
| Character Height | 5 mm |
| Function / Other Keys | 3 function keys / 20 other keys |
| LEDs | None |
| Alarm Management | Not supported |
| Real-time Clock | Supported |
| Recipe Management | Supported |
| Trends | Not supported |
| Report Printout | Supported |
| Password Protection | Supported, 8 levels |
| Multi-language Support | Supported (EN, FR, DE, IT, ES, SE) |
| Application Memory | 64 kB Flash |
| Power Supply | 24 V DC |
| Current Consumption | 150 mA |

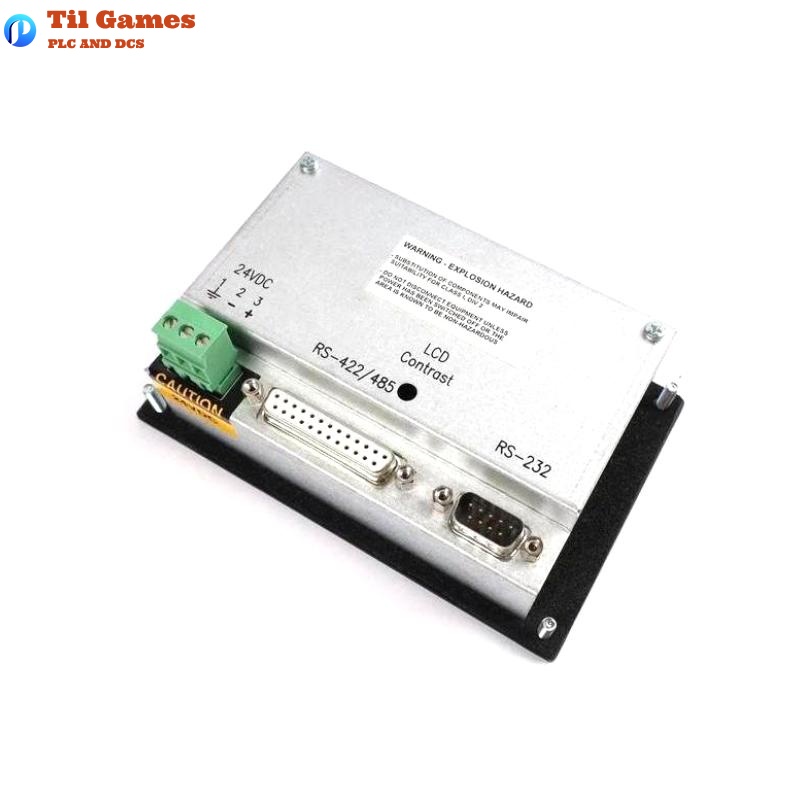

| Communication Interfaces | RS232, RS422, RS485 (any two simultaneously) |
| Extension Slot | Not available |
| Front Protection Class | IP65 |
| Operating Temperature | 0 – 50 °C |
| Dimensions (W x H x D) | 142 x 100 x 29 mm |
| Weight | 0.5 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What are the typical applications of the ABB CP502?
A1: The CP502 is used as an operator interface in automation systems, ideal for monitoring and controlling machine and process statuses in industrial environments.
Q2: Does CP502 support graphical display?
A2: No, CP502 supports text-only display with 2 lines of 20 characters.
Q3: What communication interfaces are available?
A3: It supports RS232, RS422, and RS485. Two of these can be active simultaneously.
Q4: Does it support alarm management?
A4: No, CP502 does not support alarm management. For such features, consider models like CP503 or CP511.
Q5: Is multi-language operation supported?
A5: Yes, the CP502 supports multiple languages including English, French, German, Italian, Spanish, and Swedish.
Q6: Does it have a real-time clock?
A6: Yes, the CP502 is equipped with a real-time clock for time channel and event recording purposes.
Q7: What is the protection rating of the front panel?
A7: The front panel is rated IP65, making it suitable for industrial environments.
Q8: Is recipe management supported?
A8: Yes, recipe management is supported, allowing operators to store and recall settings easily.
