Technical Specifications
| Category | Value |
|---|---|

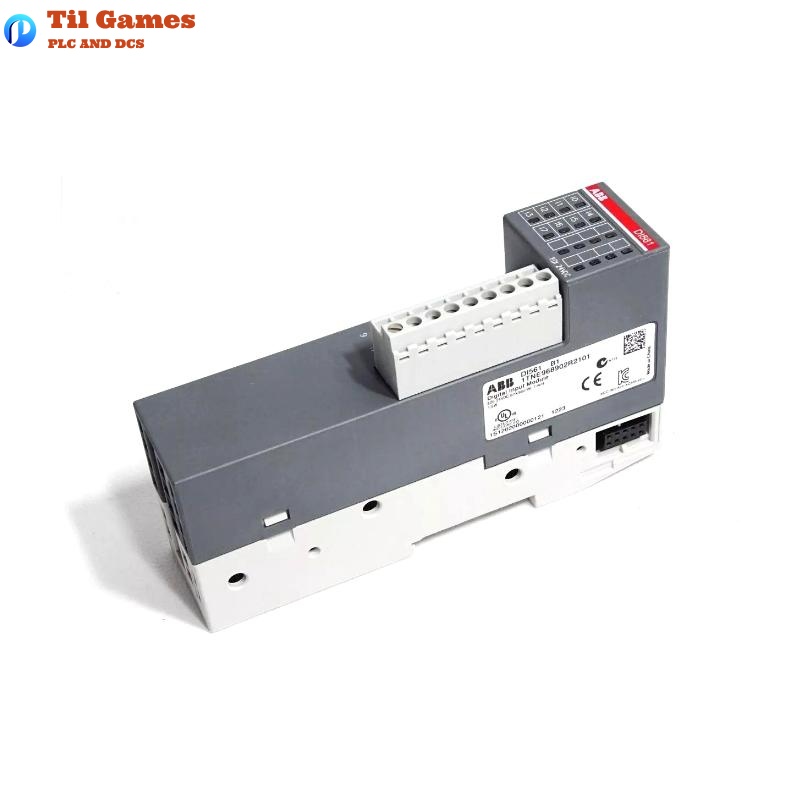

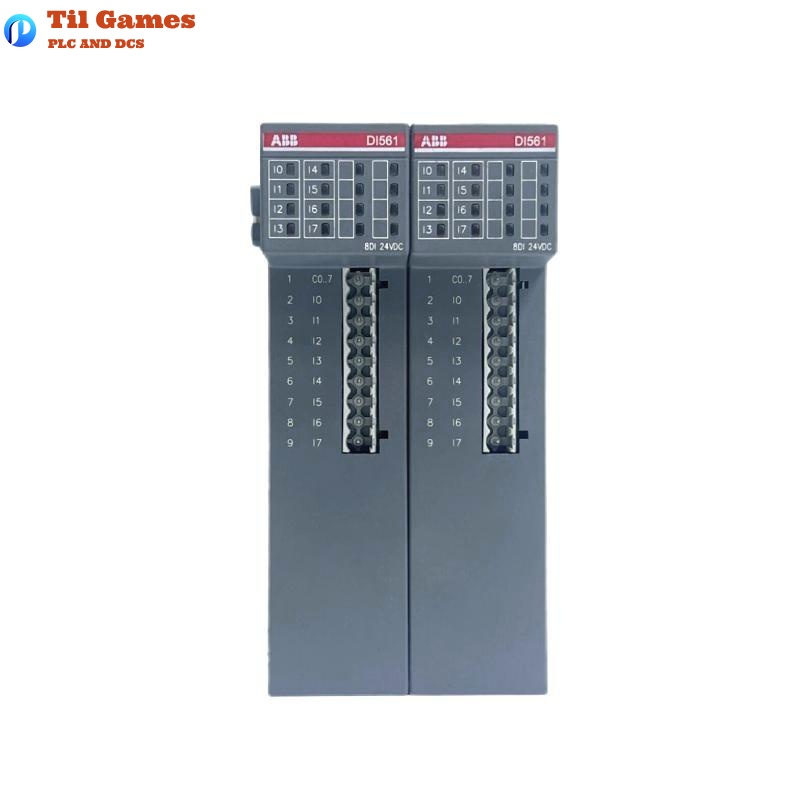

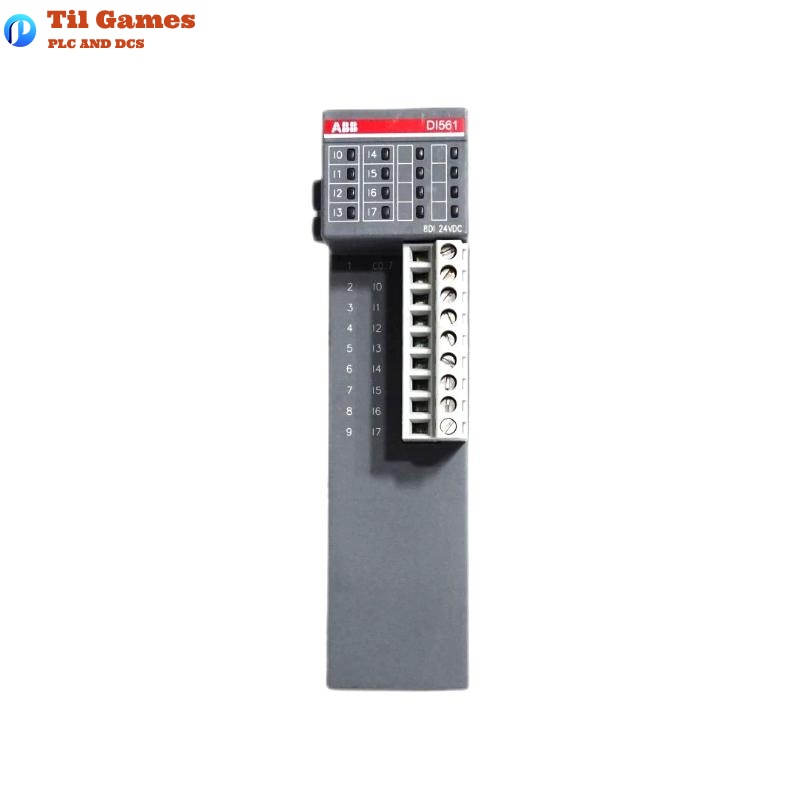

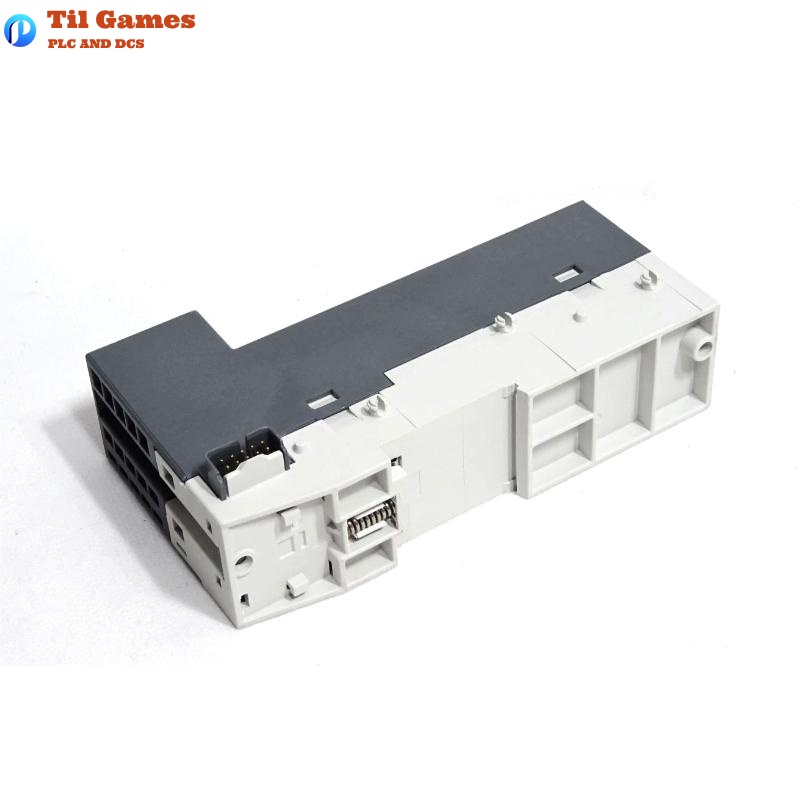

| Module Type | Digital Input Module, 8 channels, 24 V DC / 24 V AC |
| Number of Channels | 8 inputs in 1 isolated group |
| Input Signal Type | EN 61131-2 compliant: Type 1 source, Type 1 sink, Type 1 AC |
| Input Voltage Range | -30 V to +30 V DC / 14 V to 27 V AC (signal 1) |
| Input Current | 24 V: typ. 5 mA, 30 V: < 8 mA |
| Input Delay | Typ. 8 ms |
| Input Indicators | 1 yellow LED per channel (ON when signal is high) |
| Galvanic Isolation | Yes, between input group and rest of the module |
| Max Power Dissipation | 1.6 W |
| Current Consumption | Approx. 5 mA (from 24 V DC supply) |
| Mounting Position | Horizontal or vertical |
| Cooling | Natural convection; must not be obstructed |
| Max Cable Length | Shielded: 500 m, Unshielded: 300 m |
| Operating Temperature | 0 to +60°C (horizontal), 0 to +40°C (vertical with 50% load reduction) |
| Storage Temperature | -40 to +70°C |
| Humidity | Max. 95%, non-condensing |
| Degree of Protection | IP20 (with all modules and covers properly installed) |
| DIN Rail | IEC 60715 Top Hat, 35 mm width, 7.5 mm or 15 mm depth |
| Dimensions (mm) | 135 x 74 x 34 |
| Weight | 0.113 kg (approx. 110 g) |
FAQ
Frequently Asked Questions (FAQ)
Q1: What voltage levels are supported by DI561 module inputs?
A1: The DI561 supports 24 V DC and 24 V AC input signals according to EN 61131-2 Type 1.
Q2: How many input channels are available on each DI561 module?
A2: Each module provides 8 digital input channels.
Q3: How are input signals indicated on the module?
A3: Each input channel has a yellow LED that lights up when the signal is high.
Q4: Does the DI561 module provide galvanic isolation?
A4: Yes, there is galvanic isolation between the input group and the rest of the module.
Q5: Can the module be installed both horizontally and vertically?
A5: Yes, it supports both mounting orientations, but cooling and temperature limits must be observed.
Q6: Is there an input delay on the DI561?
A6: Yes, the typical input delay is 8 milliseconds.
Q7: What is the maximum cable length supported?
A7: Up to 500 meters for shielded cable and 300 meters for unshielded cable.
Q8: Does the DI561 have a protection rating?
A8: Yes, it is rated IP20 when all modules and covers are properly installed.
