Technical Specifications
| Parameter | Details |
|---|---|

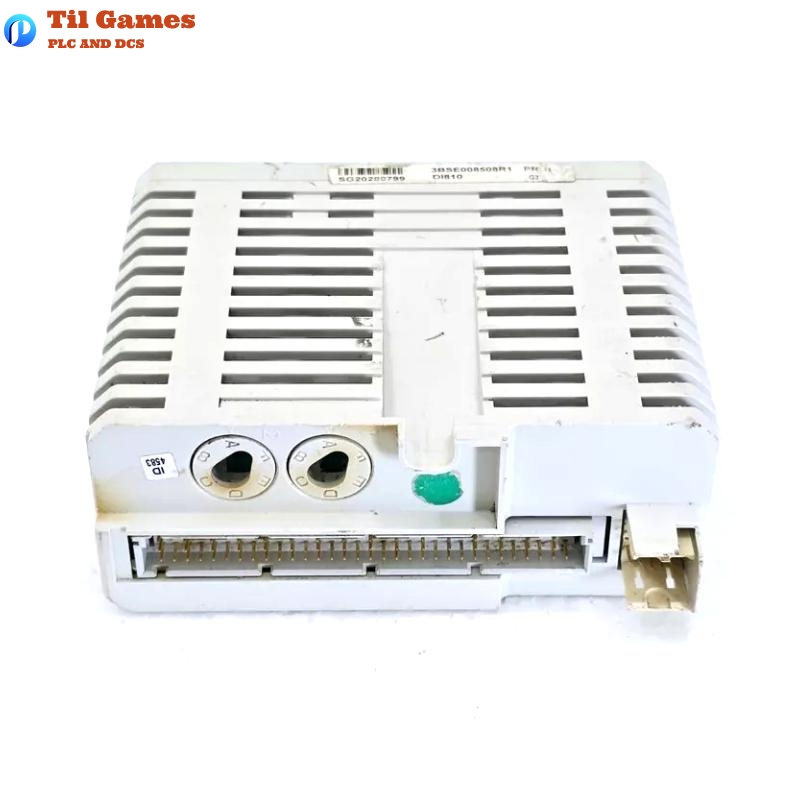

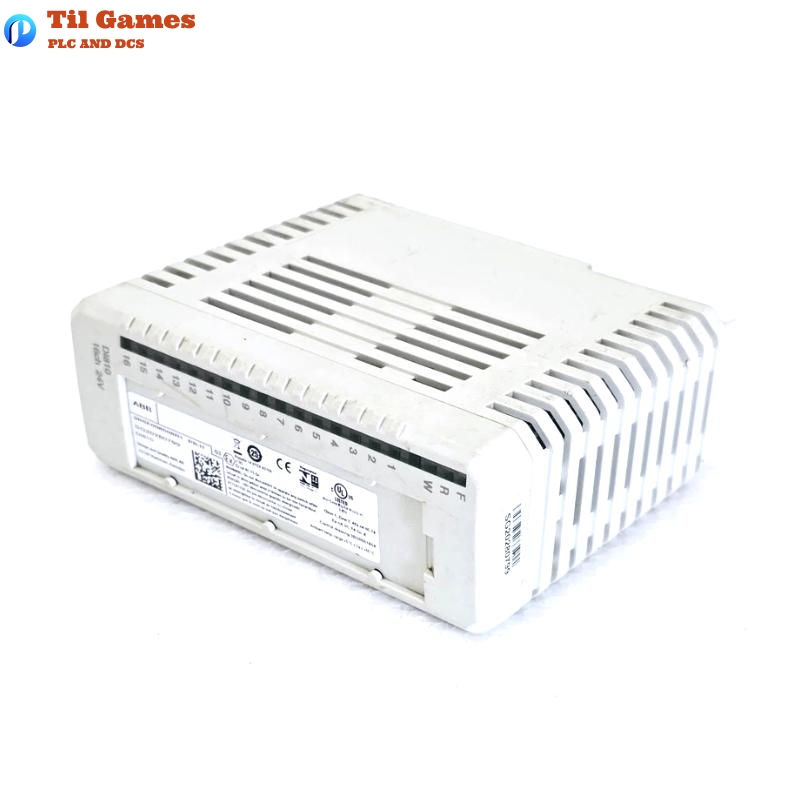

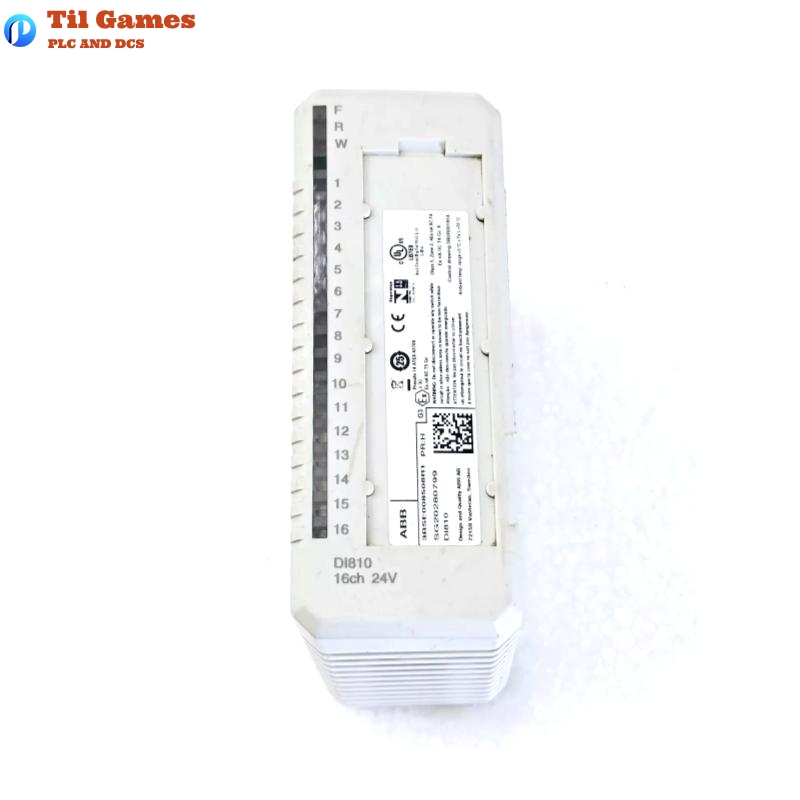

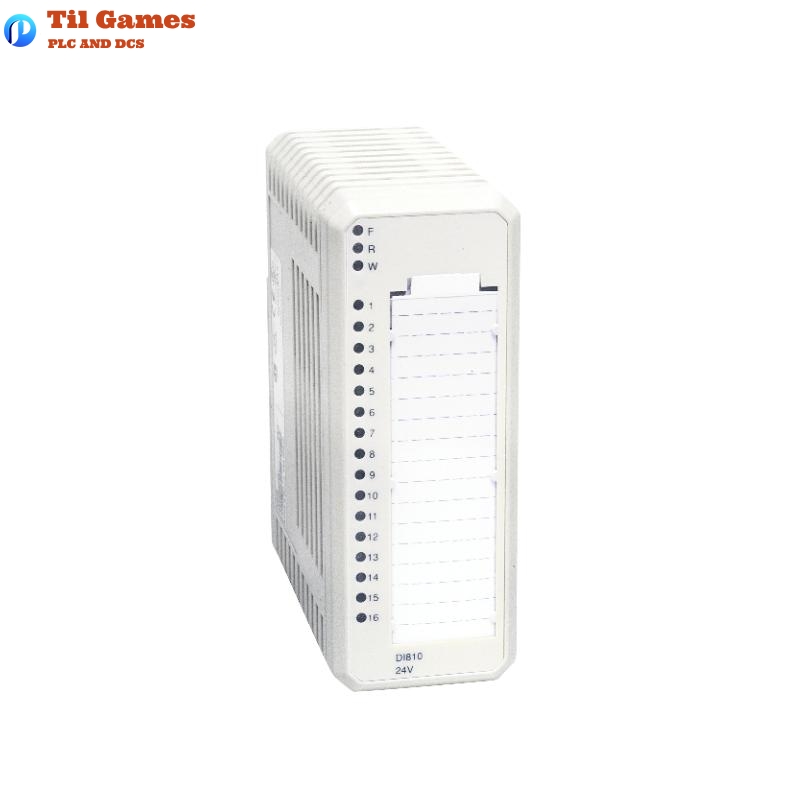

| Model Number | DI810 |
| Input Channels | 16 digital inputs |
| Input Type | Current sinking |
| Nominal Voltage | 24 V DC |
| Input Voltage Range | 18 ~ 30 V DC |
| Input Current | “1” state: >3.0 mA “0” state: <1.0 mA |
| Input Impedance | 3.5 kΩ |
| Filter Times | 2, 4, 8, 16 ms (digitally selectable) |
| Voltage Supervision | 2 channels (1 per group) |
| Max Cable Length | 600 meters |
| Electrical Isolation | Groupwise isolation from ground |
| Power Consumption | 1.8 W (at 70% channel utilization) |
| Current Consumption | 5 V (Modulebus): 50 mA |
| Rated Insulation | 50 V |
| Dielectric Test | 500 V AC |
| Protection Class | IP20 (per IEC 60529) |
| MTU Compatibility | TU810, TU812, TU814, TU830, TU833, TU838, TU850 |
| Keying Code | AA |
| Dimensions (W x H x D) | 45 x 102 x 119 mm |
| Weight | 0.24 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many input channels does the DI810 module support?
A1: It supports 16 digital input channels with 24 V DC.
Q2: What is the input current required for the “ON” state?
A2: The input current must be greater than 3.0 mA for logic “1”.
Q3: Does DI810 provide voltage supervision?
A3: Yes, each group of 8 channels includes 1 voltage supervision input.
Q4: Which MTU base units are compatible with DI810?
A4: Compatible MTUs include TU810, TU812, TU814, TU830, TU833, TU838, and TU850.
Q5: What is the maximum cable length supported per channel?
A5: The module supports a maximum of 600 meters of cable per input.
Q6: Is the module electrically isolated?
A6: Yes, each group of inputs is electrically isolated from ground.
Q7: What are the selectable digital filter times?
A7: DI810 supports 2, 4, 8, and 16 ms digital filter settings.
Q8: What typical applications is the DI810 suitable for?
A8: It is used for reading digital signals from switches, push-buttons, proximity sensors in industrial automation systems.
