Technical Specifications
| Parameter | Details |
|---|---|

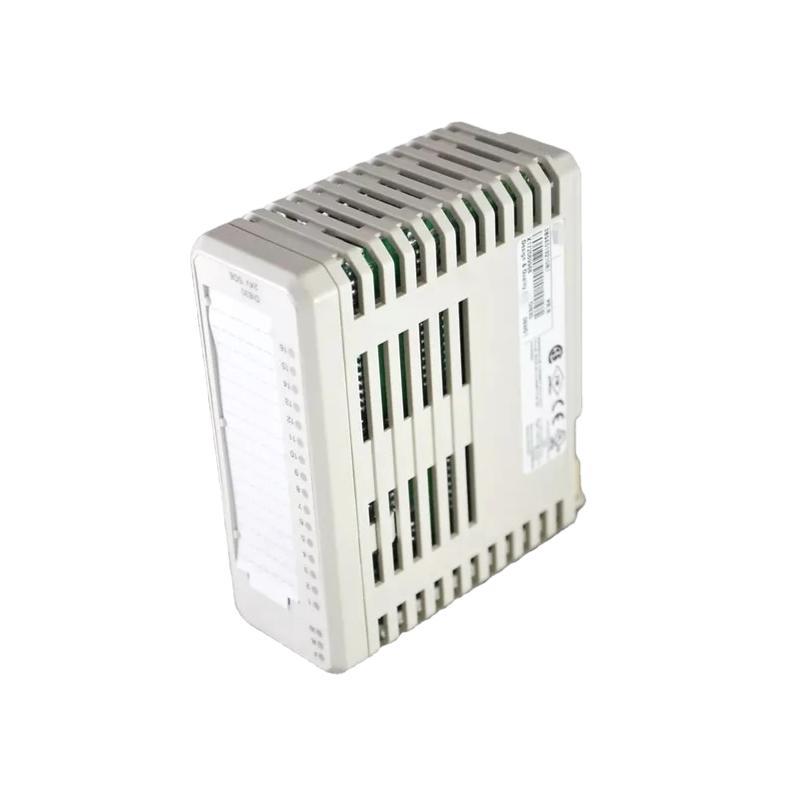

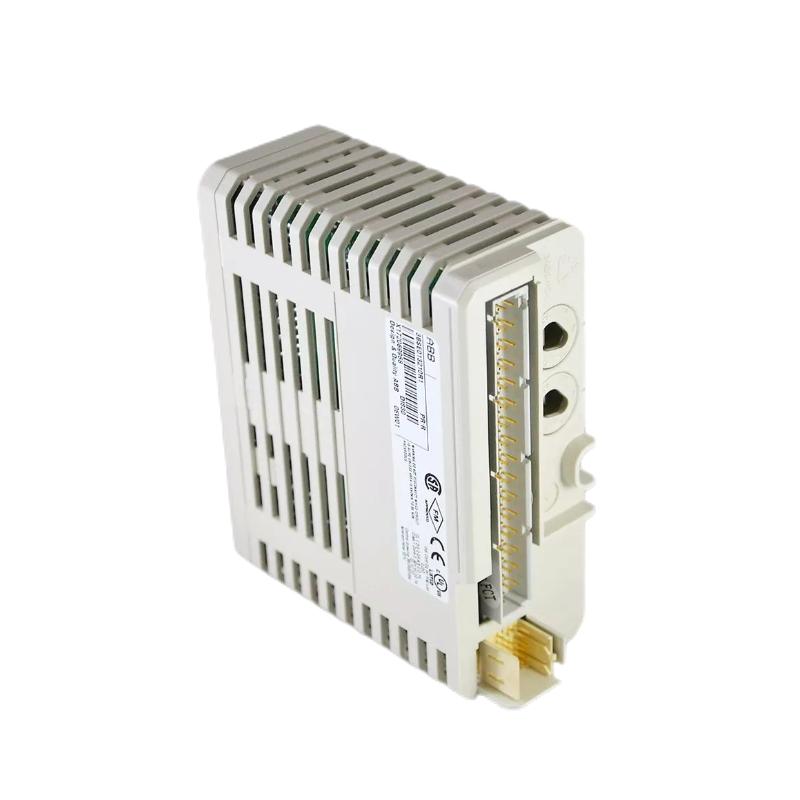

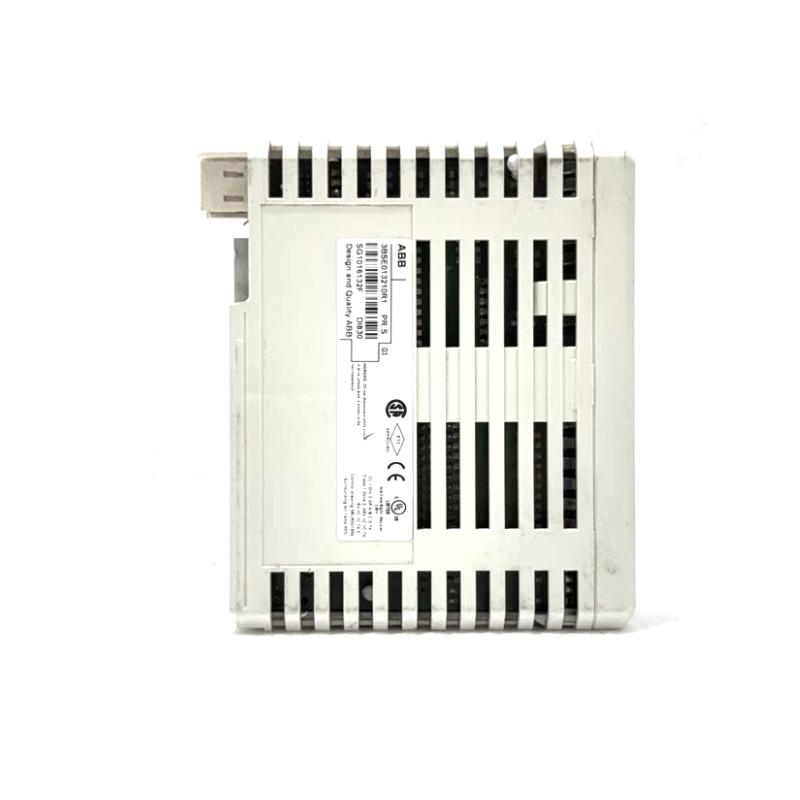

| Model | DI830 |
| Article Number | 3BSE013210R1 |
| Type | Digital Input Module |
| Number of Channels | 16 channels (24V DC, current sinking) |
| Input Signal Type | Current sinking |
| Input Voltage Range “0” | -30V to +5V |
| Input Voltage Range “1” | 13V to 30V |
| Input Current (@24V DC) | 6 mA |
| Input Impedance | 3.2 kΩ |
| Group Isolation | 2 groups of 8 channels, isolated from ground |
| Filter Time (selectable) | 0 to 100 ms |
| Max Field Cable Length | 600 meters |
| Event Recording Accuracy | -0.3 ms to +0.7 ms |
| Event Recording Resolution | 0.4 ms |
| Rated Insulation Voltage | 50 V |
| Dielectric Test Voltage | 500 V AC |
| Power Dissipation | Typ. 2.3 W |
| +5V Modulebus Current | Typ. 100 mA, Max 120 mA |
| +24V External Consumption | 0 |
| Dimensions (W x D x H) | 45 x 102 x 119 mm (depth 111 mm incl. connector) |
| Weight | 0.22 kg |
| Protection Class | IP20 (IEC 60529) |
| Operating Temperature | 0 to +55 °C (certified +5 to +55 °C) |
| Storage Temperature | -40 to +70 °C |
| Relative Humidity | 5 to 95 %, non-condensing |
| Certifications | CE, UL, ATEX Zone 2, ABS, BV, DNV, LR |
| EMC Compliance | EN 61000-6-4 / EN 61000-6-2 |
| Mechanical Standards | IEC/EN 61131-2 |
| Safety Compliance | EN/UL 61010-1 / 61010-2-201 |
| Compatible Terminals | TU810, TU812, TU814, TU818, TU830, TU833, TU838, TU850 |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many input channels does the DI830 support?
A1: It supports 16 digital input channels grouped in 2 isolated groups of 8.
Q2: What is the signal type accepted by the module?
A2: It accepts 24V DC current sinking digital inputs.
Q3: Does the module support redundancy or intrinsic safety?
A3: No, the DI830 does not support redundancy or intrinsic safety.
Q4: Is Sequence of Events (SOE) functionality available?
A4: Yes, it supports SOE with a timestamp accuracy of -0.3 to +0.7 ms.
Q5: What is the operating temperature range of DI830?
A5: The operating temperature is 0°C to +55°C.
Q6: What diagnostics features are available in the module?
A6: Includes process voltage supervision, full event queue, and time sync missing.
Q7: What is the maximum supported cable length?
A7: Maximum cable length is 600 meters for field signal connections.
Q8: Which terminal units are compatible with the DI830?
A8: Compatible with TU810, TU812, TU814, TU818, TU830, TU833, TU838, and TU850.
