Technical Specifications
| Parameter | Description |
|---|---|

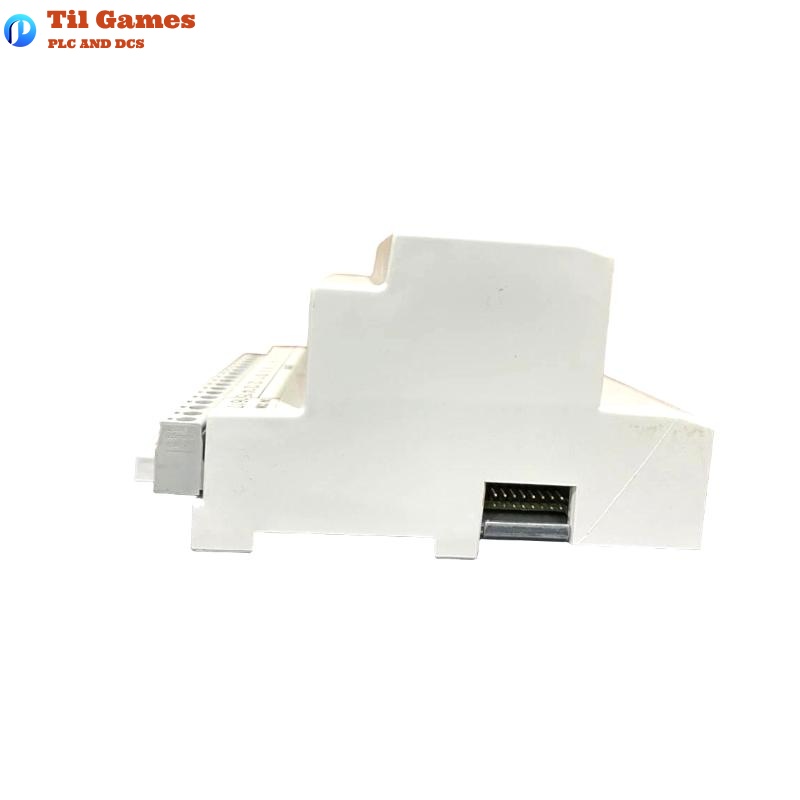

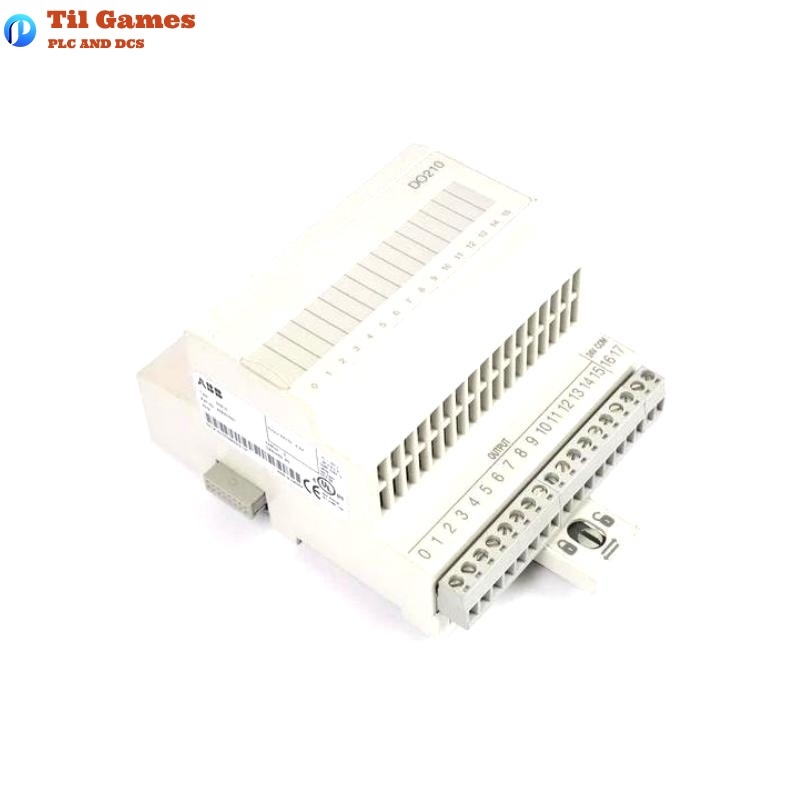

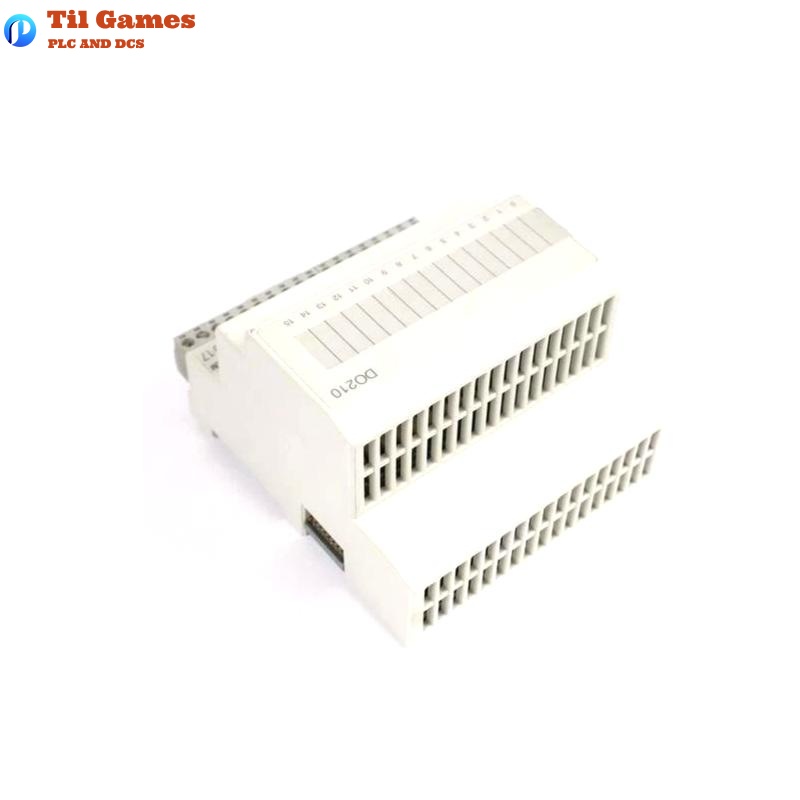

| Model | ABB DO210 S200L Digital Output Module |
| Output Channels | 16 Digital Outputs |
| Operating Voltage | 24 VDC (nominal) |
| Max Output per Channel | 600 mA |
| Max Total Output | 7 A |
| Output Type | Transistor with short-circuit protection |
| Channel Indicators | Yellow LED per output channel |
| Logic Power Supply | Supplied via serial I/O bus |
| Isolation Method | Opto-isolated per channel |
| Response Time | ON < 70 µs; OFF < 350 µs |
| Protection Features | Overtemperature, Short-circuit, Undervoltage |
| External Connections | 18-pin removable screw terminal block |
| Dimensions | 94 x 131 x 67 mm |
| Weight | 0.135 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the maximum output current per channel of the DO210 module?
A1: Each channel supports up to 600 mA, with a maximum total output of 7 A per module.
Q2: Will the module be damaged if an output is short-circuited?
A2: No. The module includes short-circuit protection. It shuts off the affected output and periodically checks until the short is cleared.
Q3: How does the module indicate the output status?
A3: A yellow LED is lit for each output when the output is active and the 24V external supply is present.
Q4: Is hot-swapping supported for this module?
A4: No. The system power must be turned off before inserting or removing the module to avoid hazards or damage.
Q5: What happens if the external power supply fails?
A5: All outputs will be turned off automatically and remain off until power is restored.
Q6: Which controllers are compatible with DO210?
A6: It is compatible with ABB AC 800C and AC 800M controllers via the appropriate fieldbus adapters.
Q7: Can outputs be paralleled to increase the load current?
A7: Yes, outputs can be paralleled, provided the total current does not exceed the 7 A module limit.
Q8: Does the module have thermal protection?
A8: Yes. If the chip temperature reaches about 160°C, the outputs are shut down to prevent damage.
