Technical Specifications
| Parameter Category | Detailed Specifications |
|---|---|

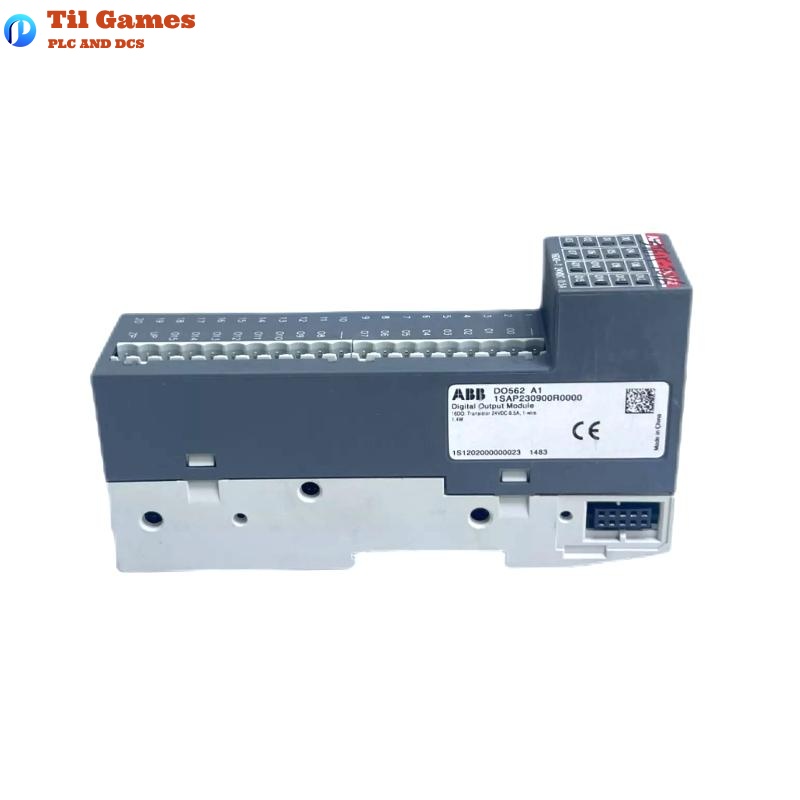

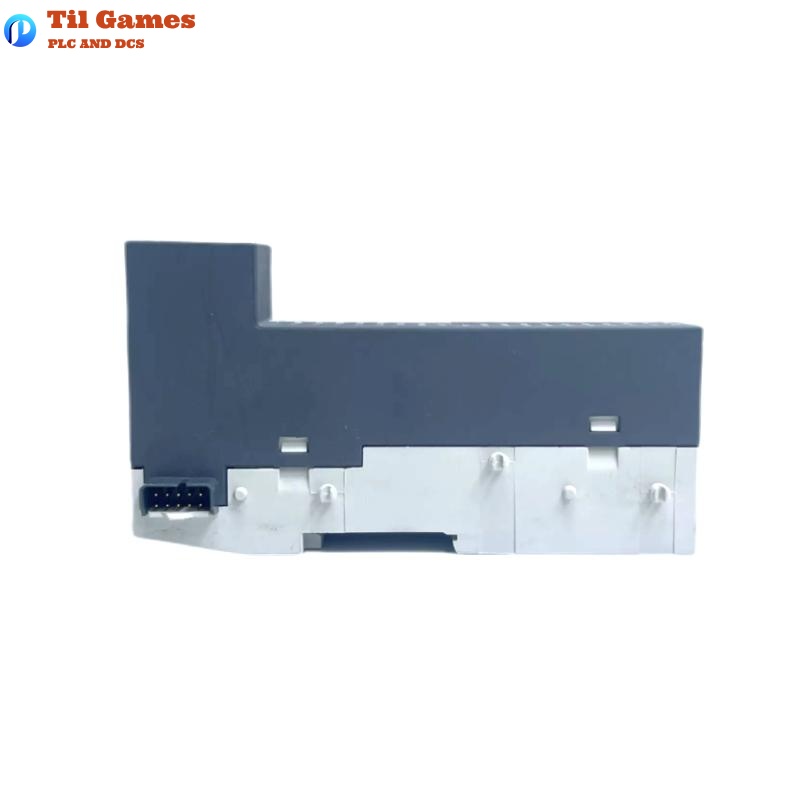

| Product Model | DO562 |
| Part Number | 1SAP230900R0000 |
| Output Type | Transistor outputs (non-protected) |
| Number of Output Channels | 16 channels |
| Rated Output Voltage | 24 V DC |
| Max Output Current per Channel | 0.5 A |
| Max Group Current | 8 A |
| Power Dissipation | Max. 1.4 W |
| Voltage Ripple | Max. 5% |
| Inrush Current | 0.000002 A²s |
| Output Delay | 0 → 1: 50 µs; 1 → 0: 200 µs |
| Output Indicators | Yellow LED per channel, lights up when signal is high |
| Reverse Polarity Protection | Yes |
| Channel Isolation | Yes, all 16 channels form one isolated group |
| Surge Tolerance | Max. 35 V DC for 0.5 s |
| Operating Temperature | 0 to +60°C (horizontal); 0 to +40°C (vertical, derated) |
| Storage Temperature | -40 to +70°C |
| Humidity | Max. 95%, non-condensing |
| Protection Class | IP20 |
| Mounting Method | 35 mm DIN rail or M4 screw mounting |
| Cooling Method | Natural convection |
| Wiring Method | Spring or screw terminals |
| Max Cable Length (Shielded) | 500 m |
| Max Cable Length (Unshielded) | 150 m |
| Dimensions (W x H x D) | 75 x 135 x 34 mm |
| Weight | 0.16 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: Is the DO562 module short-circuit protected?
A1: No, each channel must be protected externally using a 3 A fast-blow fuse.
Q2: What is the maximum current per output channel?
A2: Each channel supports up to 0.5 A; the total group current should not exceed 8 A.
Q3: Does the module support reverse polarity protection?
A3: Yes, it provides reverse voltage protection for the supply input.
Q4: Are the output channels galvanically isolated?
A4: Yes, the 16 channels form a single isolated group from the rest of the module.
Q5: What mounting methods are supported?
A5: Both horizontal and vertical mounting are supported. For vertical mounting, output loads must be derated by 50%.
Q6: What is the maximum cable length supported?
A6: 500 meters for shielded cables and 150 meters for unshielded cables.
Q7: How is the module cooled?
A7: It uses natural convection cooling; airflow should not be obstructed.
Q8: Does the output support overload or feedback protection?
A8: No, external measures are required to protect against overload or backfeed.
