Technical Specifications
| Parameter | Description |
|---|---|

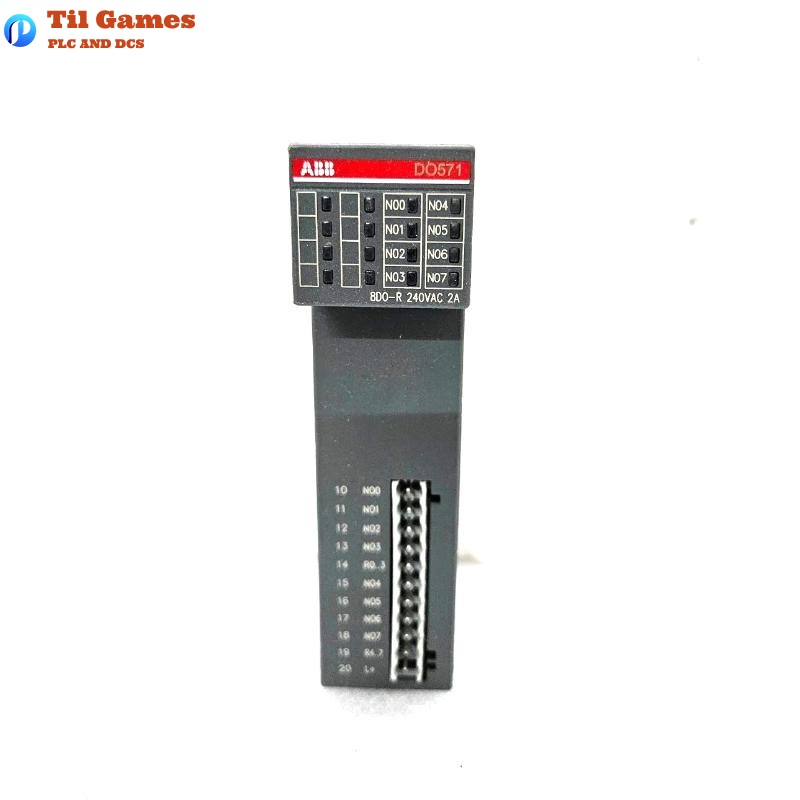

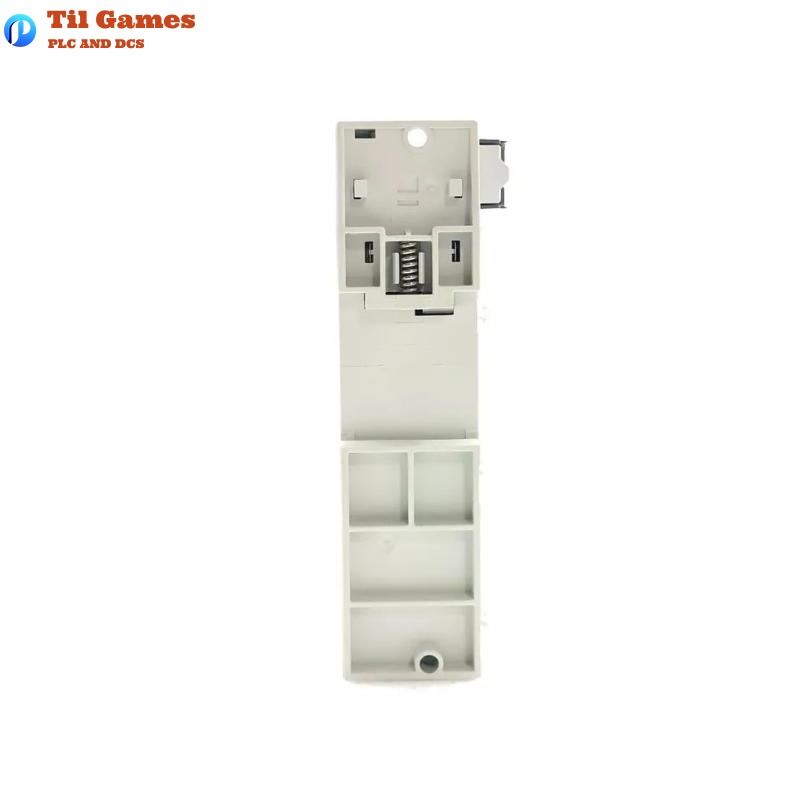

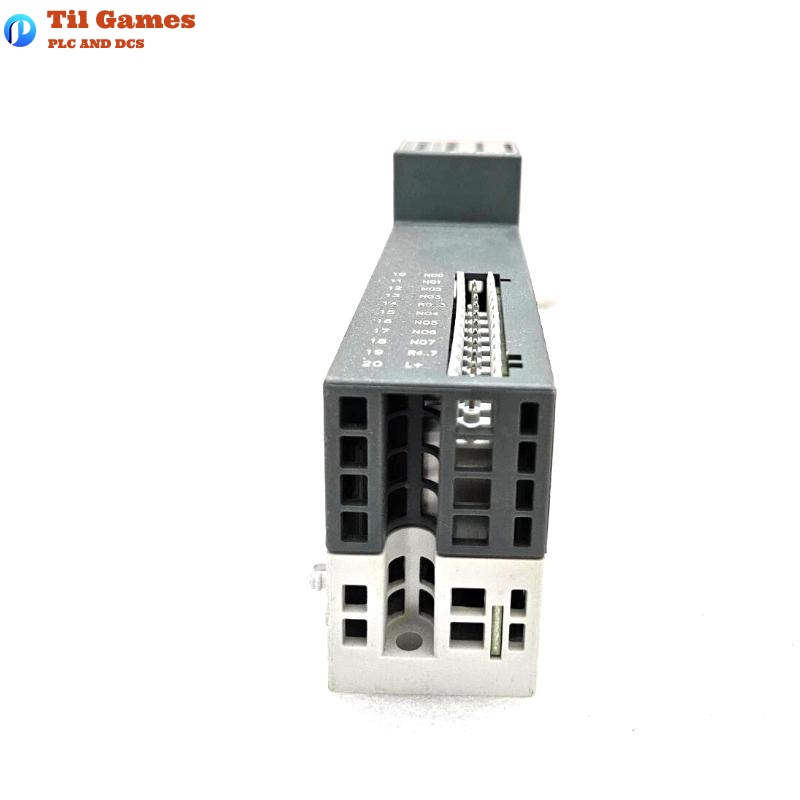

| Module Type | DO571 |
| Ordering Code | 1TNE968902R2202 |
| Number of Channels | 8 normally-open relay outputs |
| Group Division | 2 groups, 4 channels per group |
| Rated Output Voltage | 24 V DC / 24 V AC or 120/240 V AC |
| Max Current per Channel | 2.0 A (resistive load), 1.5 A (240 V AC pilot duty) |
| Max Current per Group | 8 A |
| Lamp Load Capability | Max 200 W (230 V AC), Max 30 W (24 V DC) |
| Switching Delay | Max 10 ms (ON and OFF) |
| Isolation | Galvanic isolation between channel groups and rest of the module |
| Power Supply Range | 24 V DC (-15%, +20%) |
| Reverse Voltage Protection | Yes |
| Wiring Method | Screw/spring terminals, front connection |
| EMC Compliance | Meets IEC 61131-2, IEC 61000 standards |
| Max Power Dissipation | 2.0 W |
| Output Protection | External fast-blow fuse (recommended 5 A) |
| Output Signal Indication | Yellow LED per channel, lit when signal is high |
| Mounting Position | Horizontal or vertical |
| Operating Temperature | 0°C to +60°C (horizontal), 0°C to +40°C (vertical, 50% load) |
| Storage/Transport Temperature | -40°C to +70°C |
| Protection Class | IP20 (fully connected and covered) |
| Cable Length Limit | Shielded: 500 m, Unshielded: 150 m |
| Dimensions | 75 x 135 x 34 mm |
| Weight | 0.138 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: Does the DO571 module have short-circuit or overload protection?
A1: No, external fast-blow fuses or circuit breakers are required.
Q2: What is the maximum current per output channel?
A2: Each channel supports up to 2.0 A for resistive loads.
Q3: Is there isolation protection on the outputs?
A3: Yes, there is galvanic isolation between the output groups and the rest of the module.
Q4: Can the module be mounted both horizontally and vertically?
A4: Yes, but vertical installation requires load derating to 50% per group.
Q5: Is DO571 suitable for high switching frequency applications?
A5: No, it is not recommended. Max switching frequency is 1 Hz for resistive loads.
Q6: Are there cable length limitations when using the module?
A6: Yes, up to 500 m for shielded cables, and 150 m for unshielded.
Q7: Is a protective earth (PE) connection required?
A7: Not required for the module itself, but functional earth (FE) grounding is recommended for EMC.
Q8: Are the output signals visually indicated?
A8: Yes, each channel has a yellow LED that lights up when the signal is high.
