Technical Specifications
| Parameter | Description |
|---|---|

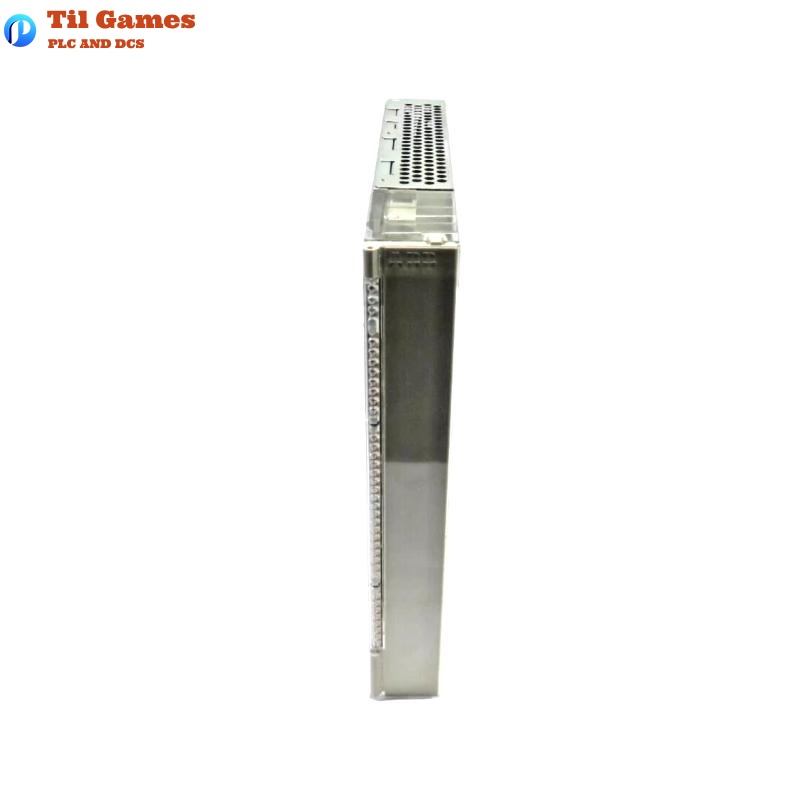

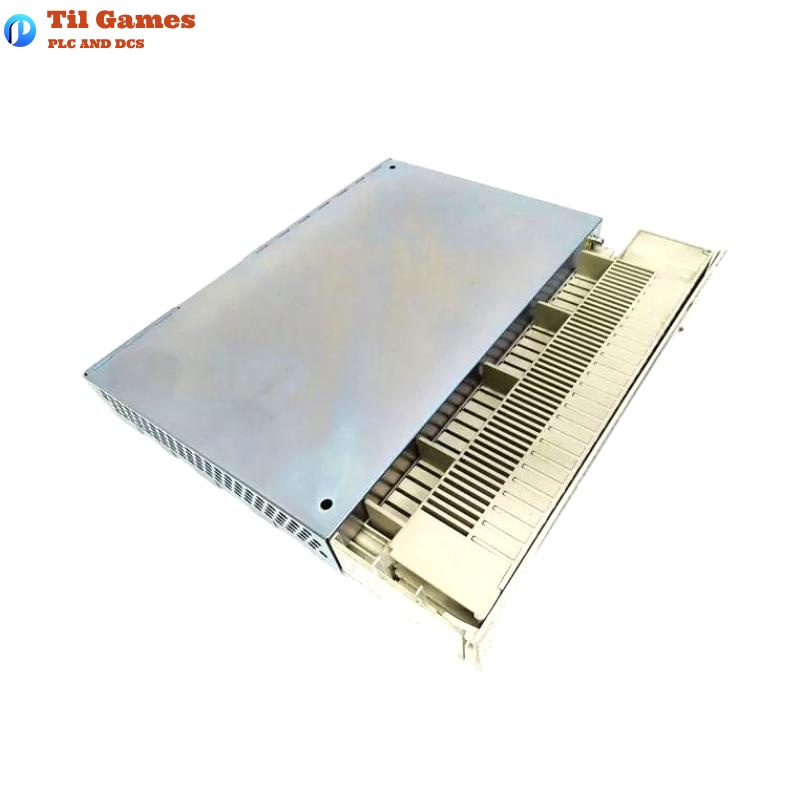

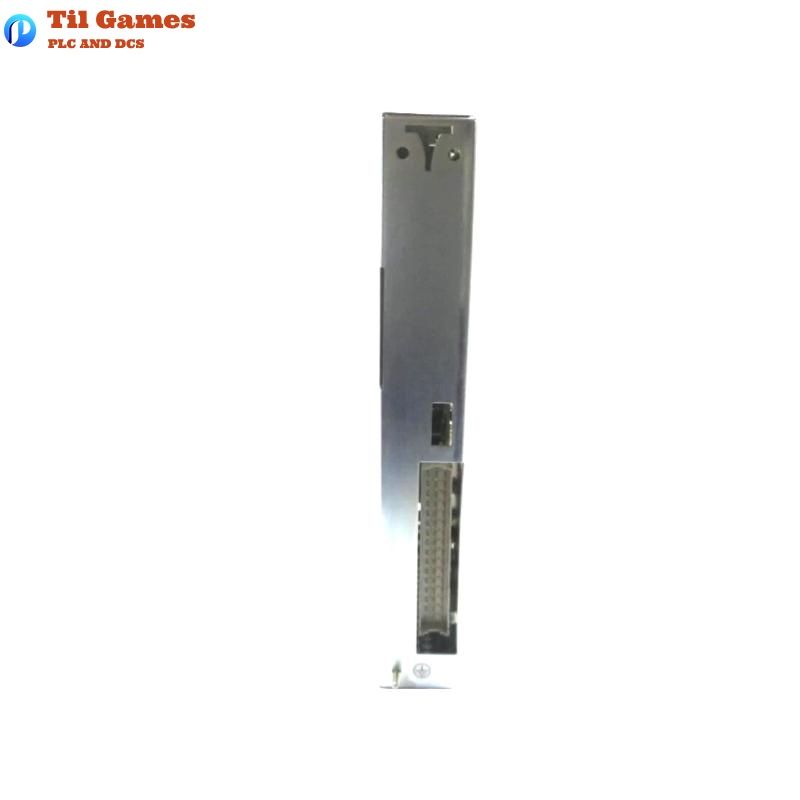

| Product Model | DO620 3BHT300009R1 |
| Product Type | Digital Output Module |
| Series | S600 Series |
| Output Channels | 32 channels |
| Isolation Groups | 4 opto-isolated groups (8 outputs per group) |
| Rated Voltage | < 60 V DC |
| Max Current | 0.5 A per channel |
| Output Type | Short-circuit proof transistor outputs |
| Isolation Method | Opto-isolation |
| Module Width | 40 mm |
| Module Height | 252 mm |
| Module Depth | 273 mm |
| Weight | 1.2 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: How many output devices can the DO620 module control?
A1: The DO620 module supports up to 32 individual digital output devices.
Q2: What is the maximum current per output channel?
A2: Each output channel supports a maximum of 0.5 A.
Q3: Does the module provide short-circuit protection?
A3: Yes, all output channels are short-circuit protected.
Q4: Are the channels galvanically isolated?
A4: Yes, the 32 channels are divided into four opto-isolated groups.
Q5: What are the typical applications for the DO620 module?
A5: The module is commonly used in industrial automation for relay driving, valve control, and signal indication.
Q6: What is the maximum supported voltage?
A6: The module supports a maximum of 60V DC.
Q7: Is the DO620 compatible with the ABB AC 800M control system?
A7: Yes, it is fully compatible with ABB’s AC 800M system.
Q8: Does the module support hot-swapping?
A8: No, the module does not support hot-swapping. Power should be turned off before replacement.
