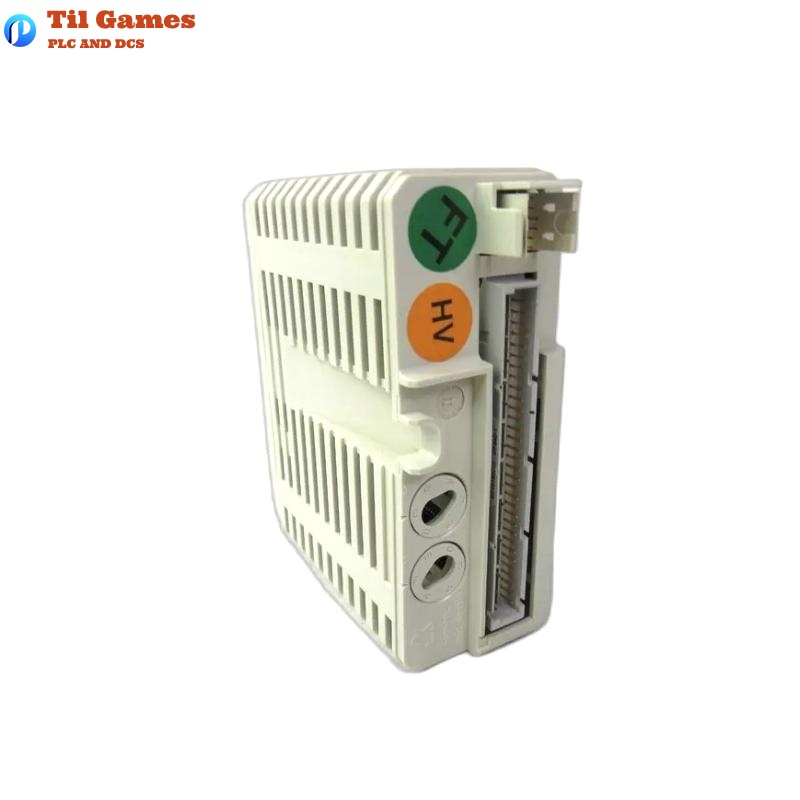

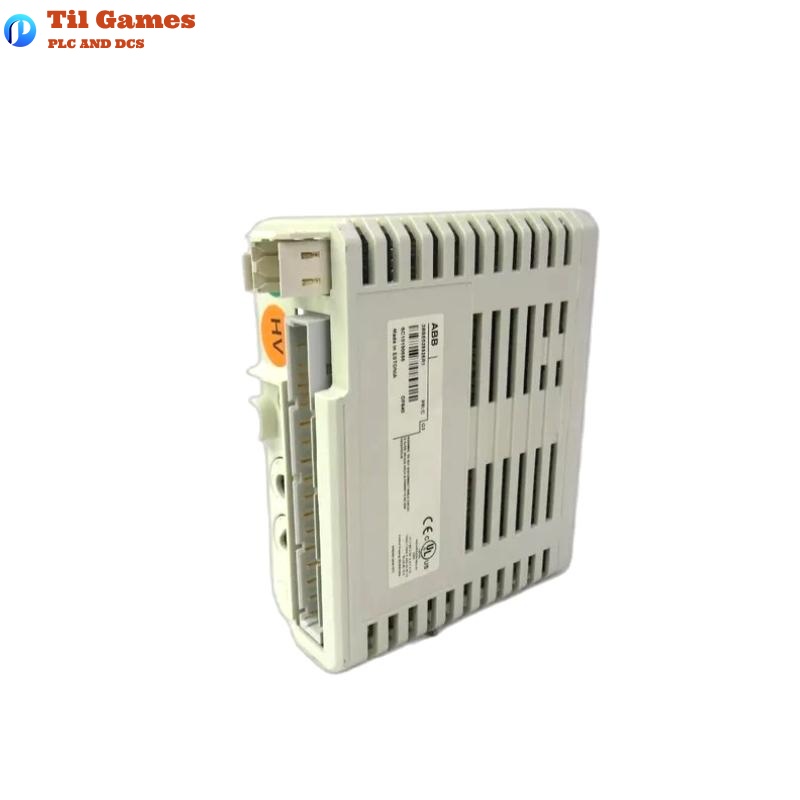

Technical Data Table
| Parameter | Description |
|---|---|
| Product Type | Pulse Counter Module |
| Article Number | 3BSE028926R1 |
| Number of Channels | 8 channels, independently configurable |
| Input Signal Type | 24 V DC (19.2 – 32 V DC) |
| Frequency Measurement Range | 0.5 Hz – 20 kHz |
| Counting Method | 16-bit accumulated counter |
| Digital Input Support | Inputs can be read as digital signals |
| Input Interface | NAMUR, 12 V, 24 V |
| Electrical Isolation | Groupwise isolation from ground |
| Max Field Cable Length | 200 meters |
| Power Dissipation | 4 W |
| +5V Modulebus Current | 115 mA |
| +24V External Current | 97 mA + external load |
| Diagnostics | Self-diagnostics, loop supervision, channel error |

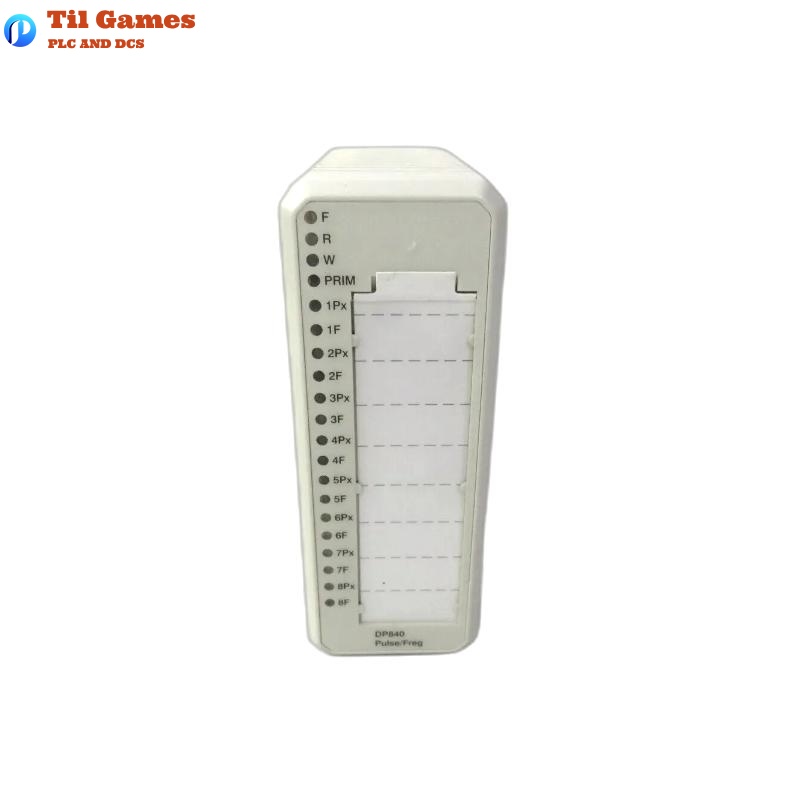

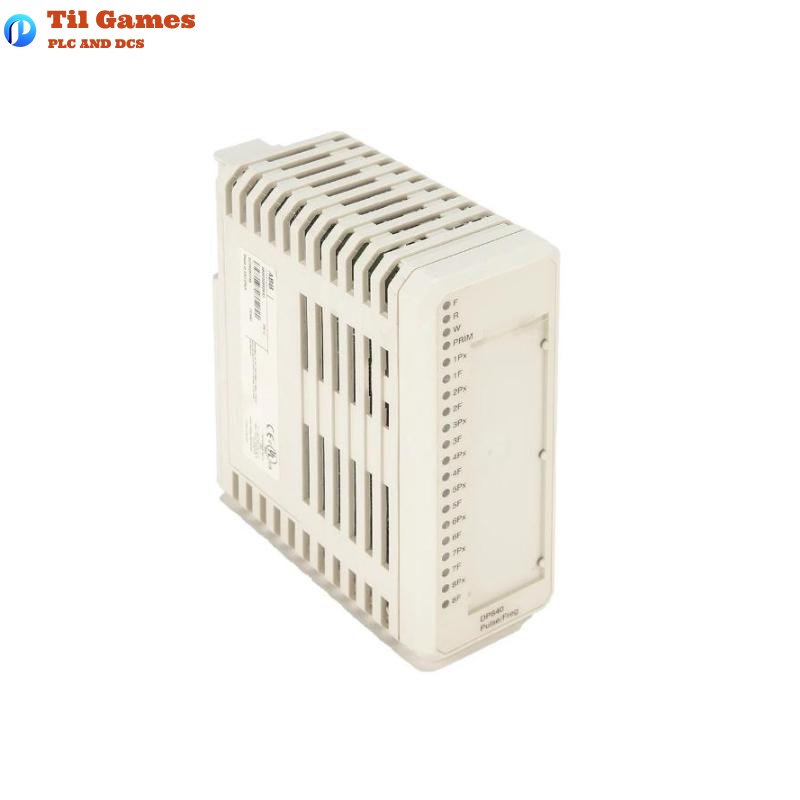

| Status LEDs | Fault, Run, Warning, Primary, Pulse and Fault per channel |
| Rated Insulation Voltage | 50 V |
| Dielectric Test Voltage | 500 V AC |
| Operating Temperature | 0°C to +55°C (certified +5°C to +55°C) |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | 5% to 95%, non-condensing |
| Protection Class | IP20 (IEC 60529) |
| Mounting Orientation | Vertical, max ambient 40°C in compact MTU configuration |
| Dimensions (W x D x H) | 45 x 102 x 119 mm |
| Weight | 0.15 kg |
| Compatible MTUs | TU810V1, TU812V1, TU814V1, TU830V1, TU833, etc. |
| Redundancy Support | Yes |
| Standards & Certifications | CE, EN 61010, ATEX Zone 2, UL, DNV, LR, RoHS, WEEE |
FAQ
ABB DP840 Frequently Asked Questions
Q1: How many channels does the DP840 module provide?
A1: The DP840 module provides 8 independent channels, each configurable for pulse counting or frequency measurement.
Q2: What signal levels are supported by the module?
A2: It supports NAMUR, 12 V, and 24 V transducer signal levels.
Q3: What is the maximum input frequency supported?
A3: The module supports frequency measurements up to 20 kHz per channel.
Q4: Can the inputs be used as digital inputs?
A4: Yes, each input channel can be configured to operate as a digital input.
Q5: What diagnostic functions are available?
A5: The module supports advanced diagnostics including module error, channel error, and loop supervision.
Q6: What are the ambient temperature limits for installation?
A6: The operating temperature is 0°C to +55°C, but in compact MTU vertical mounting, the maximum is 40°C.
Q7: Which MTU models are compatible with the DP840?
A7: Compatible MTUs include TU810V1, TU812V1, TU814V1, TU830V1, TU833, among others.
Q8: Does the DP840 support redundant configurations?
A8: Yes, the DP840 is suitable for both single and redundant system setups.
