Technical Specifications
| Parameter | Value |
|---|---|

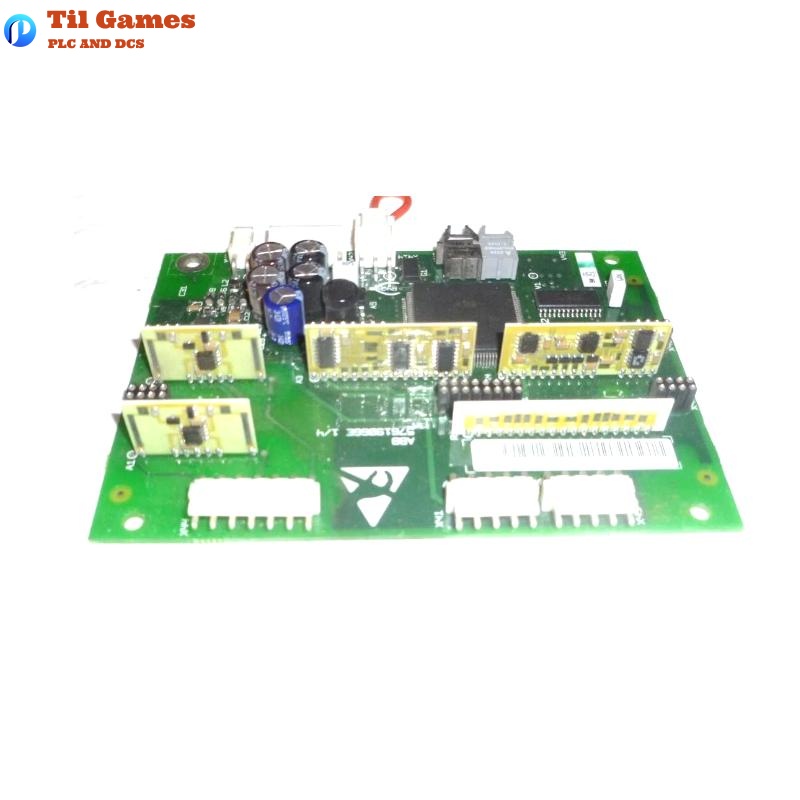

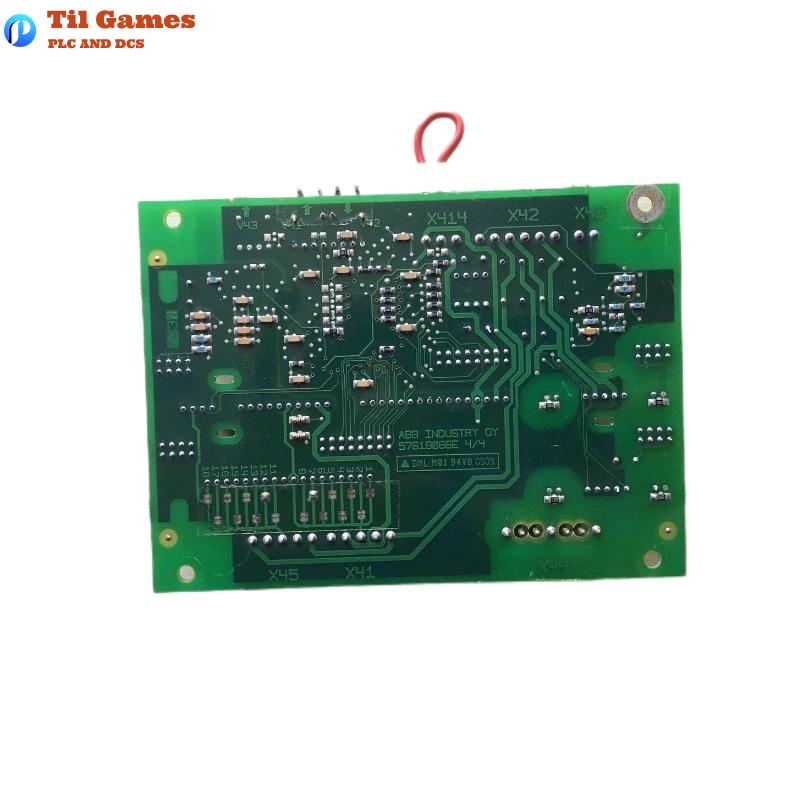

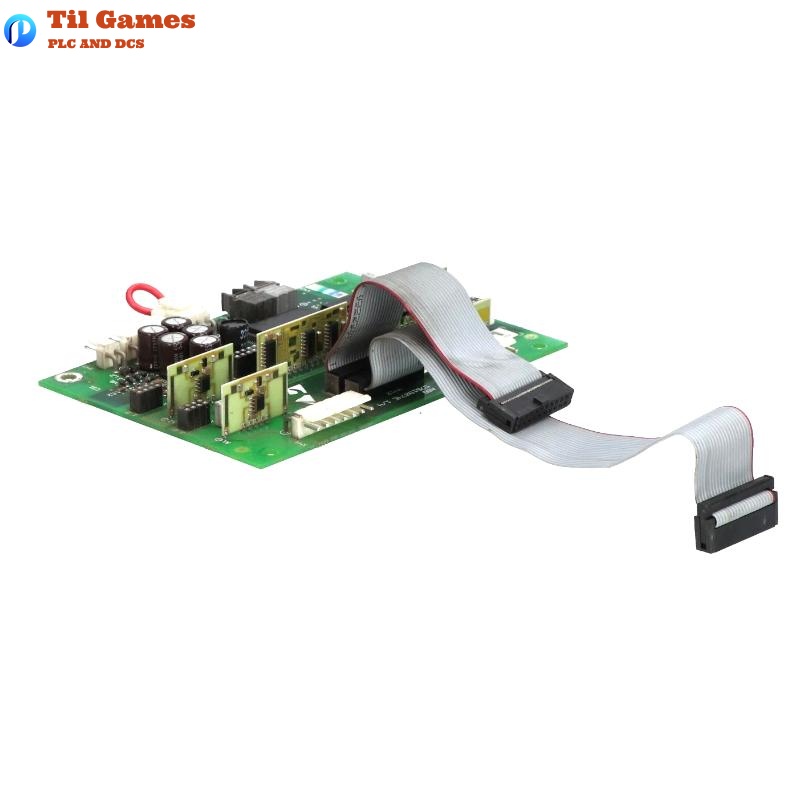

| Model | NINT-44C 58913022C |
| Type | Main Circuit Interface Board |
| Application | Interface control board for ACS 600 MultiDrive |
| Electrical Function | Command distribution and signal measurement |
| Power Supply | Supplied via DC bus from drive unit |
| Board Structure | Plug-in type, installed inside inverter cabinet |
| Quantity per Module | One NINT board per phase module block |
| System Compatibility | ABB ACS 600 MultiDrive system |
| Installation Position | Located inside the NDCU control enclosure |
| Dimensions | 180 × 150 × 40 mm |
| Weight | 0.41 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the main function of the NINT-44C board?
A1: The NINT-44C handles command distribution from the NAMC and collects measurement signals from the power circuit.
Q2: Where is the NINT-44C installed?
A2: It is installed in the drive control unit (NDCU), functioning as an interface between control and power components.
Q3: Can the NINT-44C be replaced without powering down the system?
A3: No. Power must be completely disconnected, and capacitors discharged before replacement to ensure safety.
Q4: Which systems is NINT-44C compatible with?
A4: It is compatible with inverter frames R4i and above within the ABB ACS 600 MultiDrive system.
Q5: What are the symptoms of a faulty NINT-44C?
A5: The system may fail to start, fail to respond to control signals, show alarm indicators, or report communication errors.
Q6: Can system parameters be configured via the NINT-44C?
A6: No. Parameters are set through the control panel or supervisory system, not through the NINT board.
Q7: Is repair of a damaged NINT-44C recommended?
A7: Repair is not recommended. Replace with an original spare part to maintain system reliability.
Q8: What precautions should be taken during transport or replacement?
A8: Use anti-static protection (ESD wrist strap), and store or transport the board using ESD-safe packaging.
