Technical Specifications
| Parameter | Description |
|---|---|
| Model | NINT-71C |
| Order Code | 64513583 |

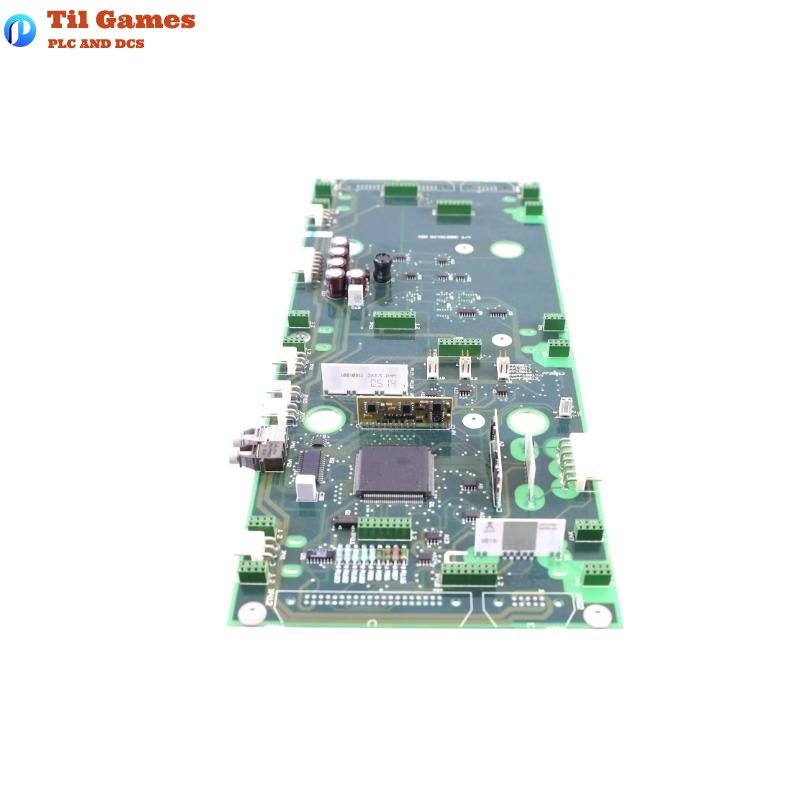

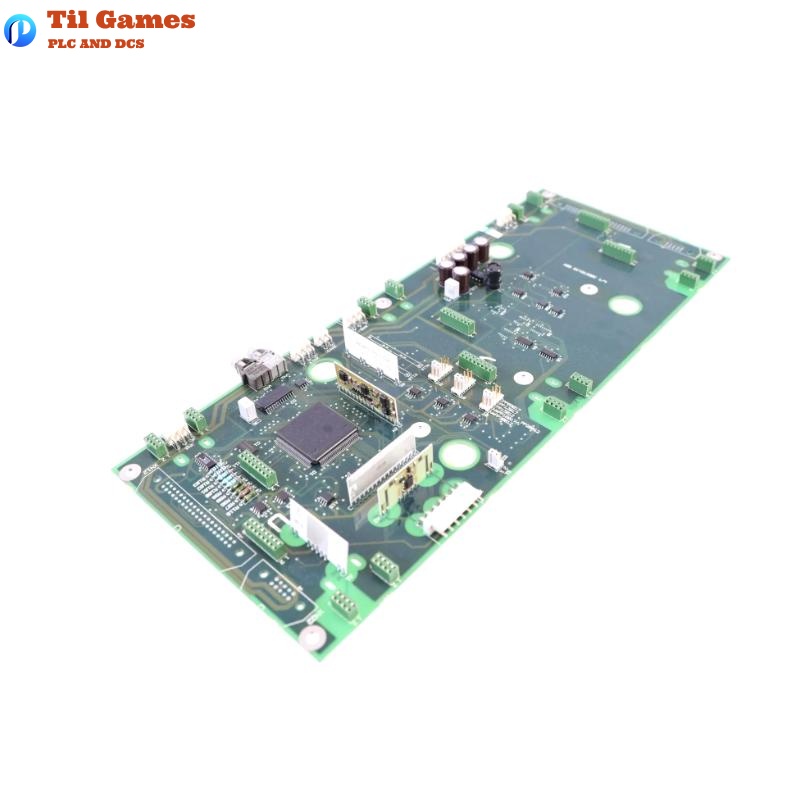

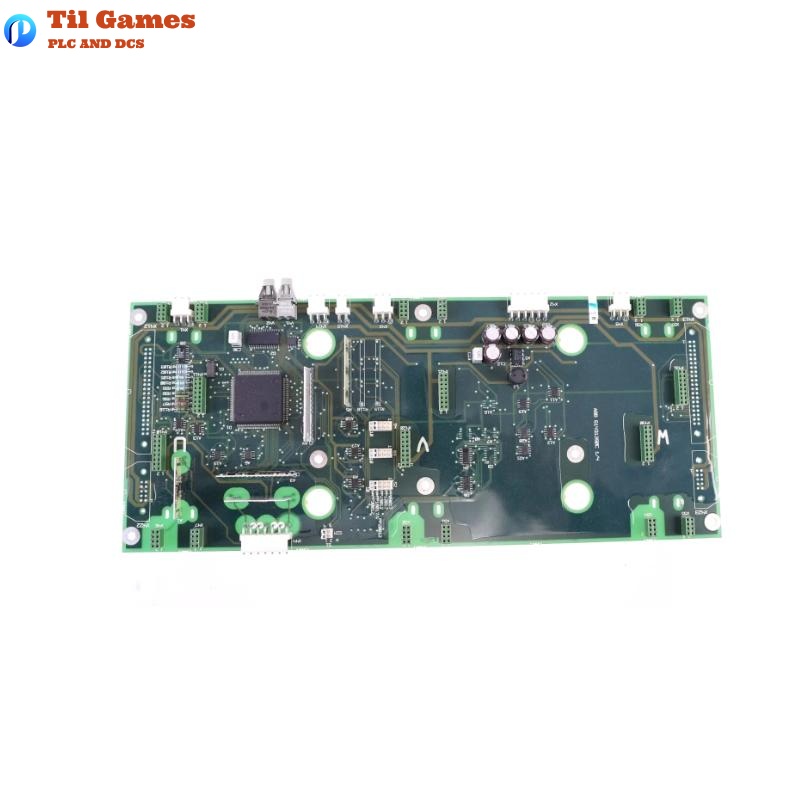

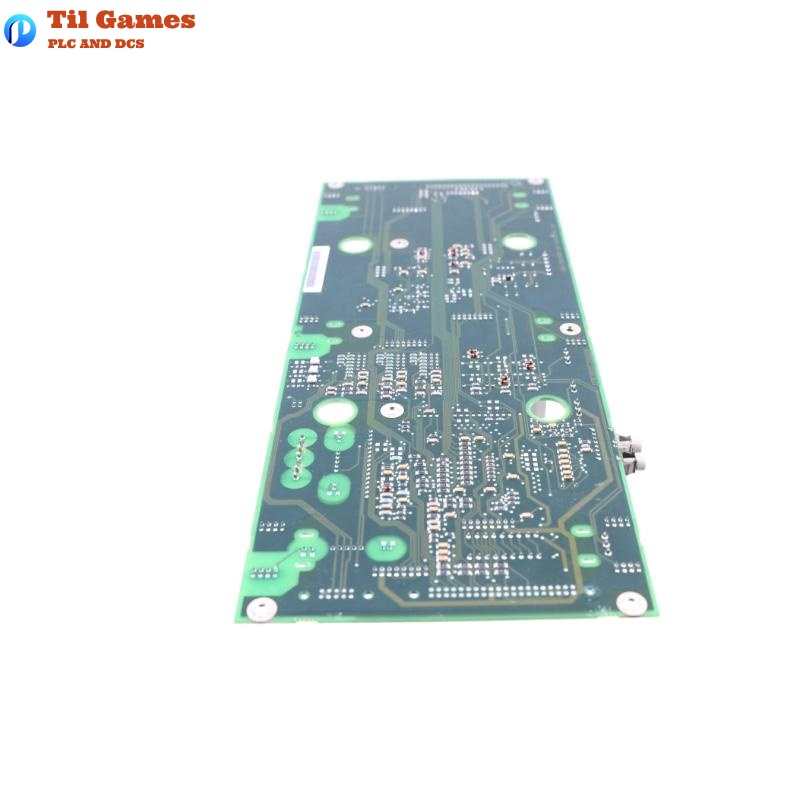

| Product Type | Main Circuit Interface Board |
| System Application | ACS 600 MultiDrive |
| Function | Sends control commands and receives measurements |
| Signal Handling | Drives IGBT gate signals, collects feedback |
| Supported Inverter Sizes | From R4i to R12i frame sizes |
| Mounting Method | DIN rail inside the control rack |
| Dimensions | 180 × 150 × 40 mm |
| Weight | 0.43 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the NINT-71C board?
A1: It functions as an interface for sending control commands and receiving measurement signals in the ACS 600 MultiDrive system.
Q2: Which inverter sizes are compatible with the NINT-71C?
A2: It supports inverter frame sizes ranging from R4i to R12i, including parallel module configurations.
Q3: Can the NINT-71C board be replaced individually?
A3: Yes, it can be replaced separately but only by qualified personnel under powered-down conditions.
Q4: How does it communicate with the NAMC controller?
A4: It connects to the NAMC board via fiber optics or dedicated signal lines.
Q5: Does it support control of parallel modules?
A5: Yes, through the NPBU branching unit, it can control multiple parallel-connected phase modules.
Q6: How to troubleshoot communication faults?
A6: Check the status of LED indicators, verify signal cable connections, controller output, and power supply levels to the board.
Q7: Are the control signals isolated?
A7: Yes, all signals are galvanically isolated to ensure safe operation of the main circuit.
Q8: Is redundant operation supported?
A8: Normally used as a single unit; redundancy requires a specific system design.
