Technical Specifications
| Parameter | Description |
|---|---|

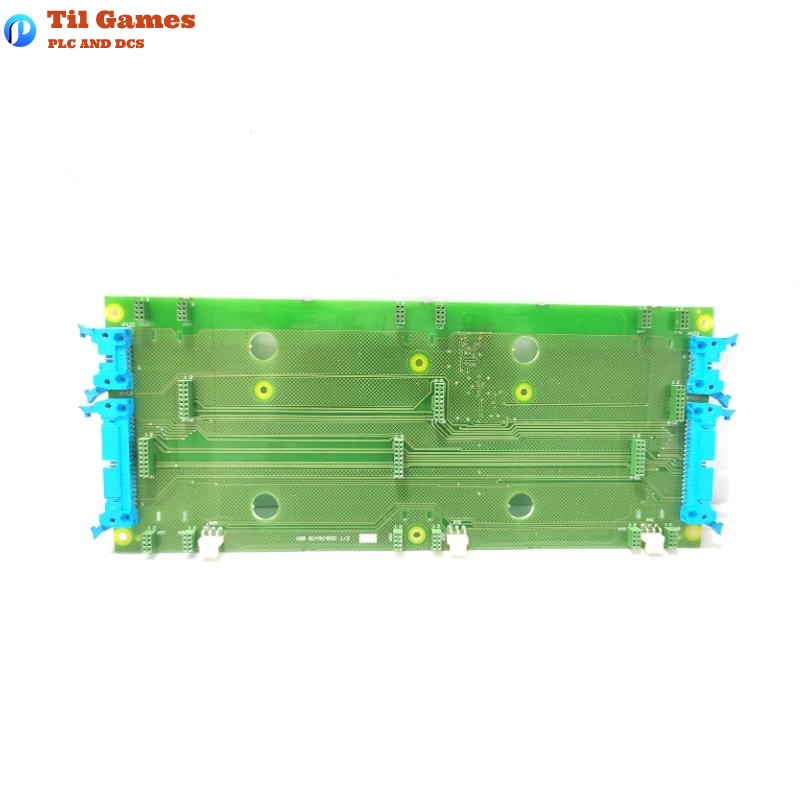

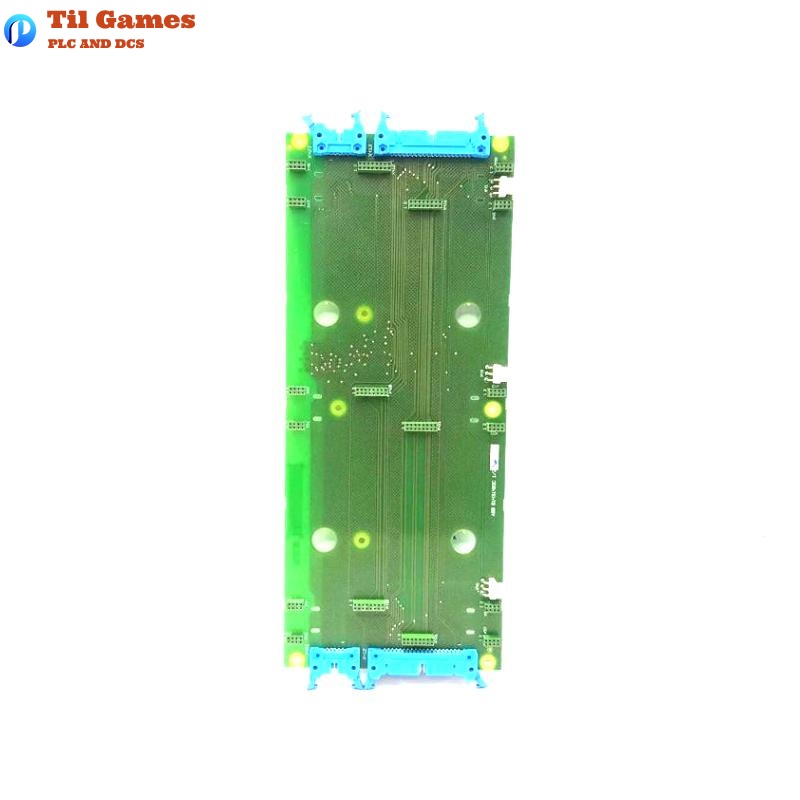

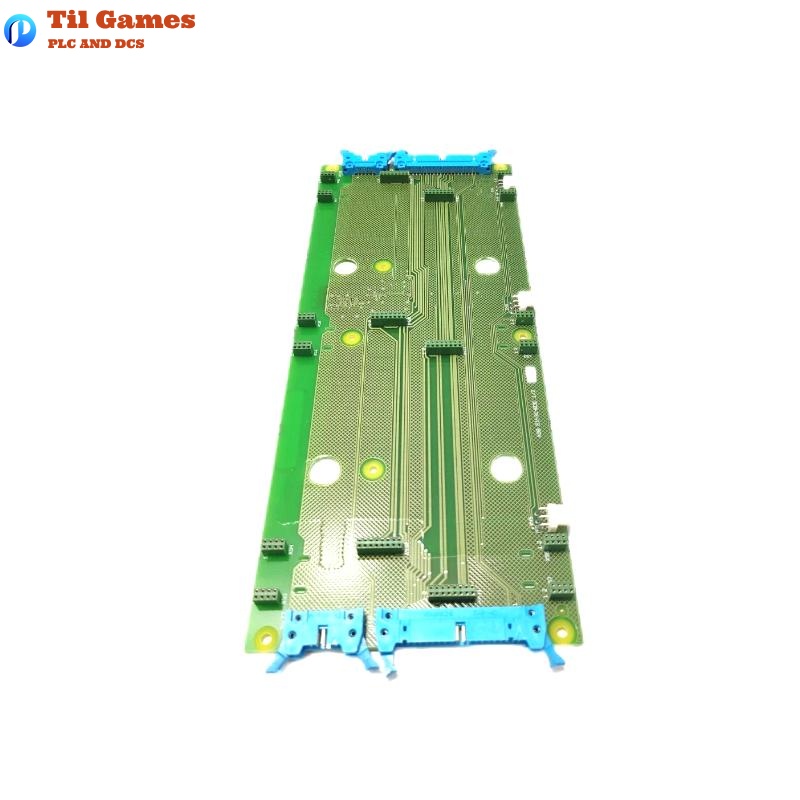

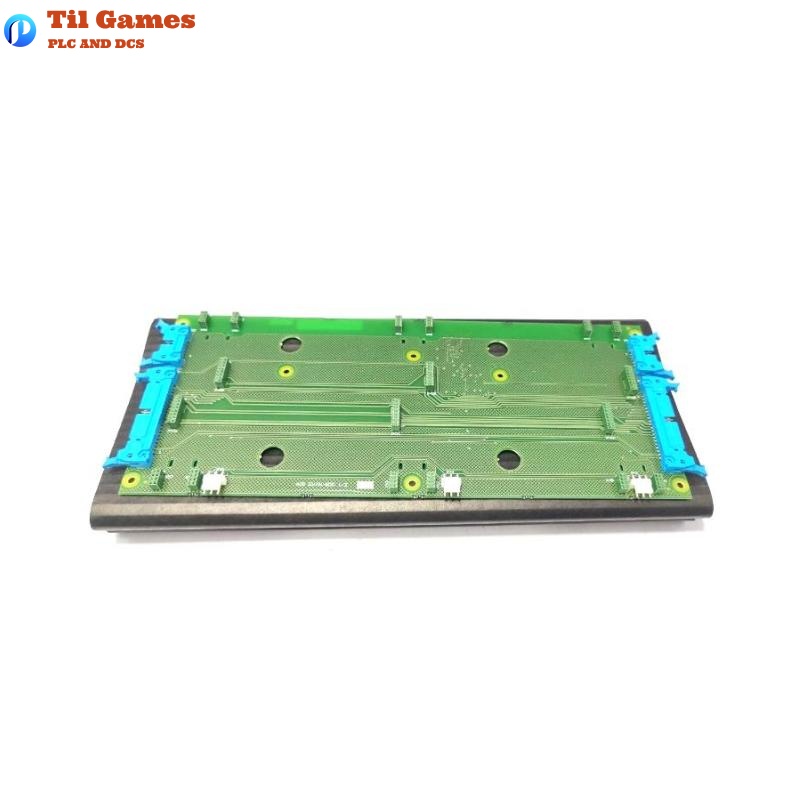

| Model | NXPP-03C |
| Product Type | Control Distribution Board |
| Application | Used in ABB ACS 600 drive system |
| Mounting Type | Rack-mounted / cabinet integration |
| Voltage Supply | 24 VDC (typical control voltage) |
| Interface | Compatible with NAMC controller modules |
| Communication Support | DDCS (Drive-to-Drive Communication System) |
| Functional Use | Distributes control signals across system |
| Protection Class | IP20 (cabinet internal installation) |
| Dimensions | 100 x 50 x 30 mm |
| Weight | 0.2 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the main function of the NXPP-03C module?
A1: It acts as a control signal distribution board for ACS 600 system components.
Q2: Which ABB drive systems is the NXPP-03C compatible with?
A2: It is primarily designed for use with the ACS 600 drive system.
Q3: What is the standard control voltage requirement?
A3: The NXPP-03C typically operates at 24 VDC.
Q4: Is the NXPP-03C suitable for outdoor use?
A4: No, it is intended for installation inside control cabinets (IP20).
Q5: Can NXPP-03C be hot-swapped during operation?
A5: No, power must be disconnected before replacement or maintenance.
Q6: What communication protocol does it support?
A6: It supports DDCS, ABB’s proprietary drive communication protocol.
Q7: Does it require any firmware updates?
A7: No, the NXPP-03C is a passive board and does not require firmware.
Q8: How is it physically installed in the system?
A8: It is rack-mounted inside an electrical cabinet alongside the drive controller.
