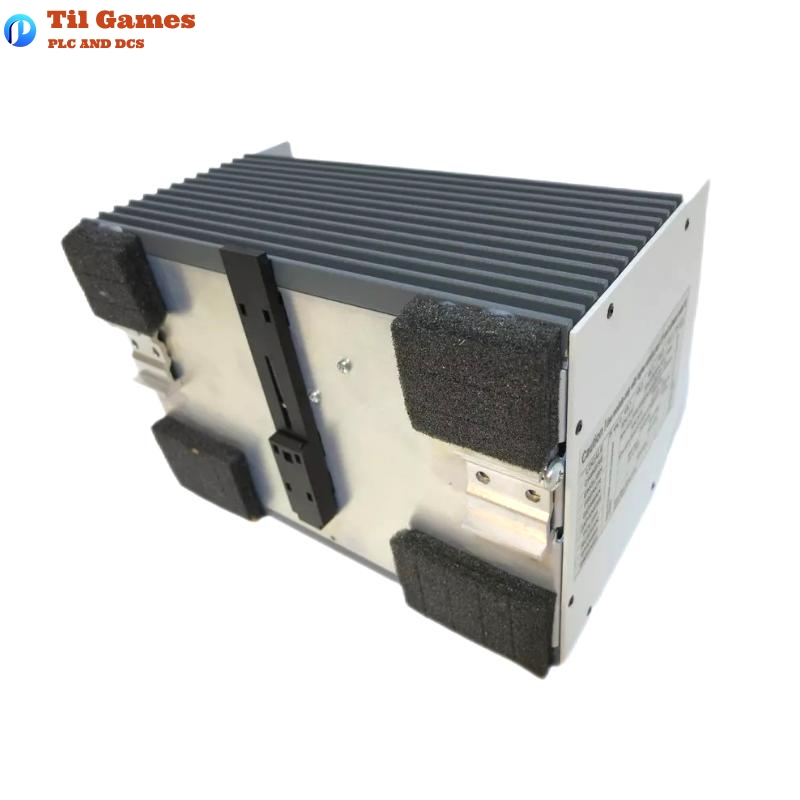

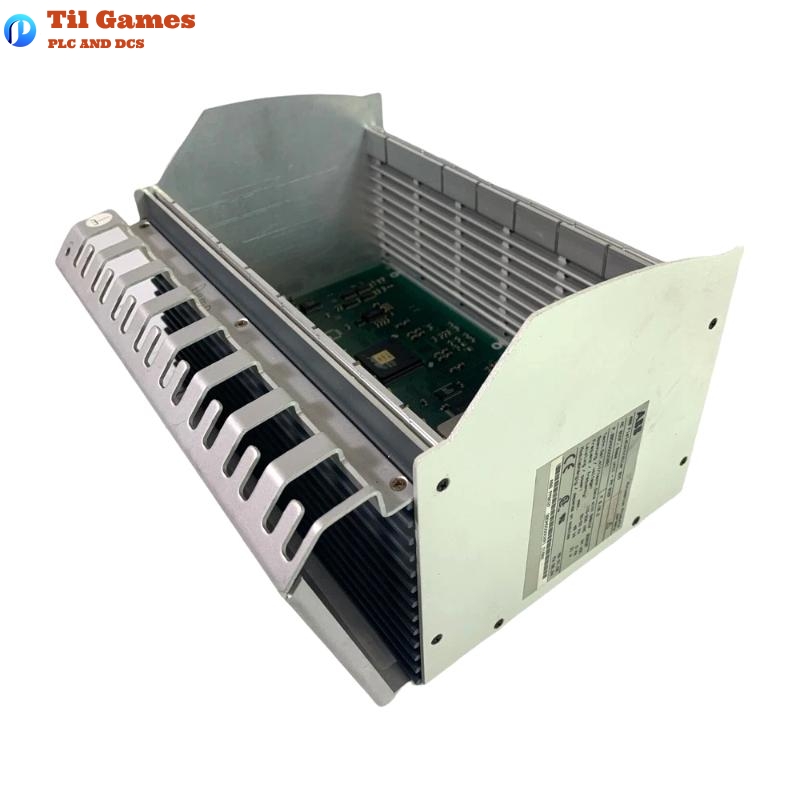

Technical Specifications for ABB PM 802F 3BDH000002R1 Freelance 800F Base Unit
| Parameter | Value |
|---|---|
| CPU | Intel 80960HT25/75, 32-bit RISC Super Scalar, up to 150 MIPS |
| RAM | PM 802F: 4 MB static, battery-backed |
| I/O Scan Cycle Time | Configurable, depends on fieldbus module capabilities |
| Processing Time | < 1 ms for binary/16-bit instructions, < 2 ms for fixed-point instructions, < 1.5 ms for 32-bit instructions |
| Power Consumption | PM 802F: Max. 6.3 W (depends on CPU usage and cycle time) |
| Power Supply | 115-230 V AC or 2×24 V DC |
| Dimensions | Width: 239 mm, Height: 202 mm, Depth: 164 mm |
| Weight | 1.6 kg (basic unit) |
| Backup | Battery backup, watchdog included |
| Temperature Range | 0-60°C (operational), 0-70°C (internal) |
| Ethernet Modules | 2 slots for Ethernet communications modules |
| Fieldbus Modules | 4 slots for fieldbus modules |
| Flash EPROM | PM 802F: 4 MB, 32-bit words |
FAQ
FAQs for ABB PM 802F 3BDH000002R1 Freelance 800F Base Unit
-
What is the power supply voltage range for the PM 802F?
The PM 802F supports a power supply voltage range of 115-230 V AC or 2 x 24 V DC. -
How much RAM does the PM 802F have?
The PM 802F is equipped with 4 MB of static RAM, which is battery-backed. -
What is the maximum power consumption of the PM 802F?
The maximum power consumption of the PM 802F is 6.3 W, depending on CPU usage and cycle time. -
Can the PM 802F support redundancy?
Yes, controller redundancy can be achieved by using two AC 800F controllers. Additionally, Ethernet communication and fieldbus lines support redundant operation. -
What is the size of the PM 802F?
The dimensions of the PM 802F are 239 mm in width, 202 mm in height, and 164 mm in depth. -
What is the weight of the PM 802F?
The weight of the PM 802F basic unit is 1.6 kg. -
Does the PM 802F have battery backup?
Yes, the PM 802F includes a battery backup to protect the system’s data in case of power loss. -
What type of processor is used in the PM 802F?
The PM 802F uses an Intel 80960HT25/75 32-bit RISC Super Scalar processor, with a processing speed of up to 150 MIPS.
