Technical Specifications
| Parameter | Specification |
|---|---|

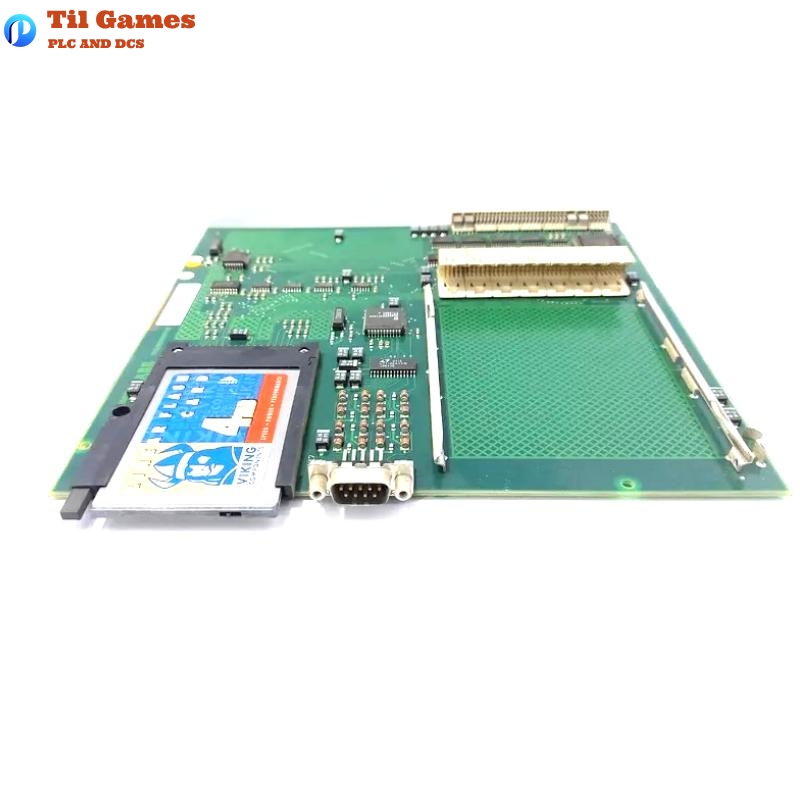

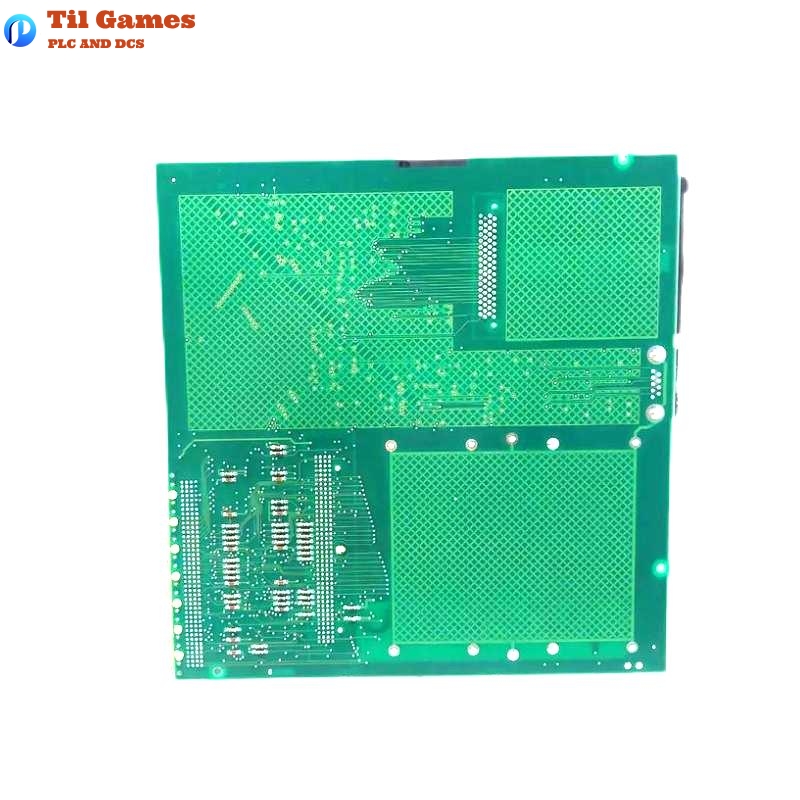

| Model Number | PM152 |
| Ordering Code | 3BSE003643R1 |
| Product Type | Analog Output Module |
| System Compatibility | ABB Freelance AC800F |
| Output Channels | 8 or 16 isolated channels |
| Output Signal Types | Voltage (single-ended or differential), Current |
| Resolution | 12-bit or 16-bit |
| Accuracy | High precision, low signal distortion |
| Communication Interface | S800 I/O bus |
| Diagnostic Functions | Yes (status monitoring and error detection) |
| Scalability | Supports multi-module configuration |
| Operating Temperature | 0 to 55°C |
| Storage Temperature | -40 to +70°C |
| Relative Humidity | 5 to 95% (non-condensing) |
| Power Supply | Supplied via S800 I/O system |
| Dimensions (W×H×D) | 24 × 125 × 120 mm |
| Weight | 0.35 kg |
| Mounting | DIN rail or rack mounting |
| Housing Protection | IP20 |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the primary function of the PM152 module?
A1: The PM152 converts digital signals from the AC800F controller into analog signals to drive field devices such as actuators or control valves.
Q2: How many analog outputs does the PM152 support?
A2: The module typically offers either 8 or 16 isolated analog output channels depending on the configuration.
Q3: What types of analog output signals are supported?
A3: It supports both voltage outputs (single-ended or differential) and current outputs for flexible field application.
Q4: What resolution does the PM152 module offer?
A4: The module delivers high-resolution outputs, available in either 12-bit or 16-bit formats, ensuring accurate analog signal generation.
Q5: Is the PM152 module hot-swappable?
A5: No, the PM152 is not hot-swappable. Power should be turned off during installation or replacement.
Q6: Can multiple PM152 modules be used in a single AC800F system?
A6: Yes, the system allows scalable configuration, and multiple PM152 modules can be added to increase analog output capacity.
Q7: How does the PM152 module communicate with the AC800F controller?
A7: Communication occurs through the S800 I/O bus, ensuring efficient and synchronized data exchange with the base unit.
Q8: Are there built-in diagnostics in the PM152?
A8: Yes, the module includes diagnostic capabilities to monitor status, signal errors, and communication integrity for maintenance and troubleshooting purposes.
