Technical Specifications
| Parameter | Value |
|---|---|

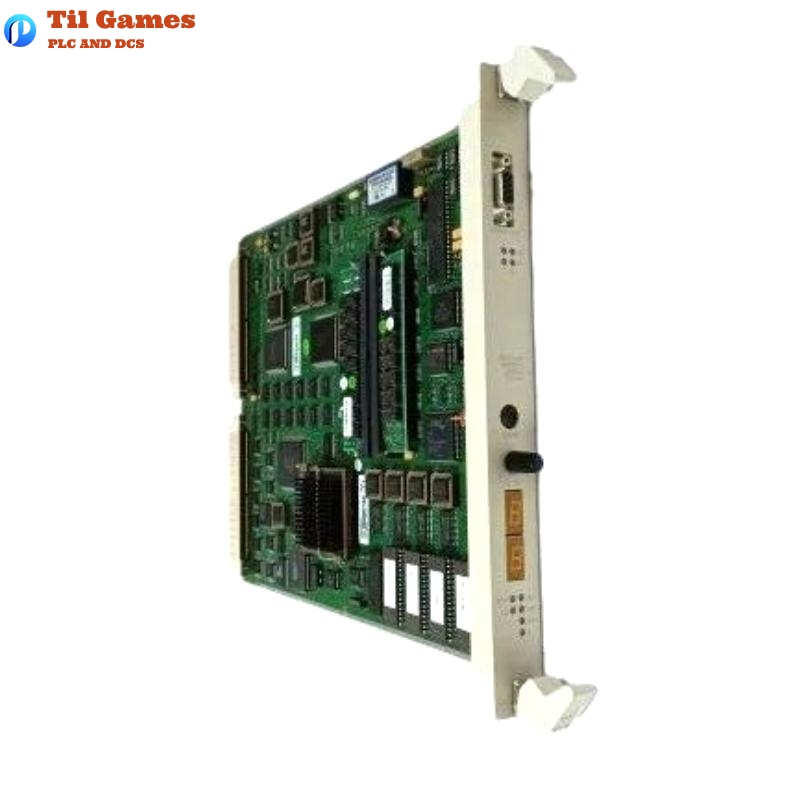

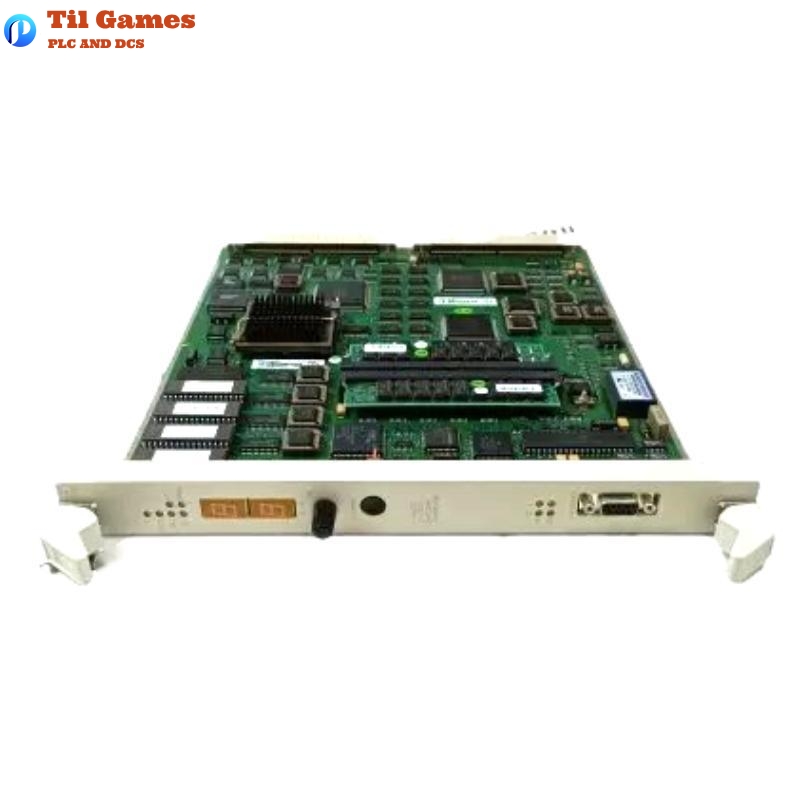

| Model Number | PM510V16 |
| Part Number | 3BSE016240R1 |
| Processor Memory | 16 MB RAM |
| Voltage Requirements | 24 V DC |
| Power Consumption (5V) | 5.0 A |
| Power Consumption (24V) | 1.49 A |
| Cooling Load | 208 BTU/H (typical) |
| Subrack Compatibility | AC460 subrack |
| Communication Support | Supports up to two carrier modules |
| Fieldbus Support | 1 built-in S100 I/O bus |
| Number of TRIO Blocks | 30 per bus (non-redundant), max 60 total |
| Mounting | Installed in AC460 subrack |
| Redundancy | Supports redundant configuration |
| Operating Temperature | +5°C to +40°C |
| Storage Temperature | -40°C to +70°C |
| Humidity | 15% to 85% non-condensing |
| Dimensions (W × H × D) | 477 × 22.5 × 261 mm |
| Weight | 0.875 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the main difference between the PM510V08 and PM510V16 modules?
A1: The primary difference is memory capacity. PM510V08 has 8MB RAM, while PM510V16 provides 16MB, which allows for more complex applications and larger configurations.
Q2: Does the PM510V16 support redundant operation?
A2: Yes, the PM510V16 can be used in redundant configurations by installing two modules in the system.
Q3: What type of subrack is required for mounting the PM510V16 module?
A3: The module is designed for installation in the AC460 subrack.
Q4: How many I/O busses are built into the PM510V16?
A4: One S100 I/O bus is integrated into each PM510V16 processor module.
Q5: What is the power requirement for the PM510V16 module?
A5: It typically draws 5.0 A at 5V DC and 1.49 A at 24V DC.
Q6: Can the PM510V16 be used with TRIO fieldbus blocks?
A6: Yes, each processor module can connect up to 60 TRIO blocks across two busses.
Q7: What is the cooling requirement for the module?
A7: The typical cooling load for the PM510V16 is 208 BTU/H.
Q8: What is the weight and size of the PM510V16 module?
A8: The module weighs 0.875 kg and measures 477 mm × 22.5 mm × 261 mm.
