Technical Specifications
| Parameter | Description |
|---|---|

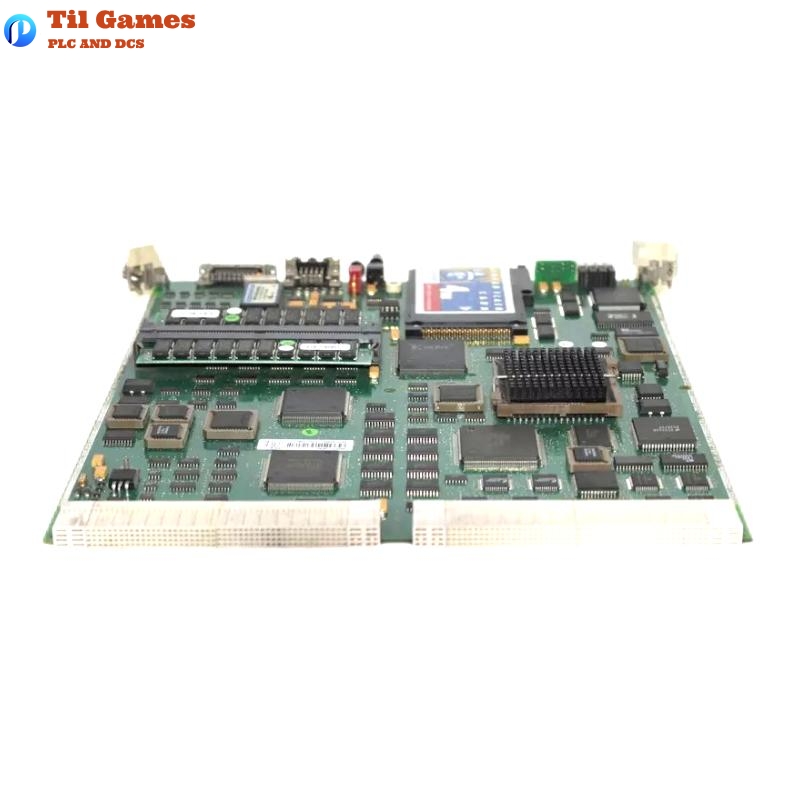

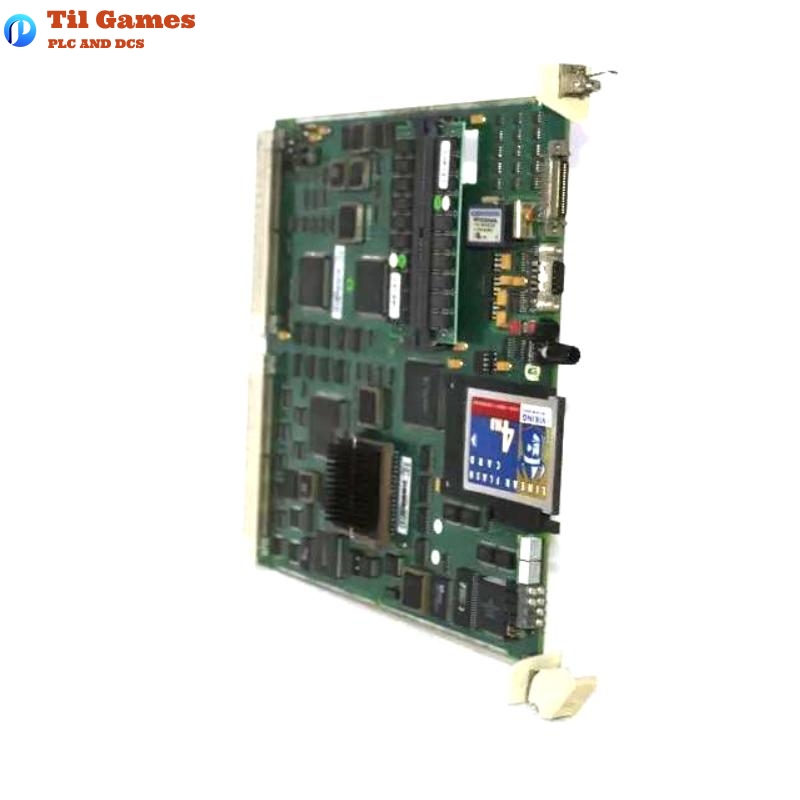

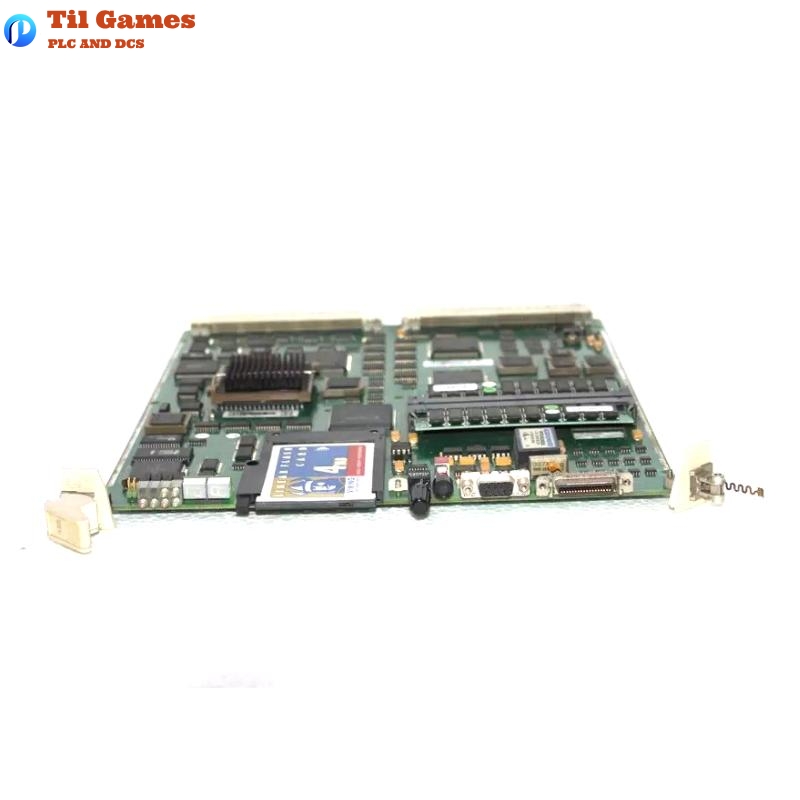

| Product Model | ABB PM511V08 |
| Part Number | 3BSE011180R1 |
| Processor | Motorola MC68040, 25 MHz |
| Memory Type | Dynamic RAM with ECC |
| RAM Capacity | 8 MB (non-expandable) |
| Backup Power Supply | Maintains memory for min. 4 hrs (2 hrs in redundancy mode) |
| Flash Card Interface | PCMCIA slot for system/application program storage |
| I/O Communication | S100 I/O bus interface |
| Diagnostic Interface | LED indicators and character display |
| Operating Modes | Rotary switch (AUTO, STOP, CLEAR, OFFLINE) + restart button |
| Redundancy Support | Supports hot-standby with bumpless switchover (< 25 ms) |
| System Clock | Internal calendar clock with battery backup |
| External Sync | Via external minute pulse through TC520 module |
| Maintenance Port | One dedicated port for configuration tools (Advant Station 140) |
| Redundant Control Link | Built-in for dual PM511V configuration |
| Mounting | Installed in RF533 subrack |
| Standards | CE marked (EMC Directive 89/336/EEC, Low Voltage Directive 72/23/EEC) |
| Dimensions (W x D x H) | 274.5 x 27 x 270 mm |
| Weight | 0.76 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What is the CPU model used in the PM511V08 processor module?
A1: It uses a Motorola MC68040 running at 25 MHz.
Q2: How much memory does the PM511V08 module provide?
A2: It includes 8 MB of dynamic RAM with error correction (ECC).
Q3: Can the memory be expanded?
A3: No, the memory is fixed at 8 MB and is not expandable.
Q4: Does the module support redundant operation?
A4: Yes, two PM511V08 modules can operate in hot-standby redundancy mode with automatic switchover in under 25 milliseconds.
Q5: How is the application program backed up?
A5: Application programs can be backed up using a flash PCMCIA card (DUAP), automatically loaded into RAM upon restart.
Q6: What kind of I/O communication is supported?
A6: It directly supports S100 I/O bus communication and can connect to S800 I/O via additional fieldbus interfaces.
Q7: How is system startup configured?
A7: Startup mode is selected via a rotary switch with options for AUTO, STOP, CLEAR, and OFFLINE.
Q8: How is time synchronization handled in the PM511V08?
A8: Time can be set manually or synchronized externally via a pulse signal connected to the TC520 module for precision synchronization across systems.
