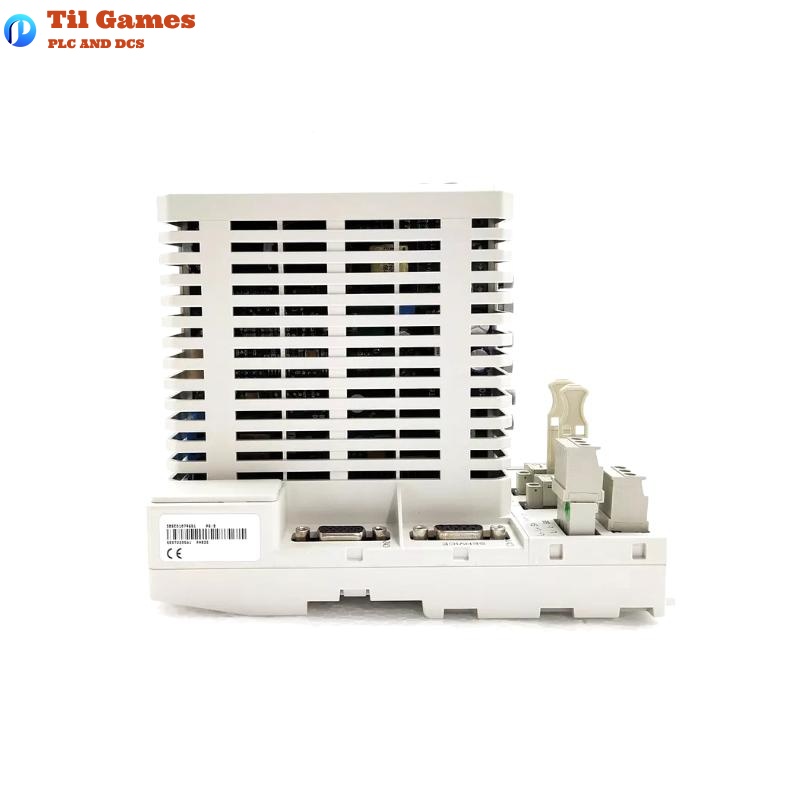

Technical Specifications

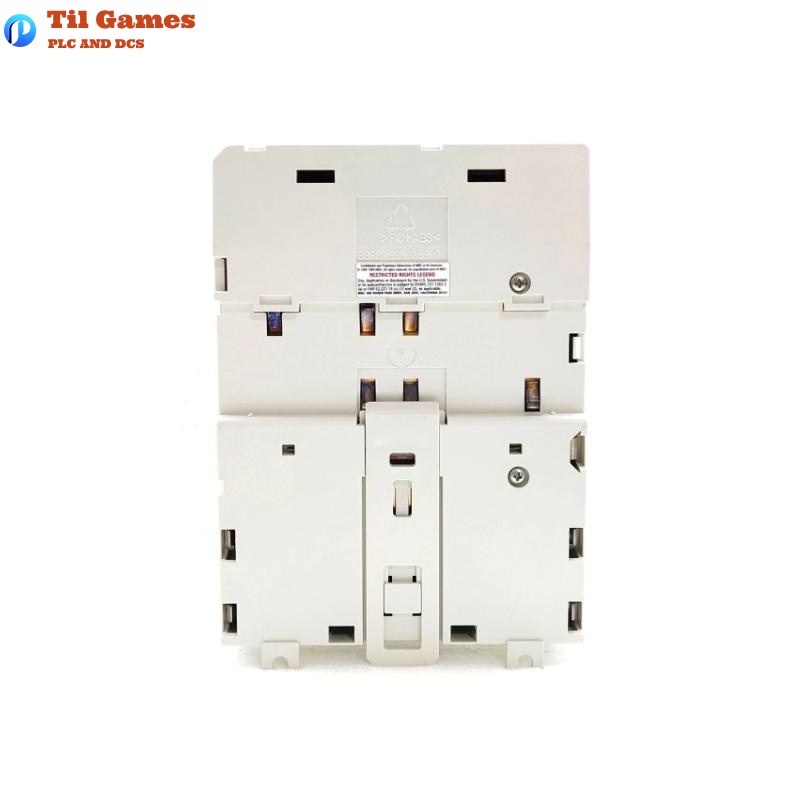

| Parameter | Description |
|---|---|
| Model | PM825 |
| Product Series | S800 I/O |
| Microprocessor | Motorola MC68360, 25 MHz, 16-bit mode |
| System Flash Memory | 1024 KB (256k x 32-bit) |
| User Flash Memory | 512 KB (256k x 16-bit) |
| RAM (System/User) | 1024 KB (512k x 16-bit) |
| I/O Compatibility | Supports both electrical and optical S800 I/O |
| Communication Interfaces | RS-232, RS-485, Optical DDCS, AF100, Modbus |
| Max I/O Modules | 24 modules (12 electrical, 12 optical) |
| Operating Voltage | 24 VDC (range: 19.2 – 30 VDC) |
| Power Consumption | Max 415 mA @ 24 VDC |
| Mounting Method | DIN rail (DIN 50022) |
| Dimensions | 225 x 108 x 135 mm |
| Weight | 1 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: What communication protocols does PM825 support?
A1: It supports Modbus, RS-232, RS-485, DDCS, AF100, and DriveBus protocols.
Q2: How many I/O modules can PM825 manage?
A2: It supports up to 24 I/O modules (12 electrical and 12 optical).
Q3: How is power supplied to the PM825?
A3: The module requires 24V DC (19.2–30V) and supports redundant power supply inputs.
Q4: What is the main processor used in PM825?
A4: It uses a Motorola MC68360 processor operating at 25 MHz in 16-bit mode.
Q5: Is hot swapping supported?
A5: No, hot swapping is not supported. Power must be turned off before installation or removal.
Q6: What do the LED indicators signify during startup?

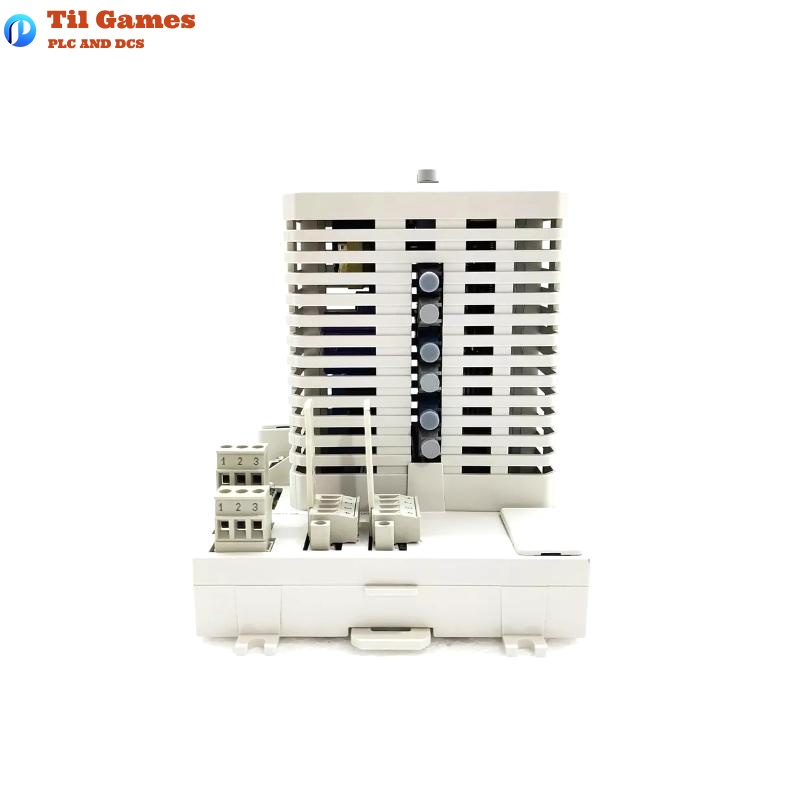

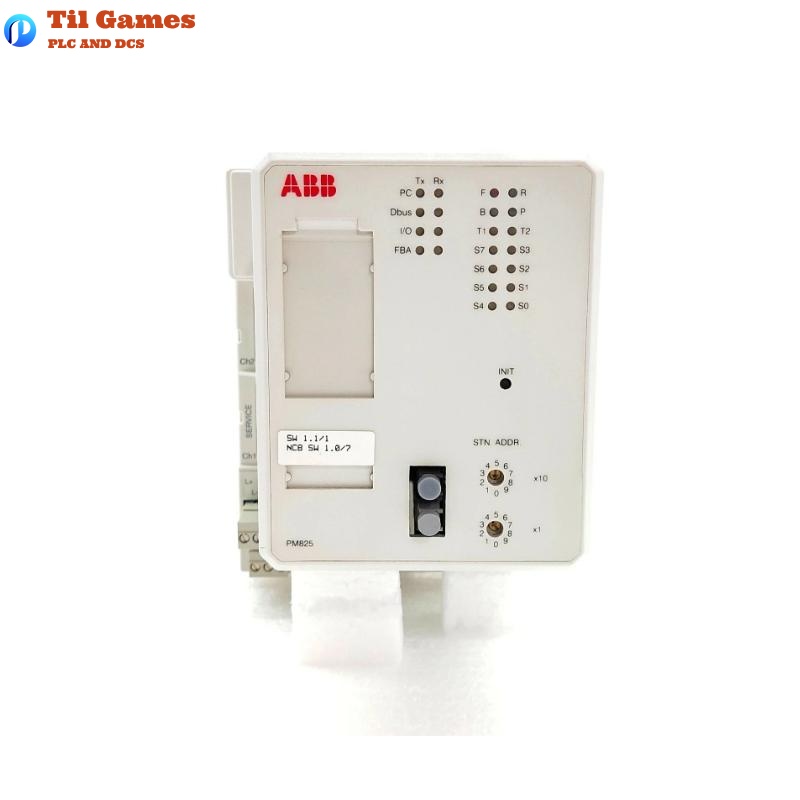

A6: Green “P” indicates power OK, green “R” indicates the system is running, red “F” indicates a fault.
Q7: Is PM825 compatible with legacy controllers?
A7: Yes, it maintains compatibility with APC2 function block libraries.
Q8: Are there any additional accessories required for installation?
A8: Depending on configuration, you may need TB810/811 optical ports, TB820 modems, or redundant power modules.
