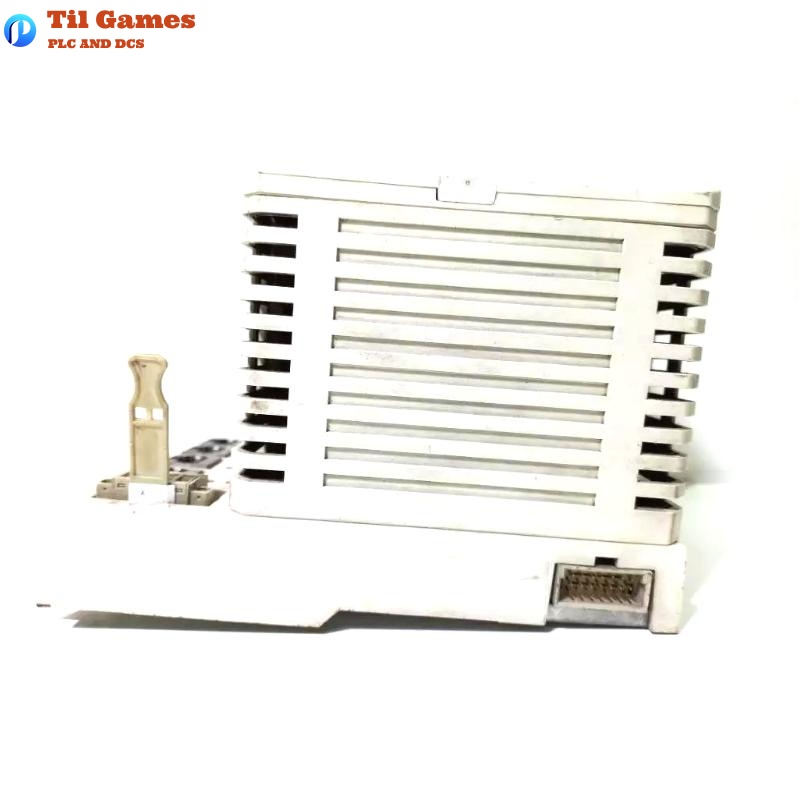

Technical Specifications
| Parameter | Description |
|---|---|
| Model | PM856 |
| Part Number | 3BSE018128R1 |
| Controller Platform | AC 800M |
| Processor Type | MPC860 series, up to 133 MHz |
| Memory | RAM + Flash for firmware and application |

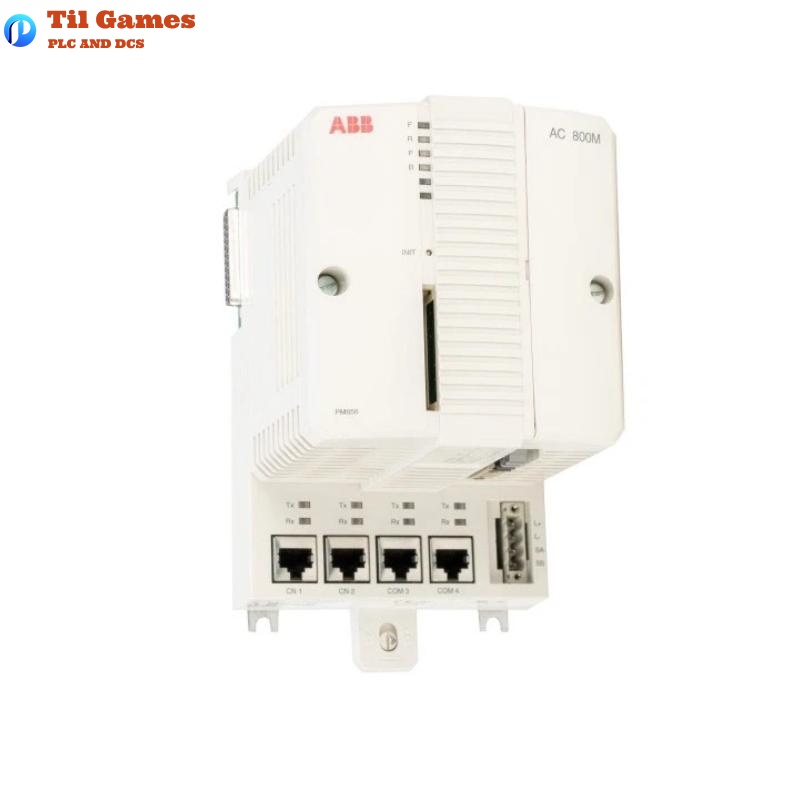

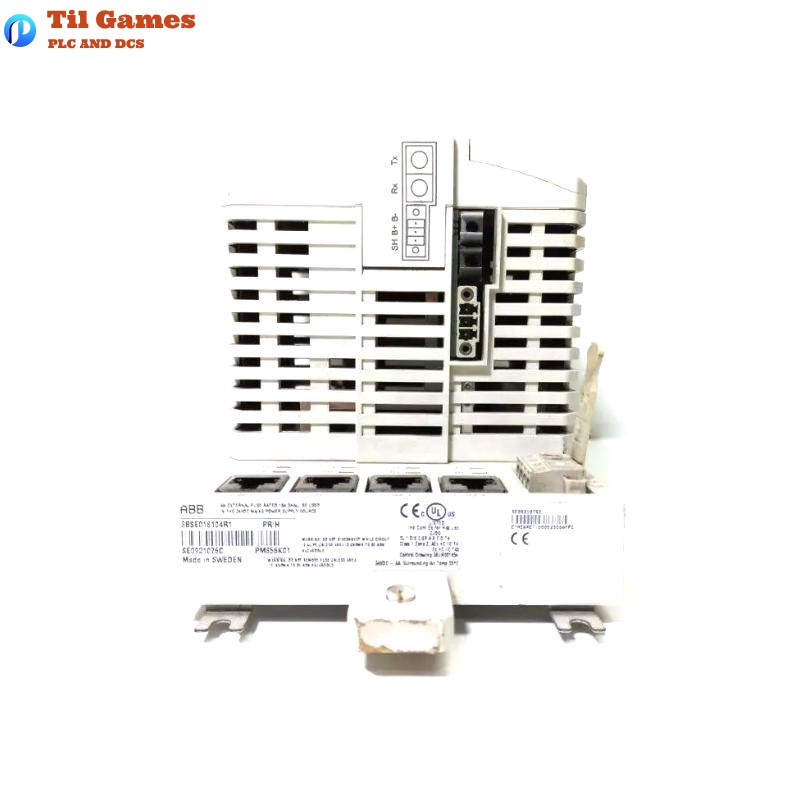

| Communication Ports | 2 × RJ45 Ethernet (CN1, CN2) 2 × Serial Ports (COM3, COM4) |
| Ethernet Communication | Dual redundant ports (CN1 and CN2) |
| Serial Interfaces | COM3 (RS-232C), COM4 (isolated configuration port) |
| Electrical ModuleBus | Supports up to 12 I/O modules |
| Optical ModuleBus | Supports 7 clusters × 12 modules = 96 modules total |
| CEX-Bus Expansion | For communication interface expansion, supports redundancy |
| Storage Card | CompactFlash slot |
| Power Input | 24V DC (L+, L-) |
| Power Supervision Signals | SA, SB |
| Internal Battery | Supported for RAM and RTC backup |
| External Battery Support | Supports SB821/SB822 |
| Redundancy Support | CPU redundancy via TK851 RCU Link cable |
| Dimensions | 119 mm × 186 mm × 135 mm |
| Weight | 1.1 kg |
| Mounting | DIN rail installation |
| Protection Class | IP20 (external enclosure required for higher IP rating) |
FAQ
Frequently Asked Questions (FAQ)
Q1: Does PM856 support CPU redundancy?
A1: Yes. PM856 supports hot-standby redundancy with another CPU using RCU Link cable (TK851), with switch-over in less than 10 ms.
Q2: What communication ports are available on PM856?
A2: It provides 2 Ethernet ports (CN1, CN2) and 2 serial ports: COM3 (RS-232C) and COM4 for configuration.
Q3: What I/O connection options are supported by PM856?
A3: It supports S800 I/O via electrical ModuleBus and optical ModuleBus, and communication expansion via CEX-Bus.
Q4: How is PM856 powered?
A4: Powered by 24V DC. ABB SD83x series power supplies are recommended, with SA and SB signals for redundancy supervision.
Q5: Can PM856 be replaced during system operation?
A5: Yes, in redundant configurations, the faulty CPU can be replaced without system downtime.
Q6: Does PM856 support external storage?
A6: Yes. It supports CompactFlash memory card for application and data storage.
Q7: Is an internal battery included in PM856?
A7: Yes. It includes an internal battery for maintaining RAM and real-time clock during power loss.
Q8: Are redundant communication interfaces supported?
A8: Yes. Redundant communication modules can be added via CEX-Bus for high availability.
