Technical Specifications
| Parameter | Description |
|---|---|

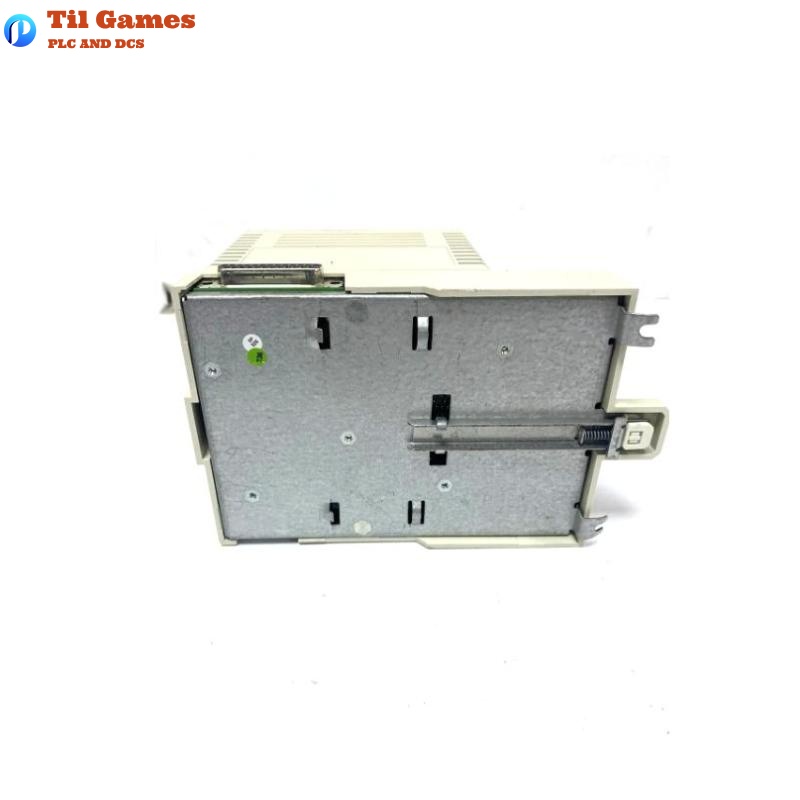

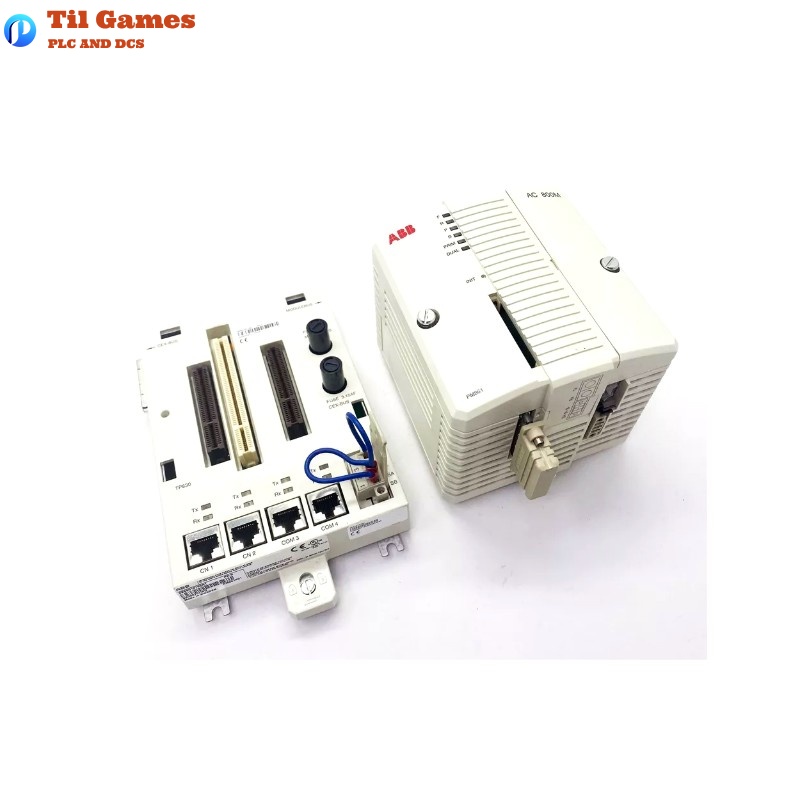

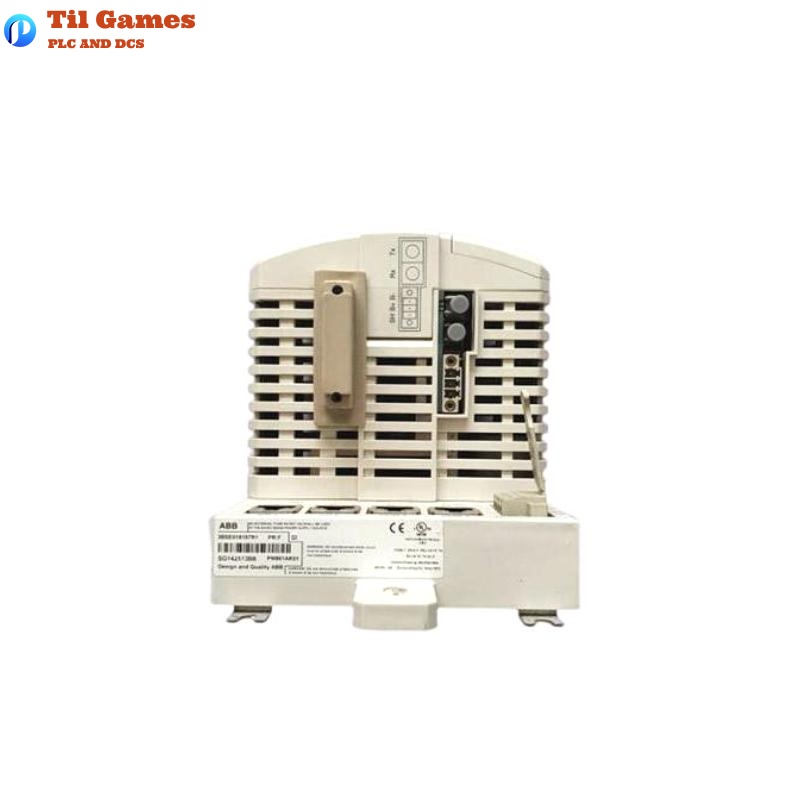

| Model | PM861 |
| Order Code | 3BSE018129R1 |
| Platform | ABB AC 800M Controller |
| CPU | PowerPC MPC860, 133 MHz |
| Memory | 32 MB RAM, 16 MB Flash |
| Backup Media | CompactFlash slot |
| Ethernet Ports | 2 x RJ45 ports (CN1, CN2) |
| Serial Ports | 2 x RJ45 ports (COM3 RS-232C, COM4 for config) |
| Module Bus | Supports electrical and optical ModuleBus |
| Expansion Bus | CEX-Bus (for communication modules) |
| Redundancy | CPU, Ethernet, and communication redundancy |
| Power Supply | 24 VDC (via TP830 base plate) |
| Real-Time Clock | Built-in RTC with internal battery backup |
| External Battery | Supports SB821/SB822 battery units |
| Mounting | DIN rail mounting |
| Protection Class | IP20 |
| Dimensions | 119 x 186 x 135 mm |
| Weight | 1.1 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: Does PM861 support redundancy?
A1: Yes, it supports CPU redundancy (hot-standby), Ethernet redundancy, and communication interface redundancy.
Q2: What types of I/O modules can PM861 connect to?
A2: It supports S800 I/O via optical ModuleBus, and S100/S900 I/O through CEX communication modules.
Q3: Can PM861 be used for SIL applications?
A3: PM861 alone does not support SIL3. SIL applications require the addition of safety modules like SM810/SM811.
Q4: Is there a backup storage slot in PM861?
A4: Yes, it has a CompactFlash slot for firmware, configuration, and application storage.
Q5: What are COM3 and COM4 ports used for?
A5: COM3 is for RS-232 communication (e.g., Modbus), and COM4 is for tool connection and configuration.
Q6: How can PM861 connect to remote I/O?
A6: Through communication modules like CI854 (PROFIBUS), CI865 (Satt I/O), CI862 (TRIO I/O), etc.
Q7: What power supply does PM861 require?
A7: It requires 24 VDC, supplied through the TP830 base plate and supports power supervision signals (SA/SB).
Q8: What happens if the primary processor fails?
A8: In redundant mode, it automatically switches to the backup CPU within 10 ms, maintaining output states.
