Technical Specifications
| Parameter Category | Technical Details |
|---|---|

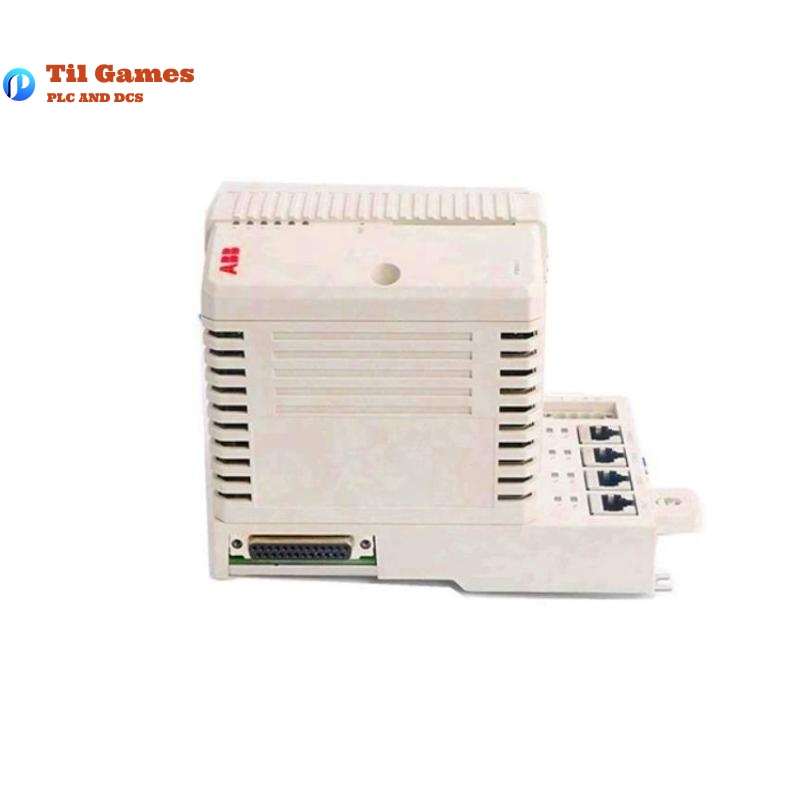

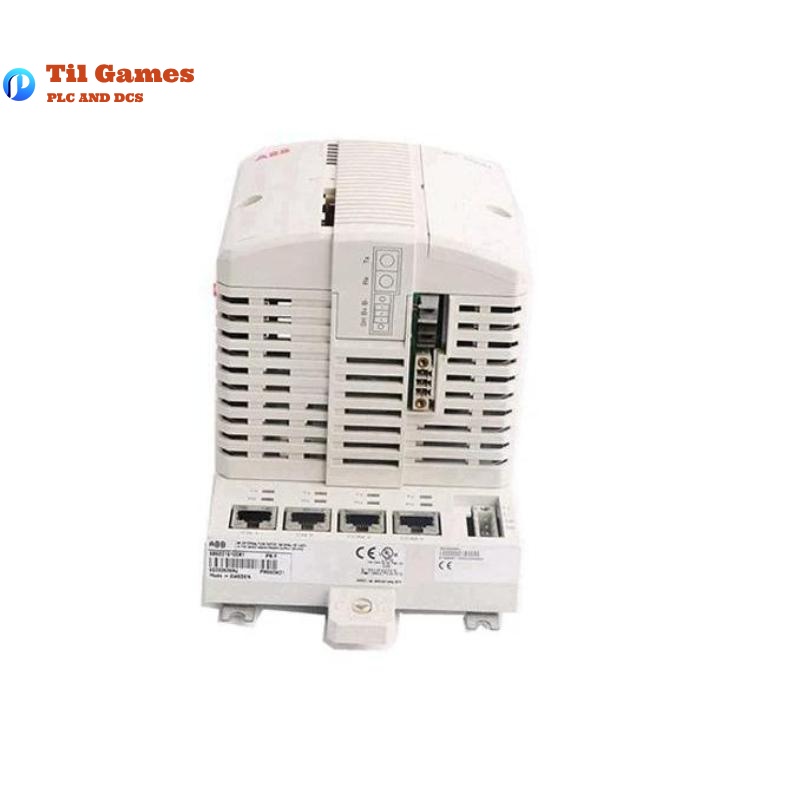

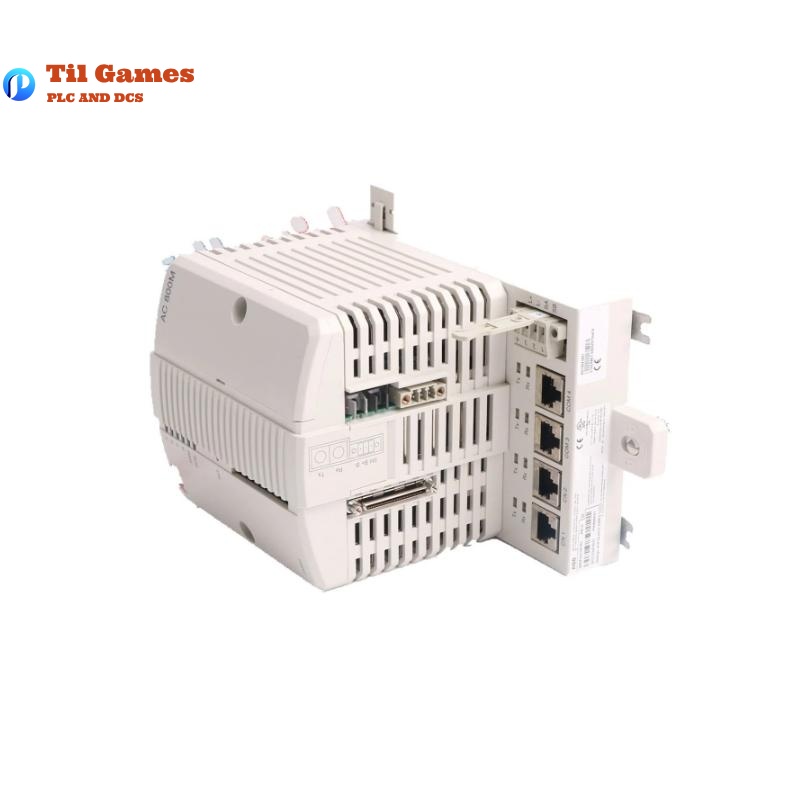

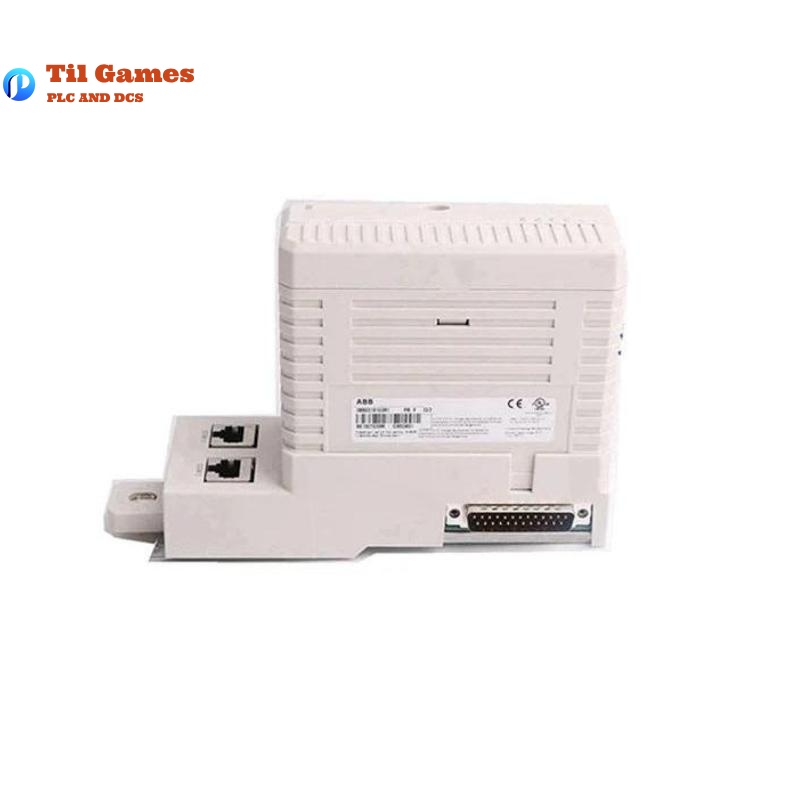

| Product Model | ABB PM863K01 (Order Code: 3BSE088381R1) |
| Processor Type | MPC866 |
| Clock Frequency | 96 MHz |
| Performance | 1000 Boolean operations: 0.17 ms |
| Memory | RAM: 32 MB (22.184 MB available for applications) |
| Firmware Storage | Flash PROM: 18 MB |
| Power Supply | 24 V DC (Range: 19.2–30 V DC) |
| Power Consumption | 210 mA (typical) / 360 mA (max); 5.1 W (max 8.6 W) |
| Redundancy | CPU Redundancy supported (optional configuration) |
| Communication Ports | 2 x Ethernet (RJ45); 2 x Serial (COM3 RS232C, COM4 opto-isolated) |
| Supported Protocols | MMS, IAC |
| Recommended Network | 100 Mbit/s Switched Ethernet |
| Real-Time Clock Stability | 100 ppm (approx. 1 h/year) |
| Event Queue | Up to 3000 events per OPC client |
| OPC Data Transfer Rate | 36–86 events/sec, 113–143 data messages/sec |
| Comm. Modules on CEX Bus | Max 12 |
| CEX Bus Supply Current | Max 2.4 A |
| Modulebus I/O Capacity | Max 96 (single PM863) / 84 (redundant PM863) modules |
| Modulebus Scan Rate | 0–100 ms (depending on I/O count) |
| Modulebus Output Current | 24 V: max 1.0 A; 5 V: max 1.5 A |
| Operating Temperature | +5 to +55°C |
| Storage Temperature | -40 to +70°C |
| Humidity Range | 5–95%, non-condensing |
| Vibration Resistance | Complies with IEC/EN 61131-2 |
| Protection Class | IP20 (IEC 60529) |
| Altitude | ≤ 2000 m |
| Electrical Safety | EN 50178, IEC 61131-2, UL 61010-1/2-201 |
| Hazardous Area Approval | cULus Class 1 Zone 2, AEx nA IIC T4, ExnA IIC T4Gc X |
| Marine Approvals | ABS, BV, DNV-GL (LR pending) |
| Dimensions (W × H × D) | 119 × 186 × 135 mm |
| Weight | 1.2 kg |
FAQ
Frequently Asked Questions (FAQ)
Q1: Does the PM863K01 support redundancy?
A1: Yes, it supports CPU redundancy when used with SM812, enabling high integrity configurations.
Q2: What is the operating temperature range?
A2: The operating range is +5°C to +55°C; storage range is -40°C to +70°C.
Q3: What processor does the controller use?
A3: It uses the MPC866 microprocessor with a 96 MHz clock.
Q4: How many applications can be run per controller?
A4: Up to 32 applications per controller, each with 64 programs and 128 diagrams.
Q5: Is the unit SIL certified?
A5: Yes, when combined with SM812, it meets SIL 2 and SIL 3 certification requirements.
Q6: Is the controller vibration-resistant?
A6: Yes, it meets IEC/EN 61131-2 vibration resistance standards.
Q7: How is clock synchronization achieved?
A7: Synchronization is done via CNCP protocol with 1 ms accuracy between controllers.
Q8: What communication protocols are supported?
A8: The controller supports MMS and IAC for manufacturing and inter-application communication.
