Technical Specifications
| Parameter | Description |
|---|---|

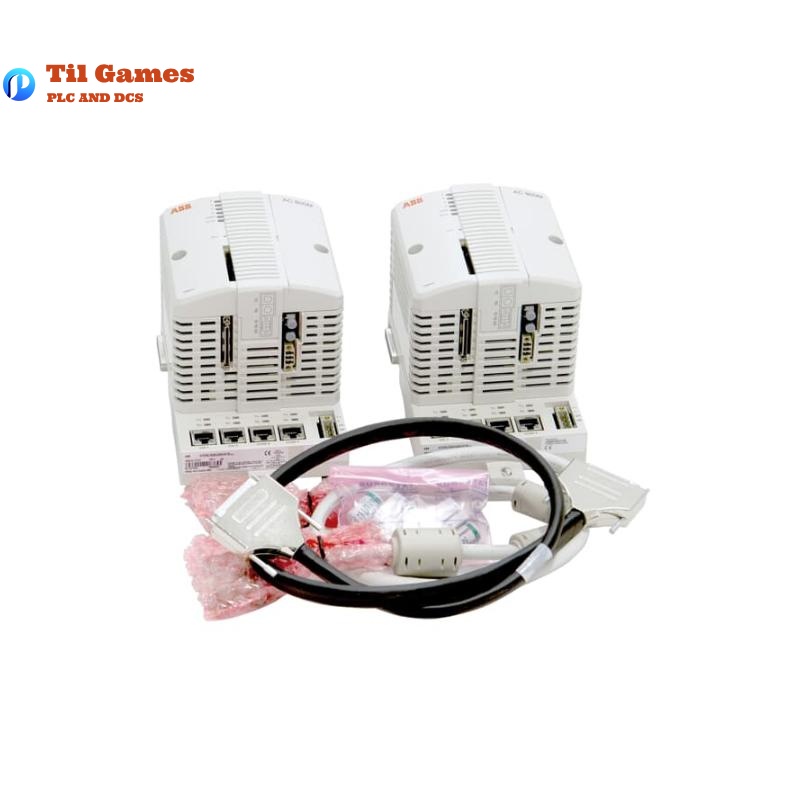

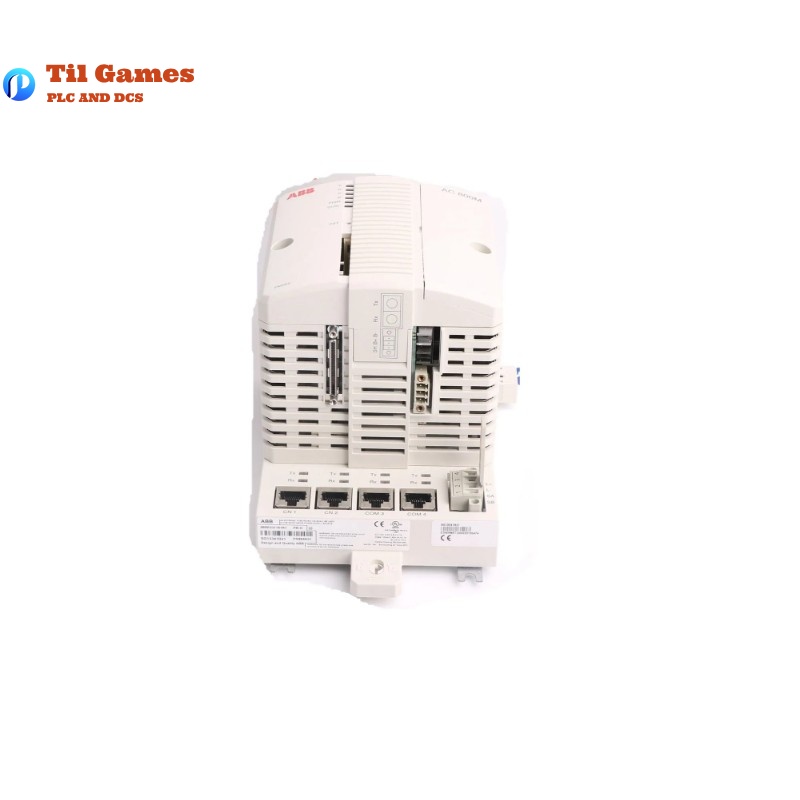

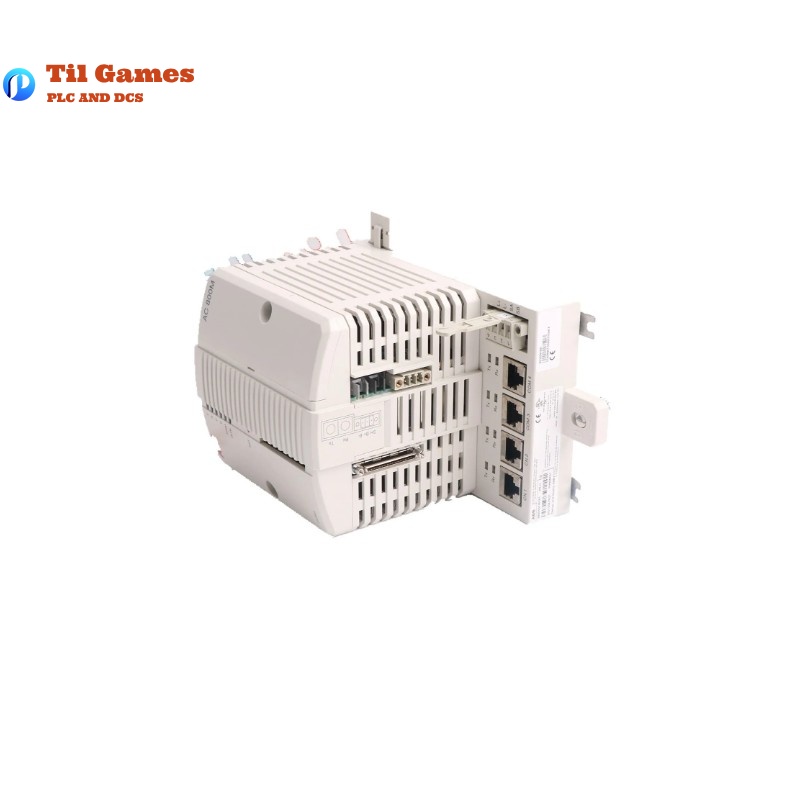

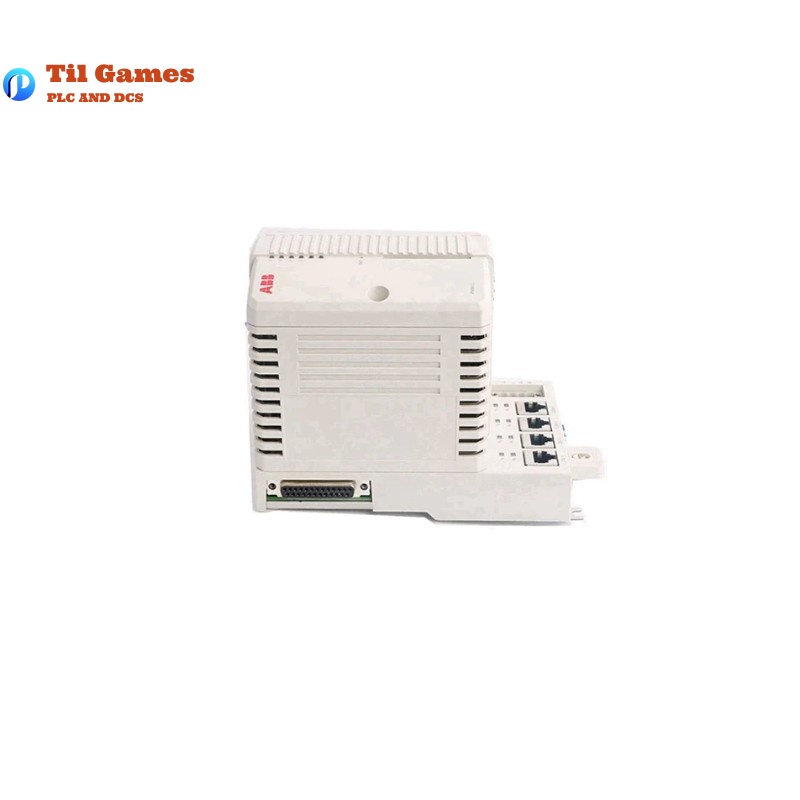

| Product Model | PM863K02 |
| Article Number | 3BSE088382R1 |
| Processor Type | MPC866 |
| Clock Frequency | 96 MHz |
| Total Memory | 32 MB |
| Available RAM for Apps | 22.184 MB |
| Firmware Flash PROM | 18 MB |
| Redundancy Support | Yes |
| High Integrity (SIL 3) | Achieved via SM812 module |
| Max Applications | 32 |
| Programs per Application | 64 |
| Diagrams per Application | 128 |
| Control Cycle Time | 10 ms minimum |
| CEX Bus Modules | Up to 12 |
| Modulebus I/O Capacity | Max 96 (single), 84 (redundant) modules |
| Power Supply | 24 V DC (19.2–30 V DC range) |
| Power Consumption | 5.1 W typical / 8.6 W max |
| Current Consumption | 210 mA typical / 360 mA max |
| Clock Synchronization | 1 ms precision via CNCP protocol |
| Ethernet Interface | 2 × RJ-45, 10 Mbps, IEEE 802.3 |
| Serial Ports | COM3: RS-232C, COM4: Isolated RS-232C |
| Operating Temperature | +5 to +55 °C |
| Storage Temperature | -40 to +70 °C |
| Relative Humidity | 5% to 95%, non-condensing |
| Protection Class | IP20 |
| Altitude | Up to 2000 meters |
| Dimensions (W × H × D) | 135 × 186 × 238 mm |
| Weight | 2.4 kg |
| Certifications | SIL 2 / SIL 3 (TÜV), CE, cULus Zone 2, ISA Secure, RoHS, WEEE etc. |
FAQ
Frequently Asked Questions (FAQ)
Q1: Does PM863K02 support controller redundancy?
A1: Yes, PM863K02 supports redundancy for the CPU, CEX bus, and communication interfaces.
Q2: How many applications and programs can the unit support?
A2: It supports up to 32 applications, each with up to 64 programs and 128 diagrams.
Q3: What is the operating temperature range?
A3: The operating temperature range is from +5°C to +55°C.
Q4: Is PM863K02 SIL3 certified?
A4: Yes, it is TÜV certified for SIL3 when used with the SM812 module and correct software.
Q5: What type of Ethernet interface does it use?
A5: It features two RJ-45 ports compliant with IEEE 802.3, supporting 10 Mbps speed.
Q6: Does PM863K02 include a real-time clock?
A6: Yes, it includes a real-time clock with 1 ms synchronization precision.
Q7: What communication protocols are supported?
A7: It supports MMS (Manufacturing Message Service) and IAC (Inter Application Communication) protocols.
Q8: What are the dimensions and weight of the controller?
A8: The dimensions are 135 × 186 × 238 mm and the weight is 2.4 kg.
