Technical Specifications
| Parameter | Value |
|---|---|

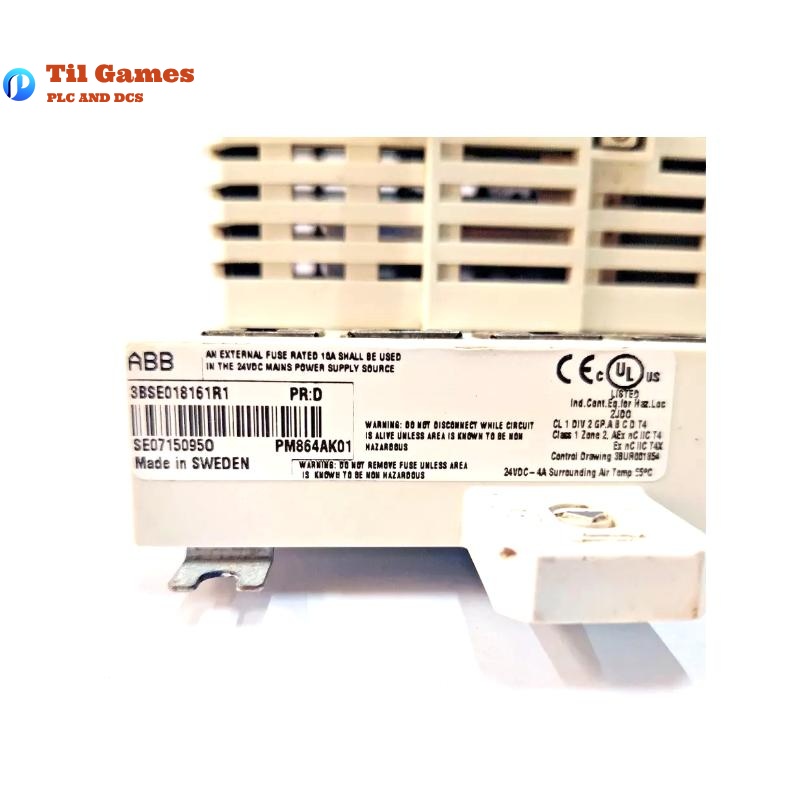

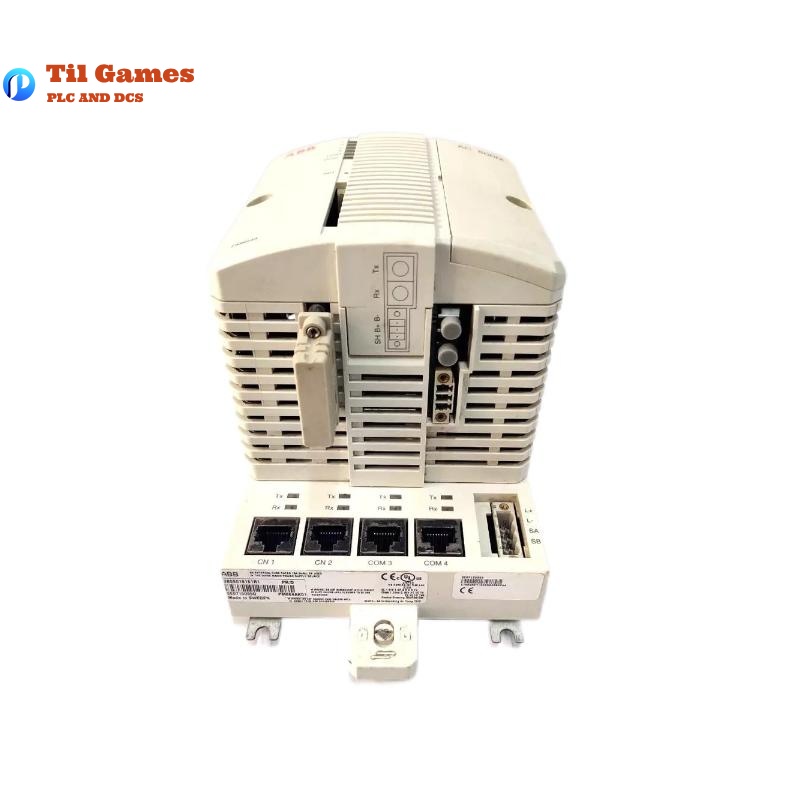

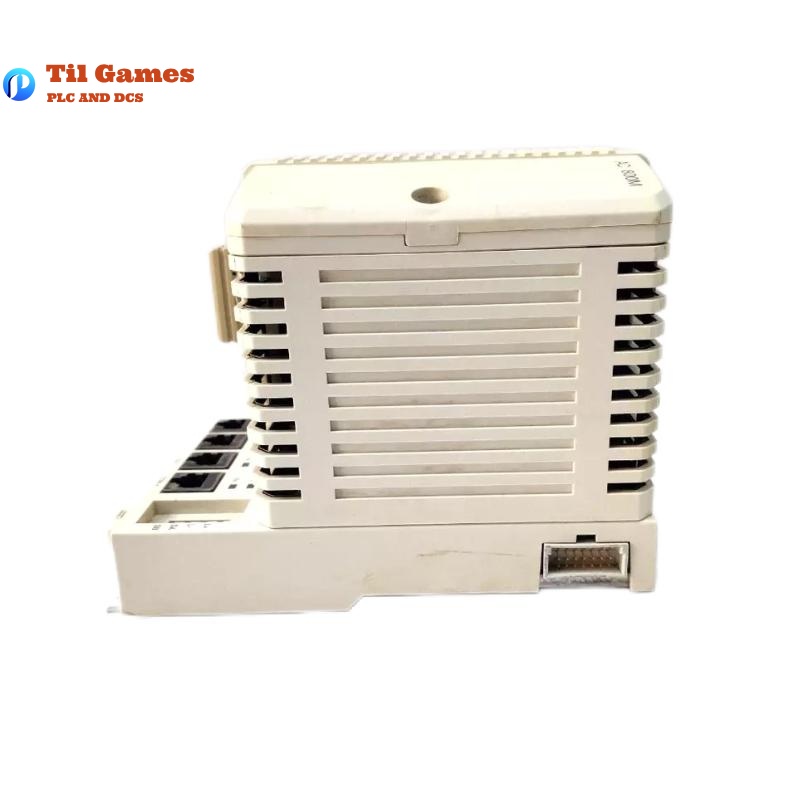

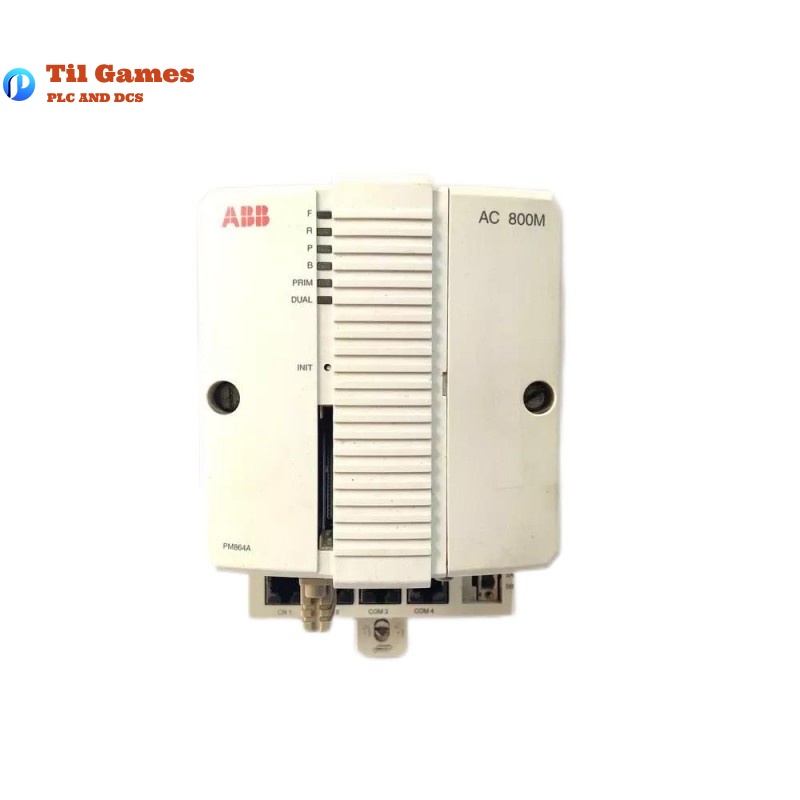

| Model Number | PM864AK01 |
| Article Number | 3BSE018161R1 |
| Processor Type | MPC862 |
| Clock Frequency | 96 MHz |
| Application RAM | 23.522 MB |
| Total RAM | 32 MB |
| Flash PROM for Firmware | 2 MB |
| Power Supply | 24 V DC (19.2–30 V DC) |
| Power Consumption (Typ./Max.) | 287 mA / 487 mA |
| Power Dissipation | 6.9 W (typical), 11.4 W (max) |
| Redundancy Support | Yes |
| Switch-over Time (Redundant Config.) | Max 10 ms |
| Ethernet Ports | 2 × RJ-45 (10 Mbit/s IEEE 802.3) |
| Serial Ports | COM3 (RS-232C with modem), COM4 (RS-232C opto-isolated) |
| Control Network Protocol | MMS, IAC |
| Max Applications per Controller | 32 |
| Max Programs per Application | 64 |
| Max Diagrams per Application | 128 |
| I/O Capacity | Max 96 (single), 84 (redundant) modules |
| Modulebus Scan Rate | 0–100 ms |
| Event Queue per OPC Client | Up to 3000 |
| OPC Transmission Speed | 36–86 events/sec, 113–143 data messages/sec |
| Operating Temperature | +5°C to +55°C |
| Storage Temperature | –40°C to +70°C |
| Relative Humidity | 5–95% non-condensing |
| Vibration Resistance | IEC/EN 61131-2 |
| Rated Isolation Voltage | 500 V AC |
| Dielectric Strength | 50 V |
| EMC Compliance | EN 61000-6-2, EN 61000-6-4 |
| Electrical Safety | EN 50178, IEC 61131-2, UL 508 |
| Marine Certifications | ABS, BV, DNV-GL, LR |
| Protection Class | IP20 |
| Mounting | DIN Rail |
| Dimensions (W × H × D) | 196 × 119 × 135 mm |
| Weight | 1.2 kg |
FAQ
FAQ – Frequently Asked Questions
Q1: What is the CPU model used in the PM864AK01?
A1: The PM864AK01 uses the MPC862 microprocessor.
Q2: Does the PM864AK01 support redundancy?
A2: Yes, it supports CPU, communication, and CEX-Bus redundancy.
Q3: What are the communication ports available?
A3: Two Ethernet ports (RJ45) and two RS-232C serial ports (COM3 and COM4).
Q4: What is the operating voltage range?
A4: The module operates at 24 V DC, with a range of 19.2 to 30 V DC.
Q5: What is the maximum number of I/O modules supported?
A5: Up to 96 modules for a single CPU or 84 modules for redundant configuration.
Q6: What environmental standards does it comply with?
A6: It complies with IEC/EN 61131-2, EN 61000-6-2, and EN 61000-6-4 standards.
Q7: Can it be used in marine applications?
A7: Yes, it is certified by ABS, BV, DNV-GL, and LR.
Q8: What is the physical size and weight of the unit?
A8: Dimensions are 196 × 119 × 135 mm and it weighs approximately 1.2 kg.
